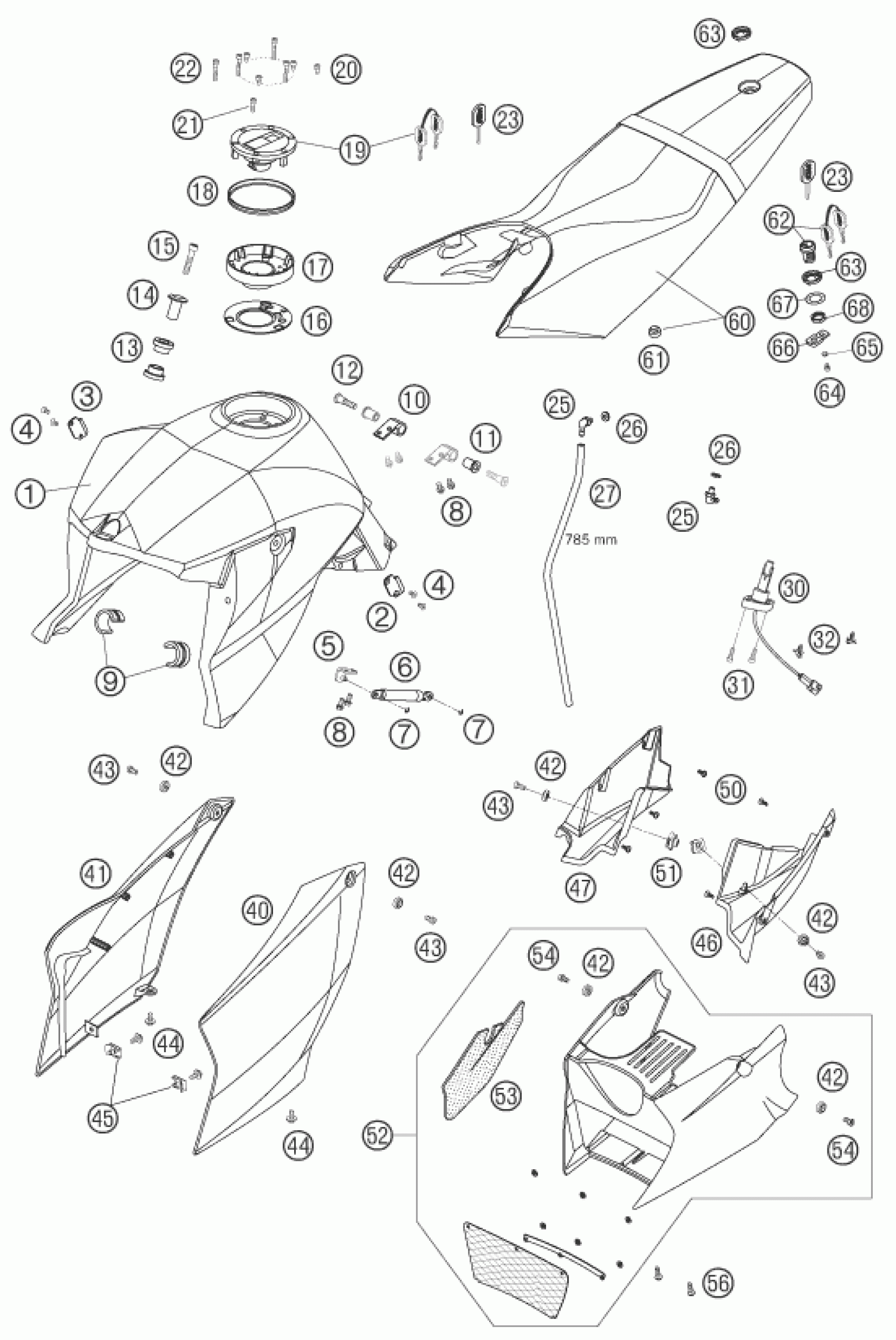

KTM 990 SUPERDUKE BLACK 2006 TANK, SEAT Diagram

#

Description

Price

4

Flat head screw DIN7991 M5X10

0991050102

Unavailable

5

MOUNTING BRACKET CPL. 05

61007034000

Unavailable

2

BRACKET SEAT L/S 05

61007041000

Unavailable

8

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

9

SPACER FUEL TANK 05

61007014000

Unavailable

10

BRACKET FUEL TANK 05

61007025000

Unavailable

11

RUBBER BEARING FUEL TANK 05

61007027000

Unavailable

3

BRACKET SEAT R/S 05

61007042000

Unavailable

16

SEAL. FLANGE F.TANK INSERT 03

60007008051

Unavailable

17

TANK INSERT 05

60007008150

Unavailable

18

SEAL. RING F. TANK INSERT 03

60007008052

Unavailable

19

TANK PLUG CPL. 05

61007008000

Unavailable

20

SHCS DIN 912 M5x8

0912050083

Unavailable

21

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

22

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

23

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

25

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

Unavailable

26

GASKET FOR CONNECTING PIECE 03

60007024050

Unavailable

27

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

30

GAS-LEVEL SENSOR 06

61007080000

Unavailable

31

AH collar screw DIN 912 M5x16

0912050163

Unavailable

32

CABLE TIE WITH PLUG M6

61011094000

Unavailable

61

DISTANCE RUBBER SEAT 05

61007040010

Unavailable

62

SEAT LOCK 05

61007050000

Unavailable

40

SPOILER L/S BLACK 05

6100805000030A

Unavailable

41

SPOILER R/S BLACK 05

6100805100030A

Unavailable

42

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

43

AH SCREW DIN6912 M6X12

0012060123

Unavailable

44

HH COLLAR SCREW M 6X13 WS=8

0014060133

Unavailable

45

clip nut M6

54603048100

Unavailable

46

AIR INTAKE L/S 05

61008050050

Unavailable

47

AIR INTAKE L/S 05

61008051050

Unavailable

50

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

51

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

52

FRONT SPOILER CPL. BLACK 05

6100802004430A

Unavailable

53

THERMAL PROTECTION FOIL 05

61008020050

Unavailable

54

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

56

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

60

SEAT BLACK 05

6100704000030

Unavailable

63

SPACER RING SEAT LOCK 05

61007052000

Unavailable

64

SCREW M4 AF32 05

61007050020

Unavailable

65

WASHER AF150 05

61007050010

Unavailable

66

CLOSING PANEL TR248 05

61007050040

Unavailable

67

WASHER TR12.01 05

61007050050

Unavailable

68

NUT M19 X1 AF36 05

61007050030

Unavailable

6

GAS-PRESSURE DAMPER 300N 05

61007035000

Unavailable

7

TAB WASHER DIN 6799-RS 4,0 A2

0799040003

Unavailable

1

FUEL TANK BLACK MATT 06

6100701310033A

Unavailable

12

SPECIAL SCREW M10X36 AH 05

61007026000

Unavailable

13

collar bushing, front tank hol

61007065000

Unavailable

14

collar bushing, bearing, outsi

61007060000

Unavailable

15

AH collar screw DIN0912 M8x40

0912080403

Unavailable
