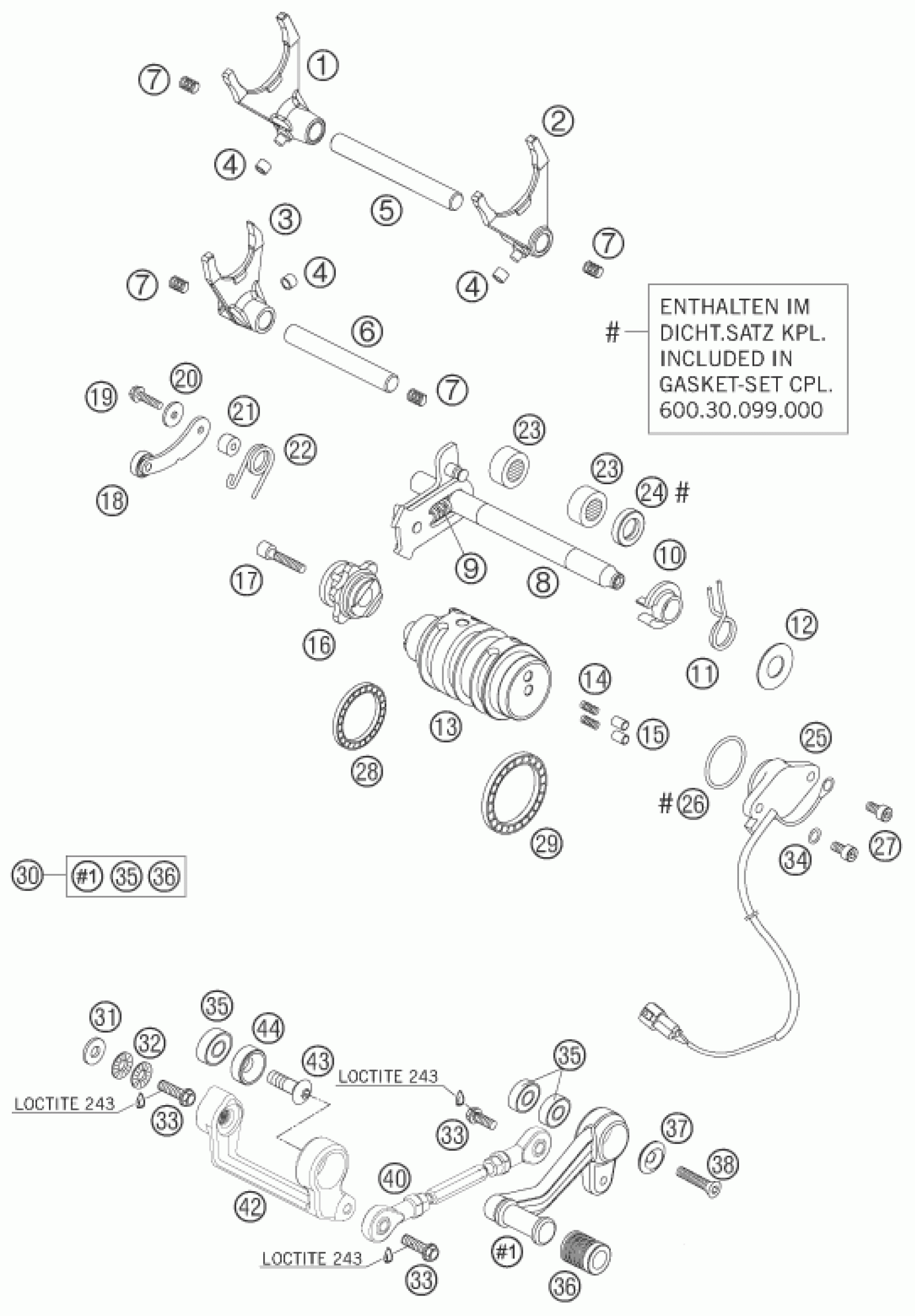

KTM 990 SUPERDUKE BLACK 2006 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT FORK 1-4 GEAR LC8 03

60034001000

Unavailable

2

SHIFT FORK 2-3 GEAR LC8 03

60034002000

Unavailable

3

SHIFT FORK 5-6 GEAR LC8 03

60034003000

Unavailable

4

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

5

SHIFT RAIL 11,8X105MM

59034020000

Unavailable

6

SHIFT RAIL 11,8X89MM

59034019000

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

Unavailable

8

SHIFT SHAFT CPL. 03

60034005044

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SPRING GUIDE

54634020000

Unavailable

11

RETURN SPRING 2,2MM '95

54634014100

Unavailable

12

STOP DISK 14X30X1

54634050000

Unavailable

13

SHIFT ROLLER CPL. 06

60034012300

Unavailable

14

CONTACT SPRING 03

60034014000

Unavailable

15

CONTACT BOLT 03

60034037000

Unavailable

16

SHIFT ARRESTING CPL. 03

60034015044

Unavailable

17

AH SCREW DIN6912 M 6X30

0984060302

Unavailable

18

ARRESTING LEVER CPL. 03

60034024044

Unavailable

19

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

20

WASHER DIN7349-5X15X2

0349000050

Unavailable

21

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

22

ARRESTING LEVER SPRING 03

60034023000

Unavailable

23

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

24

radial shaft seal 14x24x6 B

0760142460

Unavailable

25

GEAR-POSITION SENSOR 06

60011023100

Unavailable

34

WASHER DIN0125-A 5,3

0125050003

Unavailable

26

O-RING 27,5X2,5 NBR

0770275025

Unavailable

27

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

28

BALL BEARING 61805 C3

0625618050

Unavailable

29

GROOVED BALL BEARING 6808 JRC3

0625068080

Unavailable

30

SHIFT LEVER CPL. 05

61034031044

Unavailable

31

STEEL WASHER 6,4X17X3

50232050001

Unavailable

32

Pair of washers M6 NORDLOCK

50233041000

Unavailable

33

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

35

Grooved ball bearing 608 2RS C

0625006087

Unavailable

36

RUBBER FOR SHIFT LEVER 05

61034035000

Unavailable

37

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

Unavailable

38

FLAT HEAD SCREW M8X32 SL 05

61013059000

Unavailable

40

SHIFT ROD CPL. 05

61034036044

Unavailable

42

RELAY LEVER SELECTOR SHAFT 05

61034030000

Unavailable

43

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

44

WASHER COUNT. 8,5X21X7,804

61034030050

Unavailable
