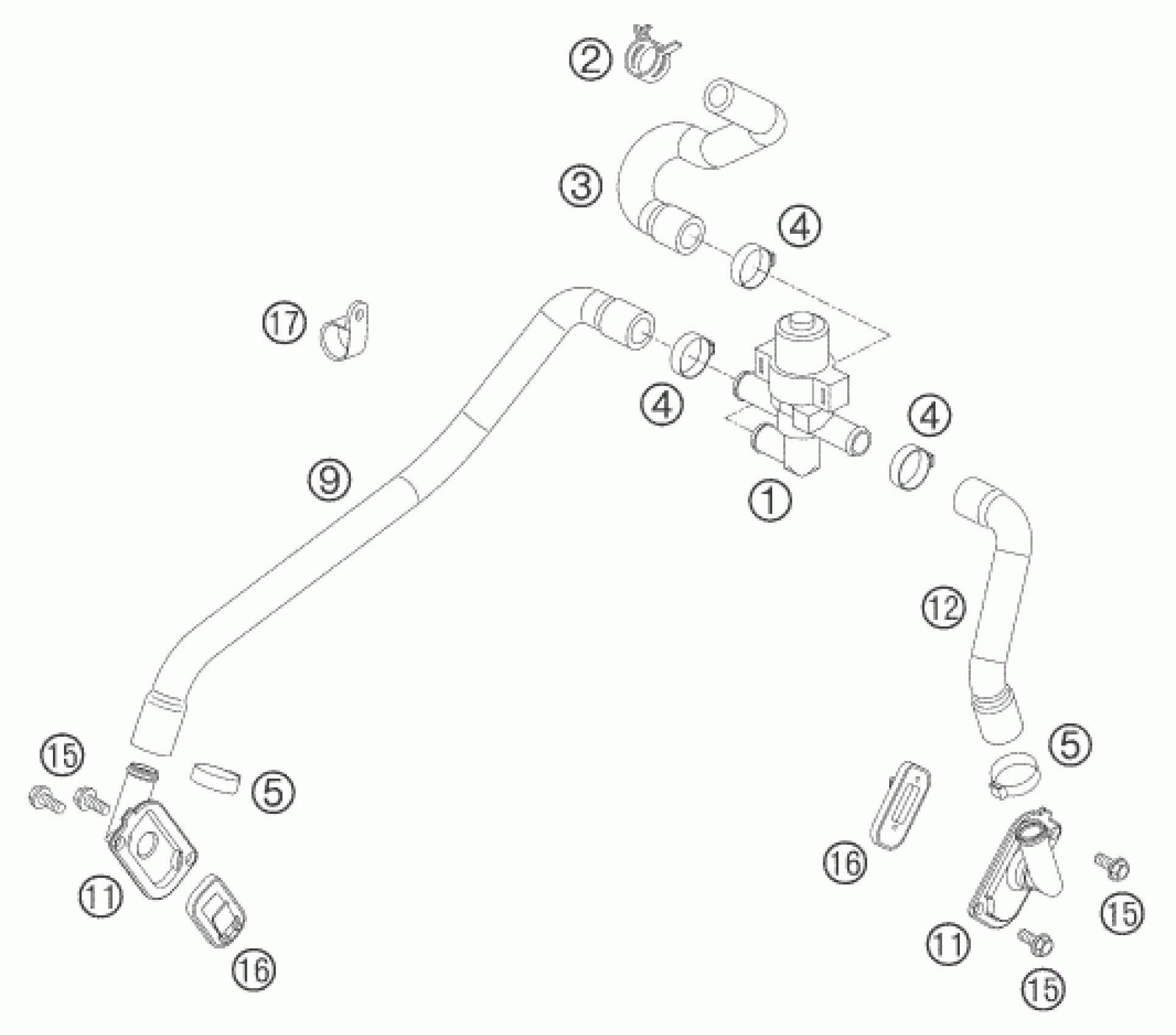

KTM 990 SUPERDUKE BLACK 2006 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

1

CONTROL VALVE SAS 05

61005026000

$132.76

2

CLAMP STD DN19

00049190121

$2.05

3

SAS HOSE AIRBOX 05

61005035023

$18.50

4

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

5

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

$2.05

9

SAS HOSE CYLINDER FRONT 05

61005035021

$32.04

11

SAS FLANGE 03

60005022000

Unavailable

12

SAS HOSE CYLINDER REAR 05

61005035022

$23.07

15

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

16

SAS Reed Valve

60005026000

$21.50

17

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable
