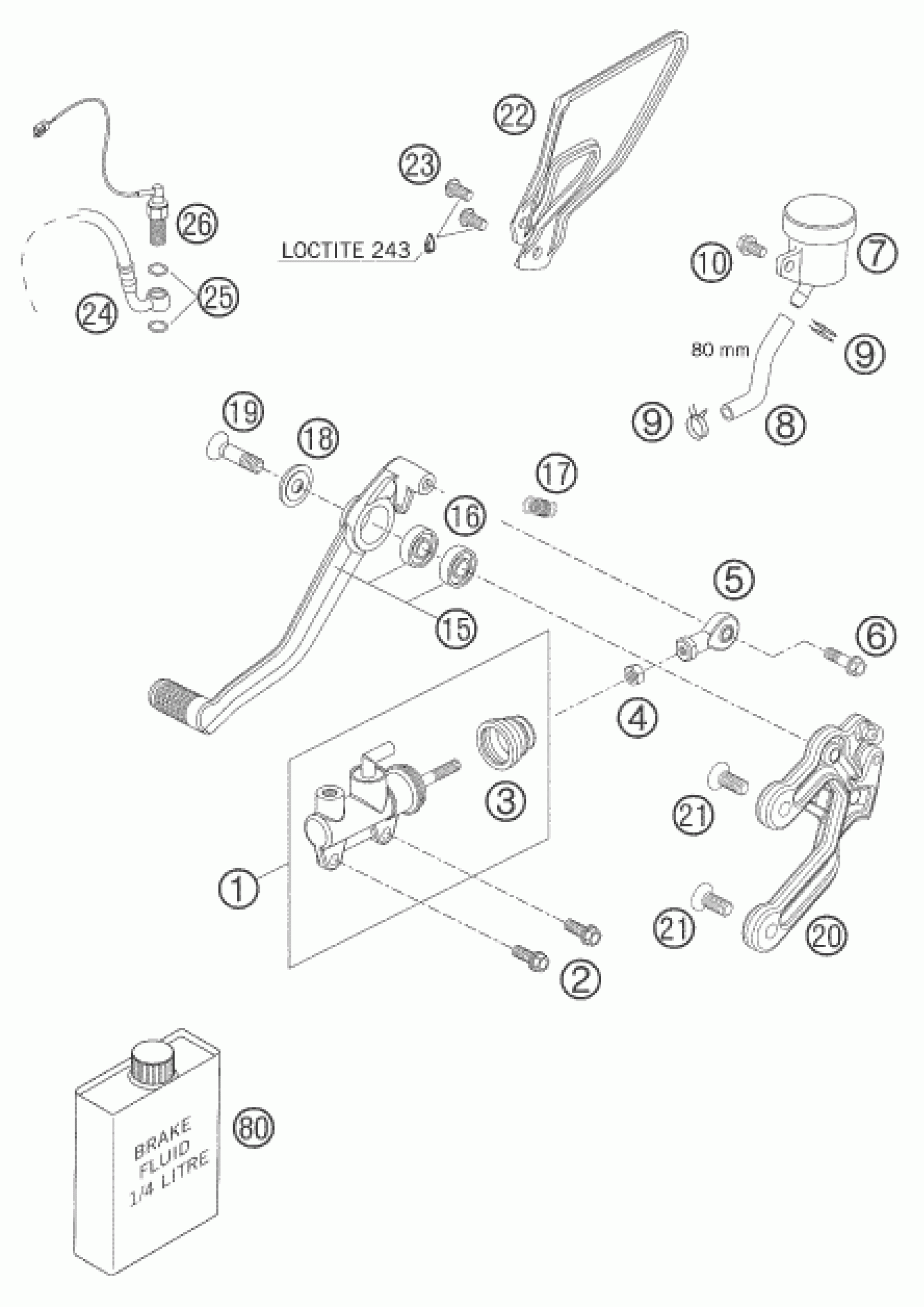

KTM 990 SUPERDUKE BLACK 2006 REAR BRAKE CONTROL Diagram

#

Description

Price

1

MAIN BRAKE CYLINDER 05

61013060000

Unavailable

2

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

3

CUP FOR MAIN BRAKE CYLINDER

61013064000

Unavailable

4

Hex. nut DIN 934 M6

0934060003

Unavailable

5

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

6

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

7

reservoir, rear cpl.

61013069000

Unavailable

8

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

9

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

10

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

15

FOOT BRAKE LEVER CPL. 05

61013050044

Unavailable

16

Grooved ball bearing 608 2RS C

0625006087

Unavailable

17

SPRING FOOT BRAKE LEVER 05

61013052000

Unavailable

18

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

Unavailable

19

FLAT HEAD SCREW M8X32 SL 05

61013059000

Unavailable

20

FOOTREST BRACKET FRONT R/S 05

61003039000

Unavailable

21

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

22

COVER PLATE R/S 05

61013032000

Unavailable

23

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

24

BRAKE PIPE REAR 05

61013072000

Unavailable

25

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

26

BRAKE LIGHT SWITCH REAR 05

61011051000

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
