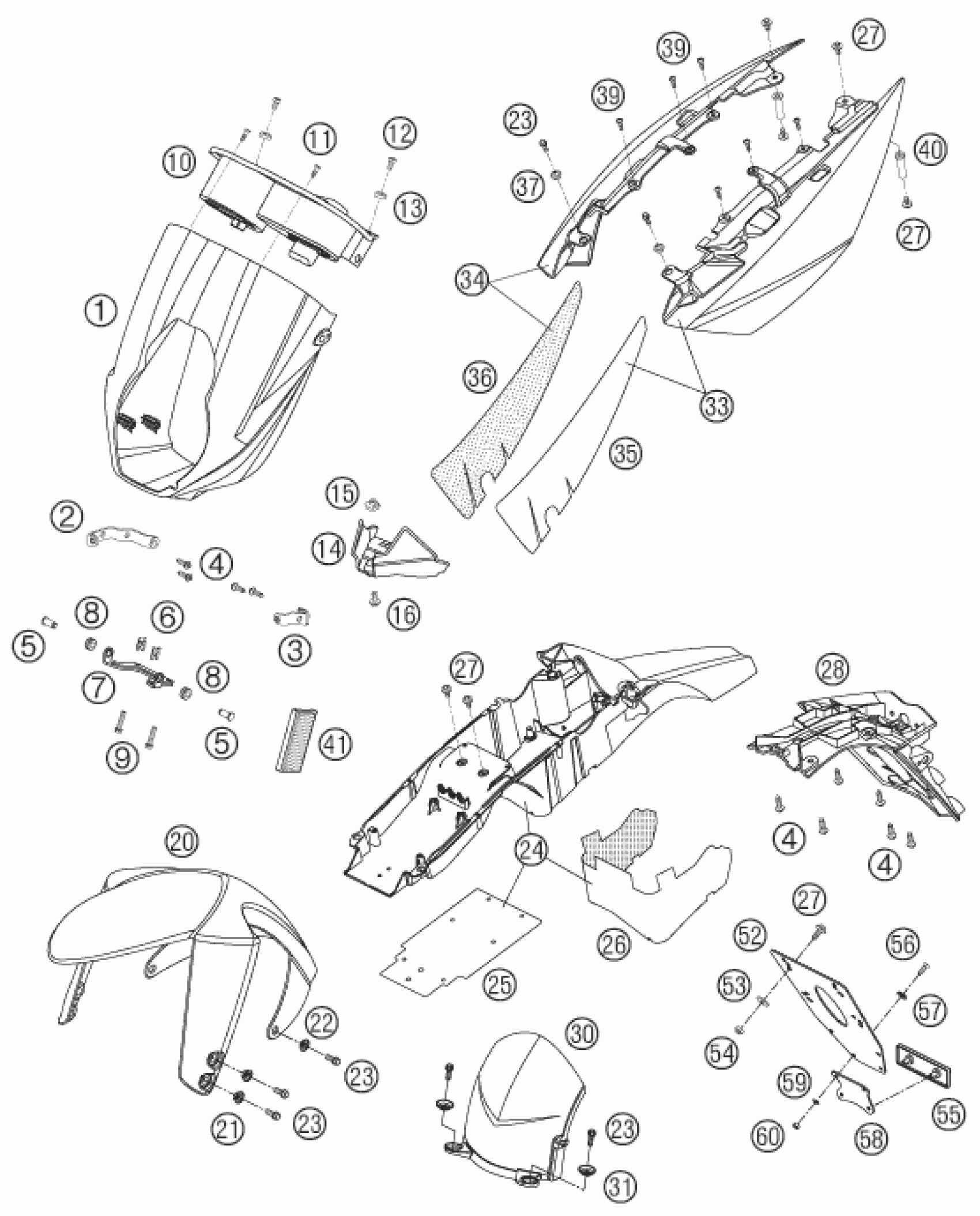

KTM 990 SUPERDUKE BLACK 2006 MASK, FENDERS Diagram

#

Description

Price

1

HEAD LIGHT MASK BLACK 05

6100800100030A

Unavailable

2

MASK BRACKET R/S CPL. 05

61008005000

Unavailable

3

MASK BRACKET L/S CPL. 05

61008004000

Unavailable

4

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

5

BOLT F. LINK FORK 8X20X16,5

60013057000

Unavailable

6

SECURING CLIP D=8MM 03

60013058000

Unavailable

7

HINGE JOINT BOTTOM 99

58708002000

Unavailable

8

rubber grommet D=8mm open

31008060000

Unavailable

9

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

10

INSTRUMENT COVER 05

61014070000

Unavailable

11

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

12

AH SCREW DIN6912 M6X12

0012060123

Unavailable

13

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

14

SPLASH PROTECT. FRAME HEAD 05

61003094000

Unavailable

15

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

16

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

20

FENDER FRONT BLACK MATT 06

5870801000033C

Unavailable

21

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

22

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

23

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

24

REAR END LOWER PART CPL. 05

61008019044

Unavailable

25

THERMAL PROTECTION FOIL 05

61008021000

Unavailable

26

THERMAL PROTECTION FOIL 05

61008021100

Unavailable

27

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

28

NUMB.PLATE CARRIER 05

61008015000

Unavailable

30

SPLASH PROTECT. 05

61008014000

Unavailable

31

BUCKET

72210079000

Unavailable

33

REAR TOPPART L/S BLACK MAT 06

6100804100033B

Unavailable

34

REAR TOPPART R/S BLACK MAT 06

6100804200033B

Unavailable

35

THERMAL PROTECTION FOIL L/S 05

61008041050

Unavailable

36

THERMAL PROTECTION FOIL R/S 05

61008042050

Unavailable

37

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

39

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

40

SPECIAL NUT FOR REAR END 05

61008019050

Unavailable

41

REFLECTOR YELLOW '99

58412080100

Unavailable

52

LICENCE NUMBER SUPPORT 05

60012081100

Unavailable

53

Washer DIN9021-A 6.4

0021060003

Unavailable

54

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

55

REFLECTOR RED

58412080000

Unavailable

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

57

WASHER 6MM

40006006000

Unavailable

58

BRACKET FOR REFLECTOR

58412080050

Unavailable

59

WASHER DIN0125-A 5,3

0125050003

Unavailable

60

Self locking nut DIN 985 M5

0985050003

Unavailable
