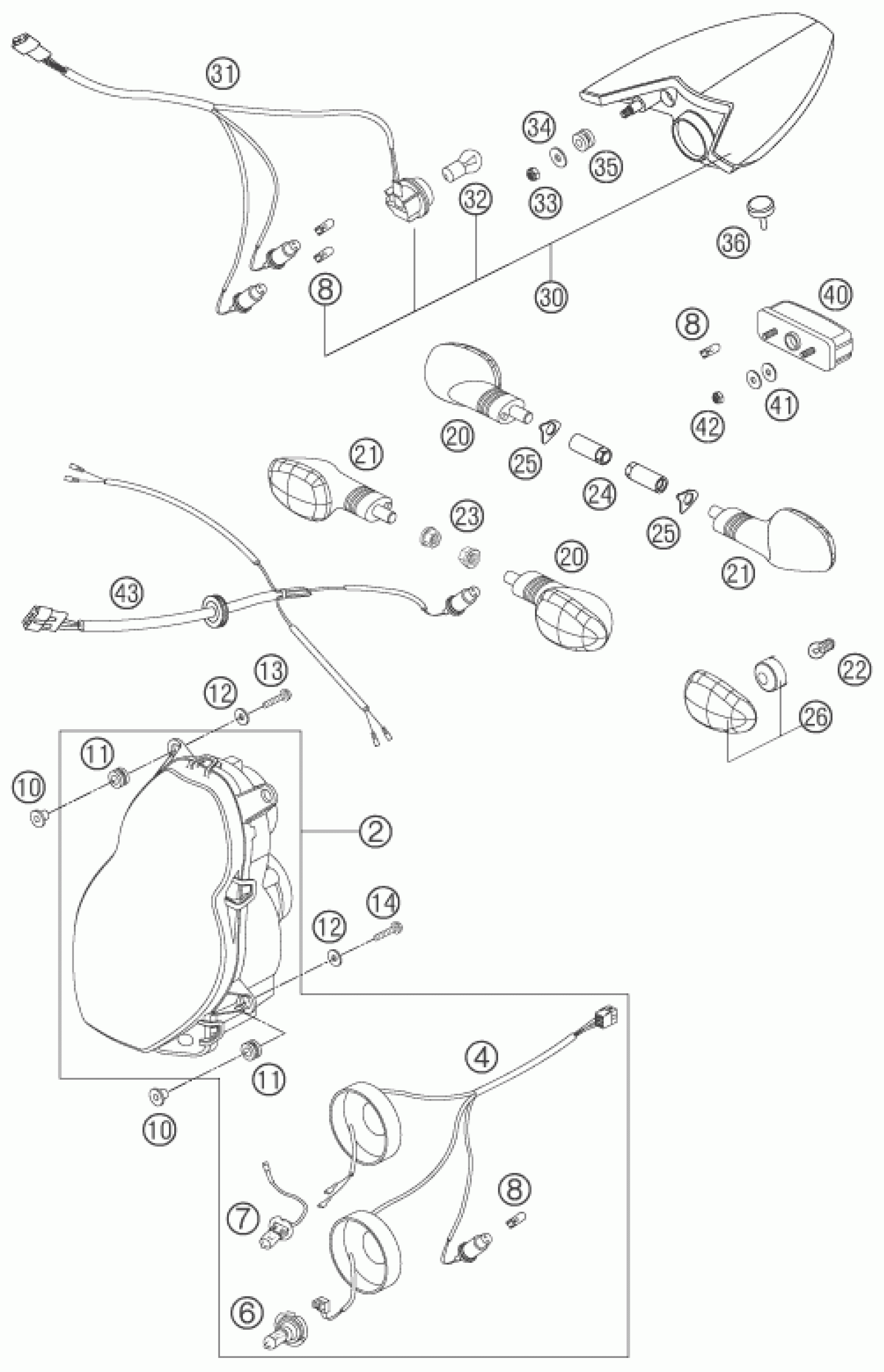

KTM 990 SUPERDUKE BLACK 2006 LIGHTING SYSTEM Diagram

#

Description

Price

4

HEAD LIGHT WIRING HARN. EU/GB

60014001050

Unavailable

6

BULB H7 12V 55W

60014003100

Unavailable

8

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

7

BULB H3 12V 55W

60014003000

Unavailable

10

SPACER BUSHING HEAD LIGHT 03

60014007000

Unavailable

11

RUBBER GROMMIT BLACK

31008008000

Unavailable

12

washer DIN 9021 A - 5.3

0021050003

Unavailable

13

SCREW FOR PLASTIC 03

0016050253

Unavailable

14

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

58414025100

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

58414026100

Unavailable

22

BULB 12V 10W (BA15S)

44111015100

Unavailable

23

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

24

FLASHER NUT M10X1,25 WS=12

61014030000

Unavailable

25

FLASHER WASHER 05

61014031000

Unavailable

26

FLASHER LENS L/S & R/S 02

58414028100

Unavailable

30

REAR LIGHT DUKE 05

61014040000

Unavailable

31

CABLE HARNESS REAR PART 05

58611076100

Unavailable

32

BULB 12V 21W

60014048000

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

34

Washer DIN9021-A 6.4

0021060003

Unavailable

35

rubber grommet 16x10.8x3

58214069051

Unavailable

36

Distance rupper airbox 03

60006001021

Unavailable

40

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

41

washer DIN 9021 A - 5.3

0021050003

Unavailable

42

Self locking nut DIN 985 M5

0985050003

Unavailable

43

WIRING HARNESS REAR 05

62511076000

Unavailable

2

HEAD LIGHT LEFT TRAFFIC 03

60014501000

Unavailable
