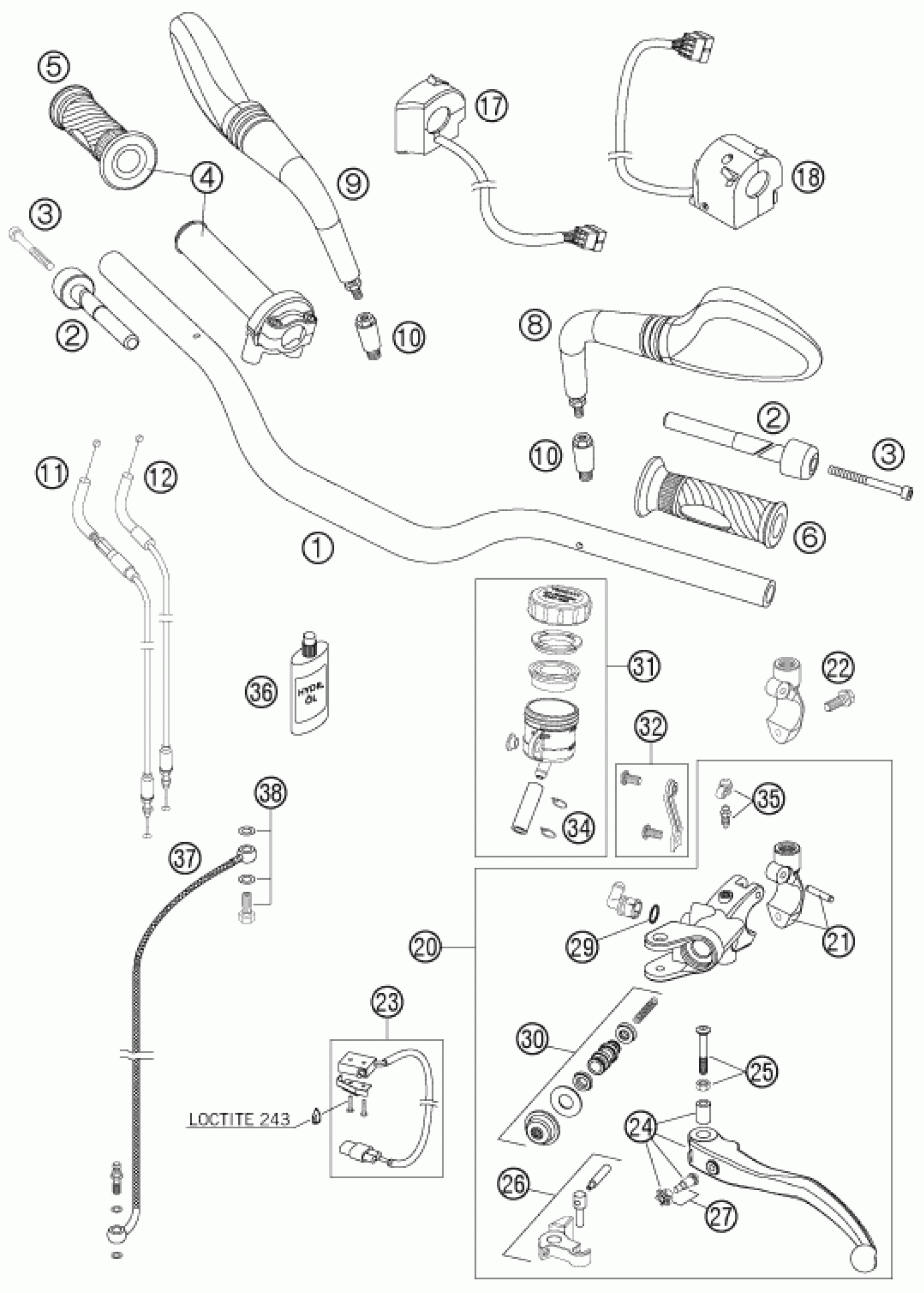

KTM 990 SUPERDUKE BLACK 2006 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR 06

61002001100

$201.02

2

handlebar weight

61002004000

$35.52

3

SHCS DIN 912 M6x65

0912060653

$2.05

4

THROTTLE GRIP 05

61002010000

$65.72

5

TWIST GRIP COVER PERFORATE 05

61002013000

$28.79

6

FIXED GRIP PERFORATED 05

61002052000

$7.75

8

REAR MIRROR L/S 05

58712040100

$30.62

9

REAR MIRROR R/S 05

58712041100

$28.54

10

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

11

THROTTLE CABLE OPEN 05

61002091000

$43.38

12

THROTTLE CABLE CLOSE 05

61002092000

$45.53

20

MASTER CYLINDER CPL. 05

61002030000

$434.77

21

CLAMP MIRROR WITH PIN

61002044000

$41.88

22

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

23

CLUTCH SWITCH 05

61011049000

$76.76

24

CLUTCH LEVER CPL. 05

61002031000

$83.58

25

LEVER SCREW CPL. 05

61002038000

$17.26

26

ROCKER CPL. 05

61002056000

$43.94

27

ADJUSTING SCREW CPL.

61002043000

$19.72

30

REP.SET PISTON D=13 05

61002032000

$79.93

31

RESERVOIR CPL. 05

61002055000

$67.31

32

BRACKET AND SCREWS F. RESERV.

61002055050

$35.15

34

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

35

BLEEDER SCREW WITH CAP

61002054000

$23.55

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

37

CLUTCH PIPE 05

61032063000

$88.35

38

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

29

O-RING ANGLE PIECE

61002051000

$2.05

17

START-STOP SWITCH AD 03

58411074200

Unavailable

18

LIGHT SWITCH 05

61011070000

$107.89
