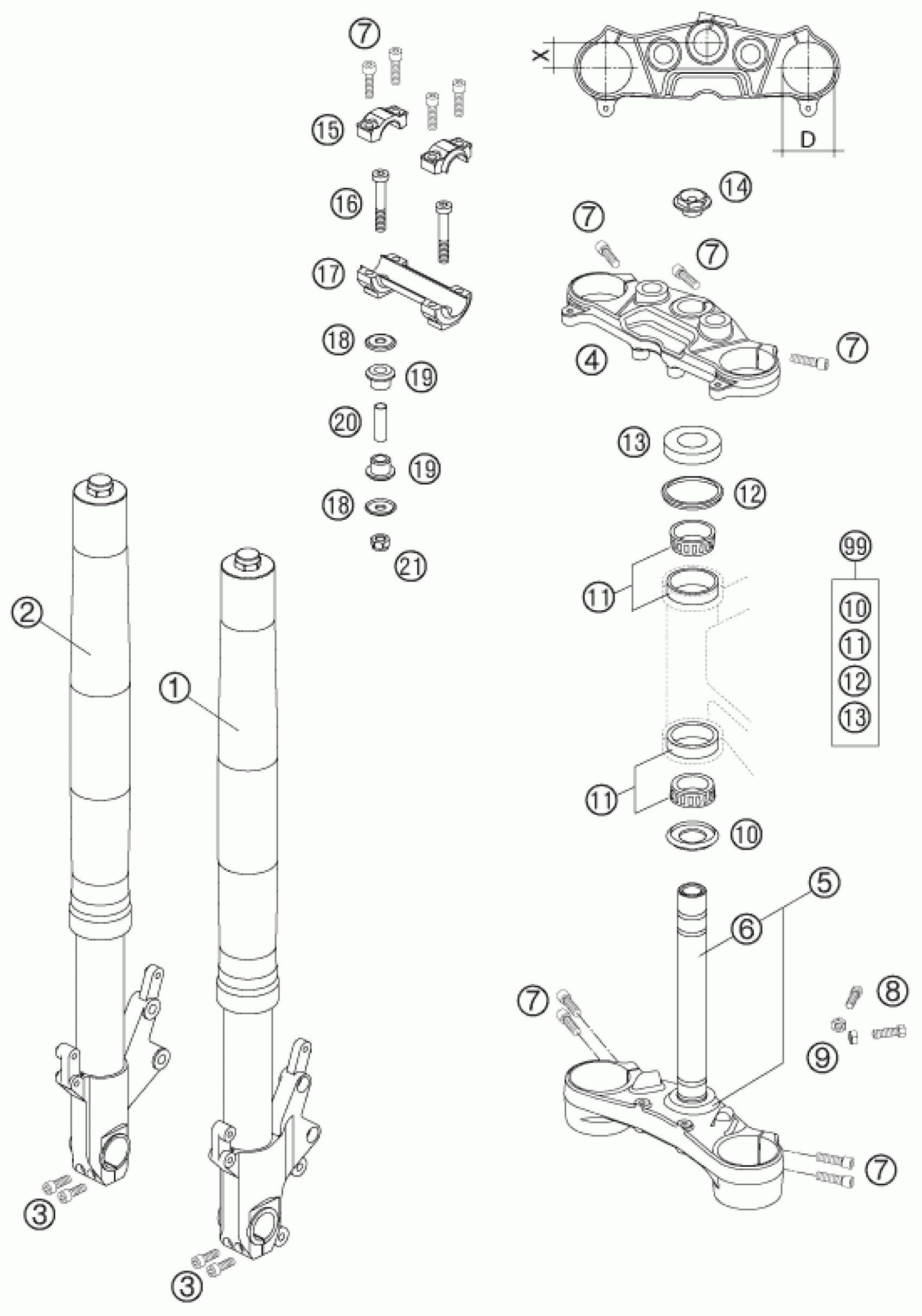

KTM 990 SUPERDUKE BLACK 2006 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

11

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

12

STEARING HEAD GASKET TOP

54601184000

Unavailable

13

STEERING HEAD COVER 05

61001086000

Unavailable

1

FORKLEG L/S WP48 SUPERDUKE 06

14187B13LS

Unavailable

2

FORKLEG R/S WP48 SUPERDUKE 06

14187B13RS

Unavailable

3

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

4

TOP TRIPLE CLAMP 210/26 05

61001034026

Unavailable

5

BOT.TRIPLE CLAMP CPL. 05

61001032026

Unavailable

6

FORK TUBE LC8 ADV 03

60001033000

Unavailable

7

AH SCREW DIN6912-M 8X30

0012080303

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

9

Hexagon nut DIN934 M8

0934080003

Unavailable

10

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

14

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

Unavailable

15

HANDLEBAR CLAMP 28MM ELOX. 05

59001038300

Unavailable

16

AH SCREW DIN6912-M10X60

0012100603

Unavailable

17

HANDLEBAR SUPPORT 28 MM ELOX.

59001039200

Unavailable

18

washer 10.5x32x2

56401042000

Unavailable

19

rubber bushing

56401040000

Unavailable

20

spacer tube 10.2x12x38

61001041000

Unavailable

21

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
