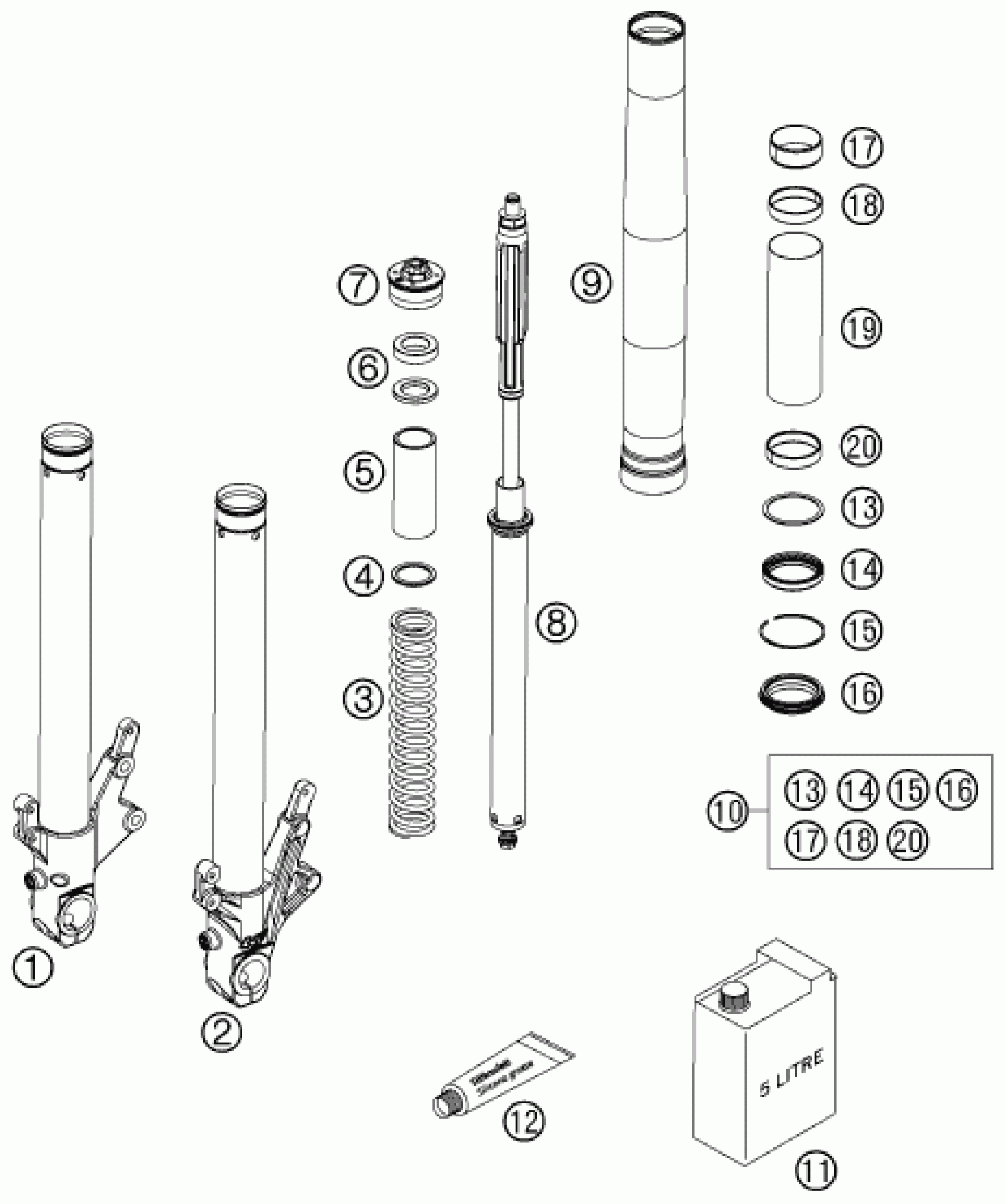

KTM 990 SUPERDUKE BLACK 2006 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

AXLE CLAMP R/S CPL. 05

48600259S1

Unavailable

2

AXLE CLAMP L/S CPL. 05

48600258S1

Unavailable

3

SPRING C=9 L=250 D=5,1 05

91410038S

Unavailable

3

SPRING C=8,5 L=250 D=5,1 05

91410034S

Unavailable

3

SPRING C=9,5 L=250 D=5,25 05

91410039S

Unavailable

4

WASHER 32X42X2,5

48600460

Unavailable

5

SPACER ALU D40 X 100

48600361

Unavailable

6

Preload bush 26,5x42x1,5

48600053

Unavailable

6

Preload bush 42x26,5x2,5

48600036

Unavailable

6

Preload bush 26,5x42x5

48600037

Unavailable

7

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

Unavailable

8

CARTRIDGE CPL. 05

48600358S

Unavailable

9

OUTR TUBE L=500MM D=54/60 SET

48600362E

Unavailable

10

REPAIR-KIT GASKET 4860 MXMA 05

R14009

Unavailable

11

FORK OIL SAE5 5L 2005

48600401S1

Unavailable

12

SILICONE GREASE F. DUST STRI

T511

Unavailable

13

Supportwasher 50x57,6x1,5

48600013

Unavailable

14

Shaft seal SKF 48x57,8x9,5 bla

48600399

Unavailable

15

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

16

DUST CAP D=48 58,4X11,8

48600400

Unavailable

17

DU-BUSH D47XD49X20DDL02

48600428

Unavailable

18

Guide bushing 48x51x12

48600236

Unavailable

19

SPACER 50,95X0,85X161,5

48600245

Unavailable

20

DU-BUSH D48XD52X12DDL02

48600429

Unavailable
