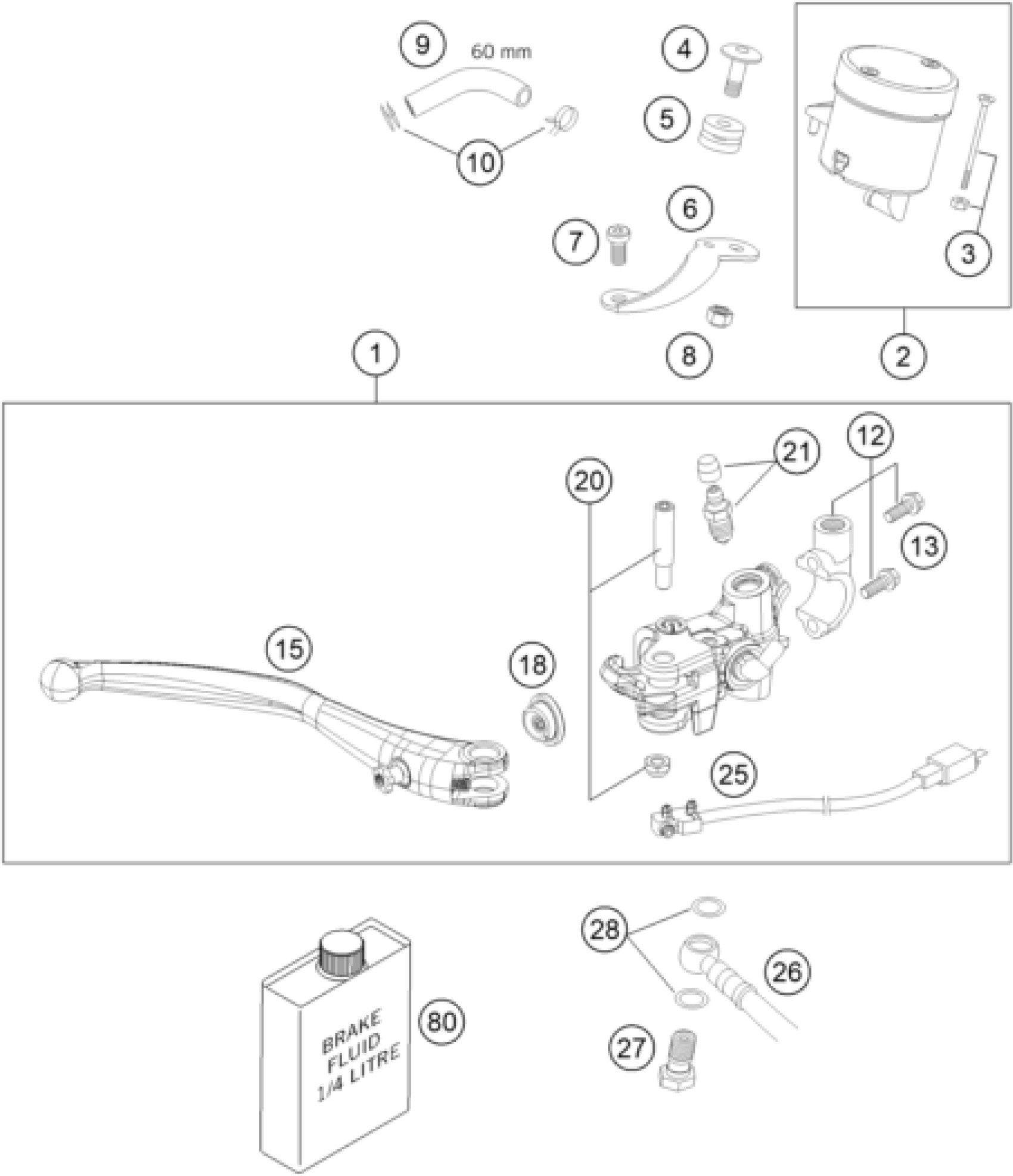

KTM 990 SUPERDUKE BLACK 2006 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HAND BRAKE CYLINDER 05

61013001000

$408.31

2

BRAKE FLUID RESERVOIR CPL.

61013009002

$41.51

3

SCREW + NUT FOR RESERVOIR

61013009003

$17.10

4

SCREW RET.PANEL-RESERVOIR

61013013050

$9.06

5

RUBBER BUSH 05

61013013000

$3.08

6

RET.PANEL FLUID RES. FRONT 05

61013009001

$9.34

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

8

NUT FOR RESERVOIR

61013009004

$3.08

9

HOSE FOR RESERVOIR 6X1,5

58007016101

$16.35

10

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

12

CLAMP CPL. 05

61013005000

$28.51

13

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

15

HAND BRAKE LEVER LOOSE

61013002000

Unavailable

18

RUBBER CUP 05

61013008000

$7.66

20

LEVER SCREW CPL. 05

61013006000

$12.43

21

BLEEDER SCREW WITH CAP

60013020000

$7.38

25

BRAKE LIGHT SWITCH FRONT 05

61011050000

$59.74

26

BRAKE PIPE FRONT CPL. 05

61013012000

Unavailable

27

HOLLOW SCREW M10X1X19

50213025000

$6.54

28

sealing ring DIN 7603 10x14x1

0603100141

$2.05

80

BRAKE FLUID DOT 4.0

306054

Unavailable
