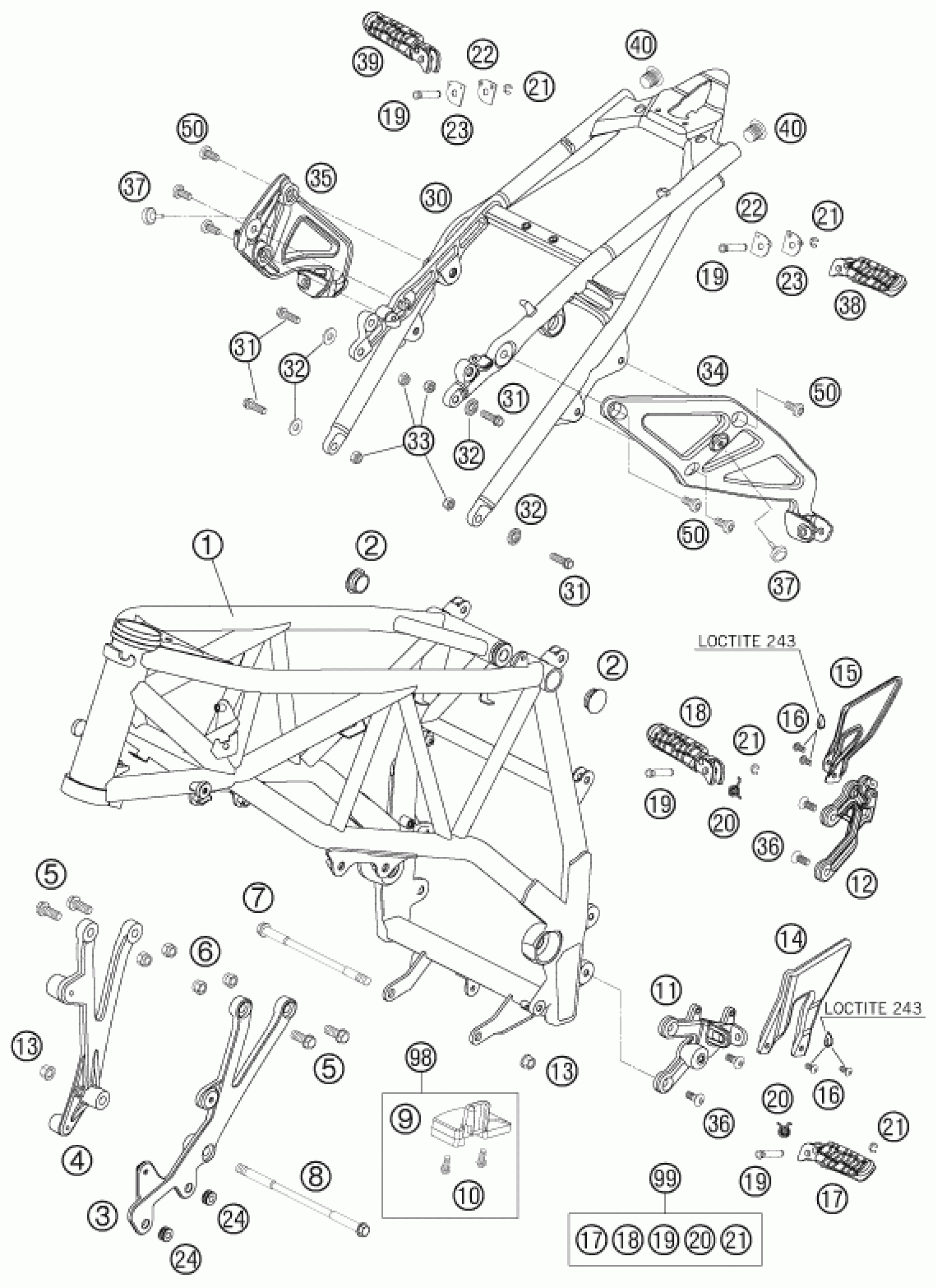

KTM 990 SUPERDUKE BLACK 2006 FRAME Diagram

#

Description

Price

1

FRAME 990 DUKE 05

6100300100030

Unavailable

2

PLUG SFL28 05

61003088000

Unavailable

3

ENGINE SUPPORT LEFT 05

61003005000

Unavailable

4

ENGINE SUPPORT RIGHT 05

61003006000

Unavailable

5

HH COLLAR SCREW M10X24 WS=13

0015100243

Unavailable

6

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

24

RUBBER SLEEVE 03

60003098000

Unavailable

7

ENGINE BRAC. SCREW M10X172 03

60003013000

Unavailable

8

ENGINE BRAC. SCREW M10X206 03

60003014000

Unavailable

9

CHAIN SLIDING BLOCK 05

60004076100

Unavailable

10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

11

FOOTREST BRACKET FRONT L/S 05

61003038000

Unavailable

12

FOOTREST BRACKET FRONT R/S 05

61003039000

Unavailable

13

COLLAR NUT M10 WS=13

54630044000

Unavailable

14

COVER PLATE L/S 05

61034032000

Unavailable

15

COVER PLATE R/S 05

61013032000

Unavailable

16

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

17

FOOTREST FRONT L/S CPL. 05

61003050000

Unavailable

18

FOOTREST FRONT R/S CPL. 05

61003051000

Unavailable

19

BOLT FOR FOOTREST REAR 03

60003044000

Unavailable

20

SPRING FOOTREST FRONT 05

61003042000

Unavailable

21

retaining washer DIN 6799 - 6

0799060003

Unavailable

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

30

SUB FRAME PLATIN 07

6110300200092

Unavailable

31

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

32

STEPPED WASHER 8,5X20X3,5 05

61003002058

Unavailable

33

STOP NUT DIN6926 M8 SS

0926080003

Unavailable

34

FOOTREST BRACKET REAR L/S 05

61003048000

Unavailable

35

FOOTREST BRACKET REAR R/S 05

61003049000

Unavailable

36

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

37

Distance rupper airbox 03

60006001021

Unavailable

38

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

39

Footrest cmpl. r/s rear 03

60003051000

Unavailable

40

PLUG SFL 22X1,8-3,5

61003089000

Unavailable

50

SPECIAL SCREW M8X18 06

61003052000

Unavailable

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable

99

FOOTPEG KIT 990 SD/SDR

61003040010

Unavailable
