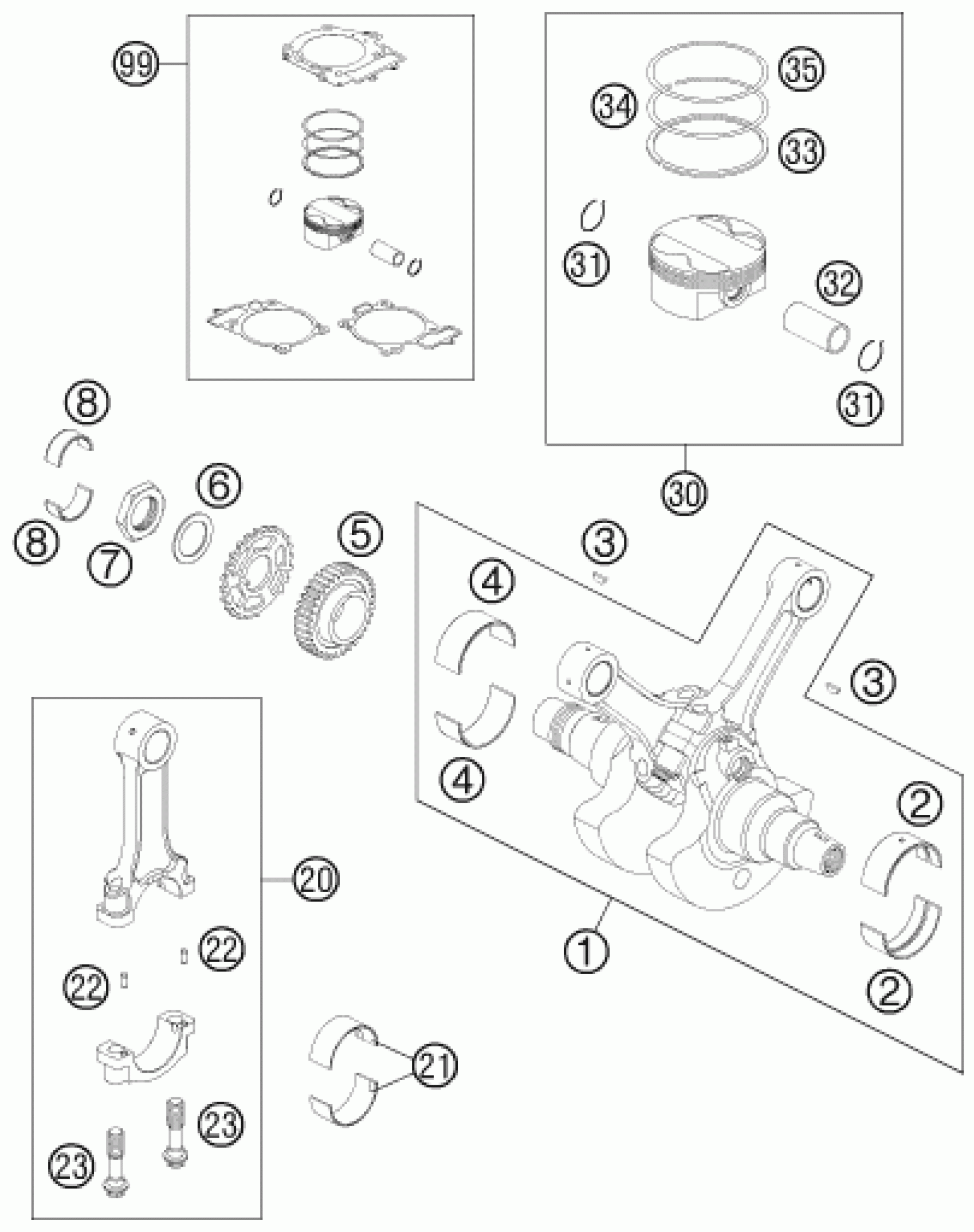

KTM 990 SUPERDUKE BLACK 2006 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT KPL.

61030018100

$1,183.49

2

SPLIT BEAR.BUSH SIZE 1 RED 03

60030082000 1

Unavailable

2

SPLIT BEAR.BUSH SIZE 2 BLUE 03

60030082000 2

Unavailable

2

SPLIT BEAR.BUSH SIZE 3 YELL.03

60030082000 3

Unavailable

3

woodruff key DIN 6888 4x5x13

0888040050

$4.11

4

SPLIT BEAR.BUSH SIZE 1 RED 03

60030182000 1

Unavailable

4

SPLIT BEAR.BUSH SIZE 2 BLUE 03

60030182000 2

Unavailable

4

SPLIT BEAR.BUSH SIZE 3 YELL.03

60030182000 3

Unavailable

5

PRIMARY PINION 35 T 03

60032023035

$137.25

6

WASHER 33,2X46X2 03

60032009040

$3.08

7

HH-NUT M33X1,5 L/S WS46 03

60032009050

$15.89

8

BUSHING BOWL 28X32X13 03

60030026010

$14.02

20

CONNECTING ROD CPL. 06

60030013244

$235.05

21

BUSH.BOWL PACK. SIZE 1 RED 03

60030013051

Unavailable

21

BUSH.BOWL PACK. SIZE 2 BLUE 03

60030013052

Unavailable

21

BUSH.BOWL PACK. SIZE 3 YELL.03

60030013053

Unavailable

22

CYLINDER PIN 03

60030015061

$1.73

23

CONNECTING-ROD BOLT MJ10X1 06

60030015260

$19.81

30

PISTON D=101 05

61030007000 I

Unavailable

30

PISTON D=101 05

61030007000 II

Unavailable

31

SAFETY CLIP

60030074000

$9.62

32

PISTON PIN EB 22/72 d22x56

75030033000

$23.52

33

OIL SCRAPER RING D=101MM

61030032000

$23.18

34

TAP.COMPR.PISTON RING 101X1,25

58330932100

$26.45

35

PISTON RING ''L'' D=101 H=1,25

61030030000

$44.96

99

PISTON KIT GR.I 990 SD/SMR/SMT

61030007010 I

Unavailable

99

PISTON KIT GR.II 990SD/SMR/SMT

61030007010 II

Unavailable
