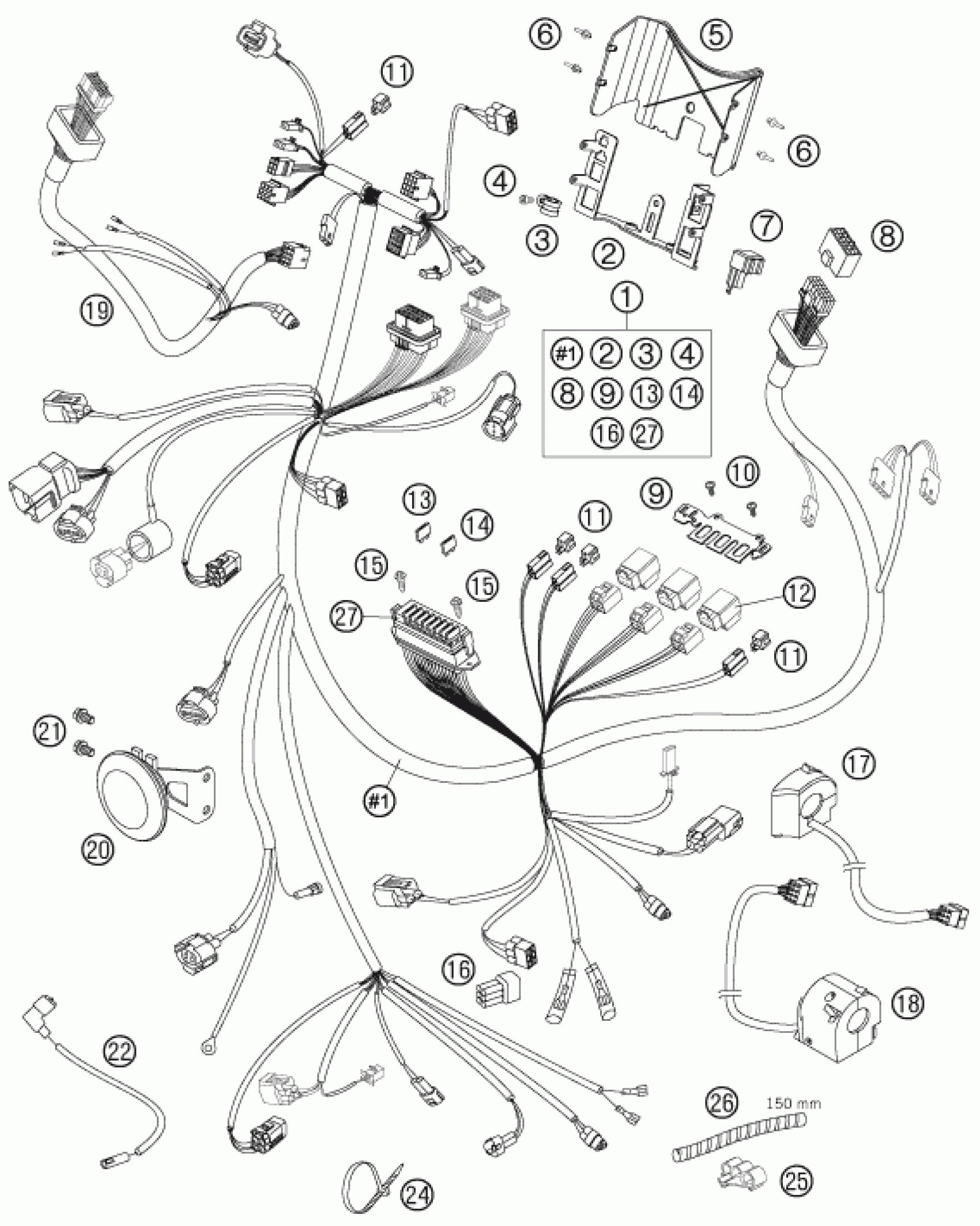

KTM 990 SUPERDUKE BLACK 2005 WIRING HARNESS Diagram

#

Description

Price

1

MAIN WIRING HARNESS 05

61011075000

Unavailable

2

BRACKET FOR PLUGS CPL. 05

61011083000

$36.07

3

CLAMP RSGU 15/12

49007439000

$5.23

4

AH SCREW DIN0912-M 5X10

0912050103

$1.49

5

BRACKET FOR PLUGS COVER 05

61011083020

$5.92

6

PLASTIC CAP FOR M6 03

60003088000

$1.49

8

DUMMY PLUG ALARM SYSTEM 05

61011075020

$14.67

9

BRACKET RELAY 05

61011057050

Unavailable

11

DIODE S3H-15 97

58411096100

$9.81

12

STARTER RELAY '96

58411057000

$22.82

13

Plug-in fuse, big 10A

58011109110

Unavailable

14

FUSE 15 A

58011109115

Unavailable

17

START-STOP SWITCH AD 03

58411074200

Unavailable

18

LIGHT SWITCH 05

61011070000

$107.89

19

WIRING HARNESS FRONT 05

61011079000

Unavailable

20

DC HORN CPL. 05

61011060000

$31.88

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

23

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

23

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

23

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

25

WIRING HOLDER 05

61011093000

$3.48

26

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

27

FUSE-BOX COVER

58511075510

$12.61
