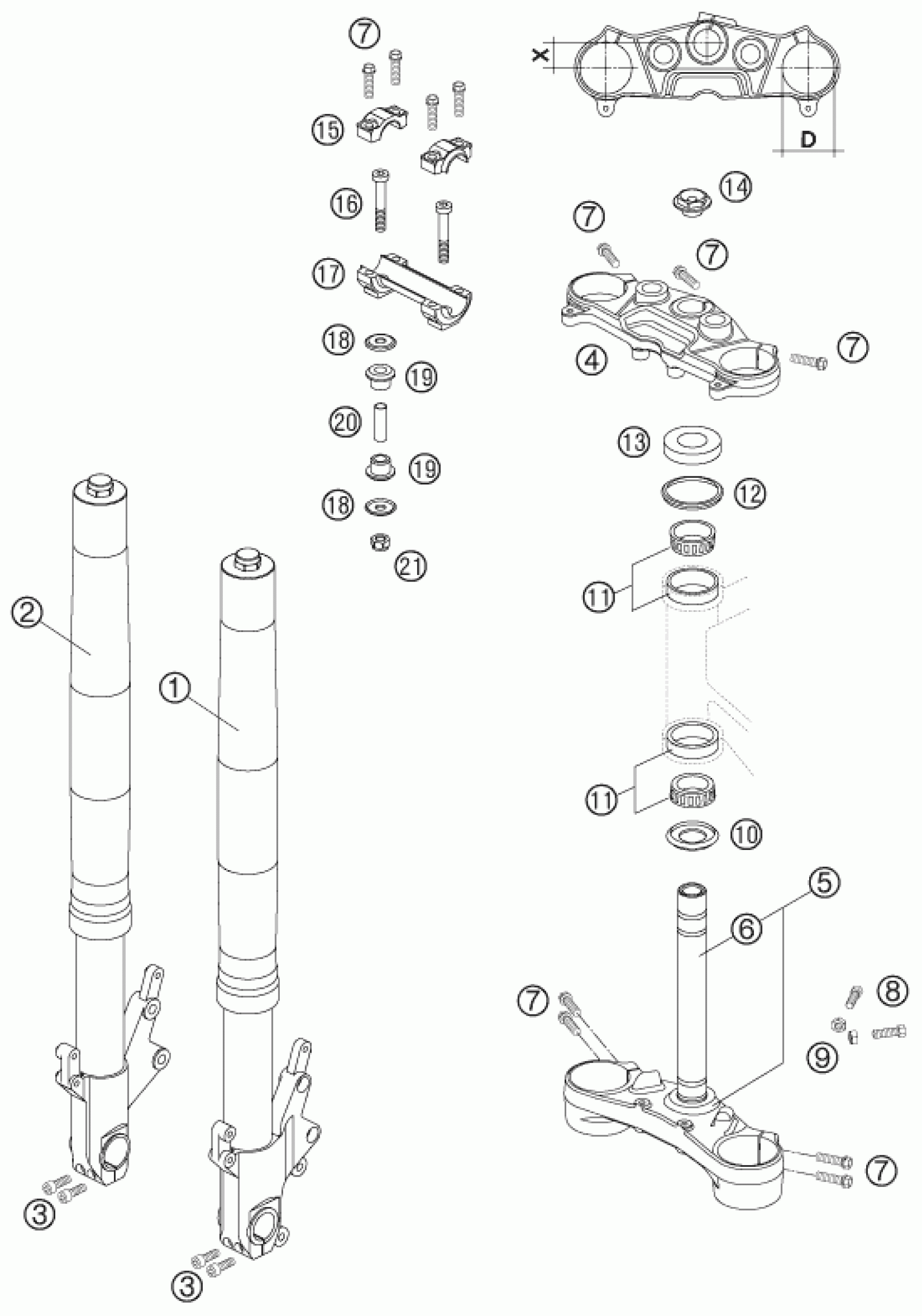

KTM 990 SUPERDUKE BLACK 2005 FRONT FORK, TRIPLE CLAMP Diagram

AH SCREW DIN0912-M 8X30

0912080303

$2.05

TOP TRIPLE CLAMP 210/26 05

61001034026

Unavailable

BOT.TRIPLE CLAMP CPL. 05

61001032026

Unavailable

FORK TUBE LC8 ADV 03

60001033000

$65.16

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

STEARING HEAD GASKET TOP

54601184000

$7.10

STEERING HEAD COVER 05

61001086000

$13.92

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

HANDLEBAR CLAMP 28MM ELOX. 05

59001038300

$27.76

HANDLEBAR SUPPORT 28 MM ELOX.

59001039200

$147.25

washer 10.5x32x2

56401042000

$4.11

rubber bushing

56401040000

$5.23

spacer tube 10.2x12x38

61001041000

$4.11
