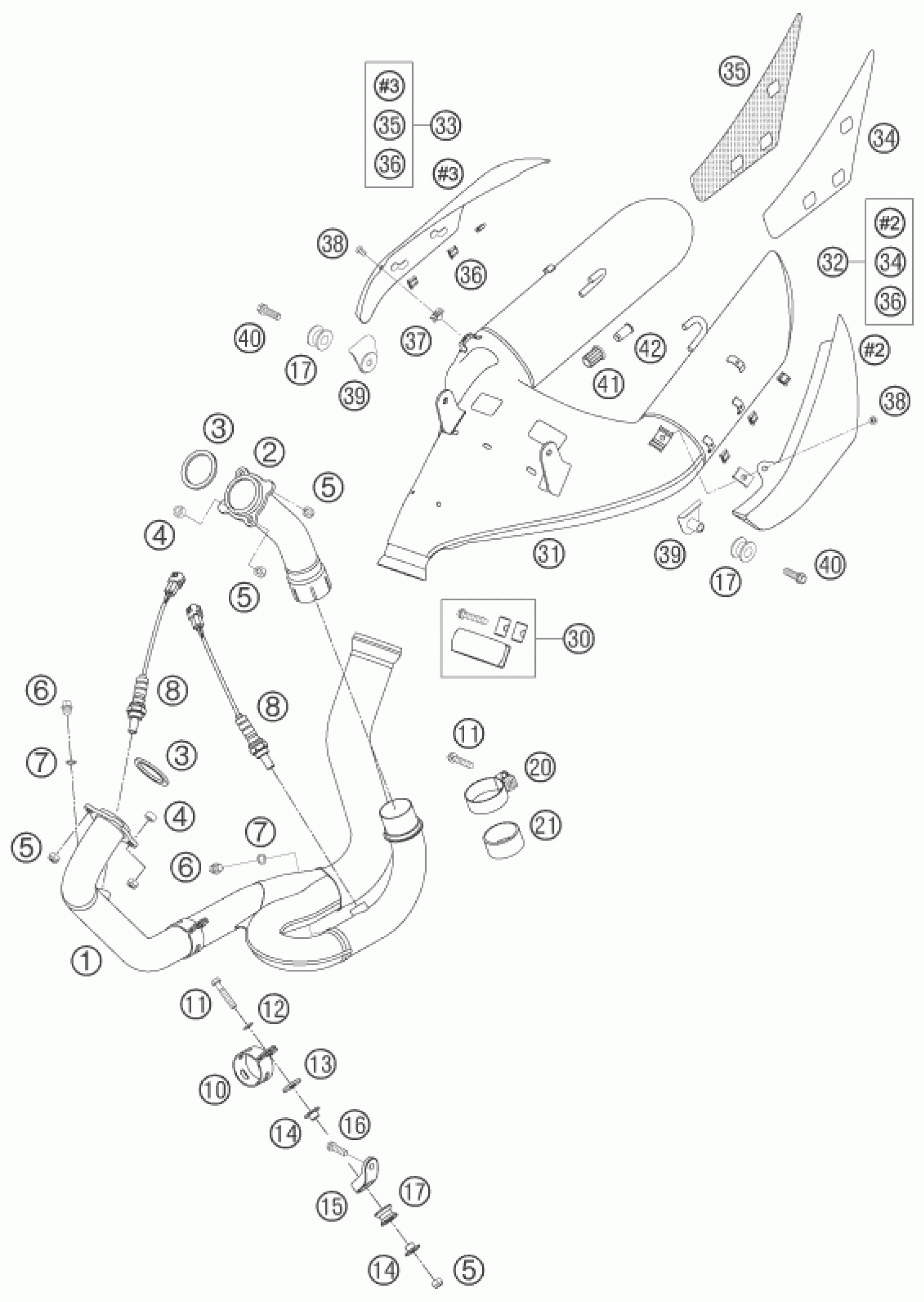

KTM 990 SUPERDUKE BLACK 2005 EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST PIPE FRONT 05

61005007000

Unavailable

2

EXHAUST PIPE REAR

61005008000

Unavailable

3

Exhaust gasket 05

61005005000

Unavailable

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

5

self-locking nut M8 Cu

51010086100

Unavailable

6

PLUG DIN0910-M 10X1

0910100003

Unavailable

8

LAMBDA SENSOR 05

61041090000

Unavailable

10

CLAMP EXHAUST PIPE 05

61005007049

Unavailable

13

INSOLATE WASHER 8,5X28X3

51005067000

Unavailable

14

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

15

EXHAUST PIPE BRACKET FRONT 05

61005015050

Unavailable

17

damp. component silicone grey

54305068100

Unavailable

20

CLAMP CPL. D=53,2MM 05

61005051100

Unavailable

21

Graphite ring 45X50X25

58405005001

Unavailable

30

EXHAUST CLAMP CPL. 05

61005052000

Unavailable

31

SILENCER 05

61005083000

Unavailable

32

THERMAL SHIELD SILENCER L/S 05

61005090020

Unavailable

33

THERMAL SHIELD SILENCER R/S 05

61005090030

Unavailable

34

THER.PROT.FOIL SILENCER L/S 05

61005090022

Unavailable

35

THER.PROT.FOIL SILENCER R/S 05

61005090032

Unavailable

36

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable

37

clip nut M6

54603048100

Unavailable

39

ANTI-ROTATION ELEMENT CPL. 05

61005083011

Unavailable

41

RUBBER SILENCER SUPPORT 05

61005013000

Unavailable

42

Sleeve silencer support

61005014000

Unavailable
