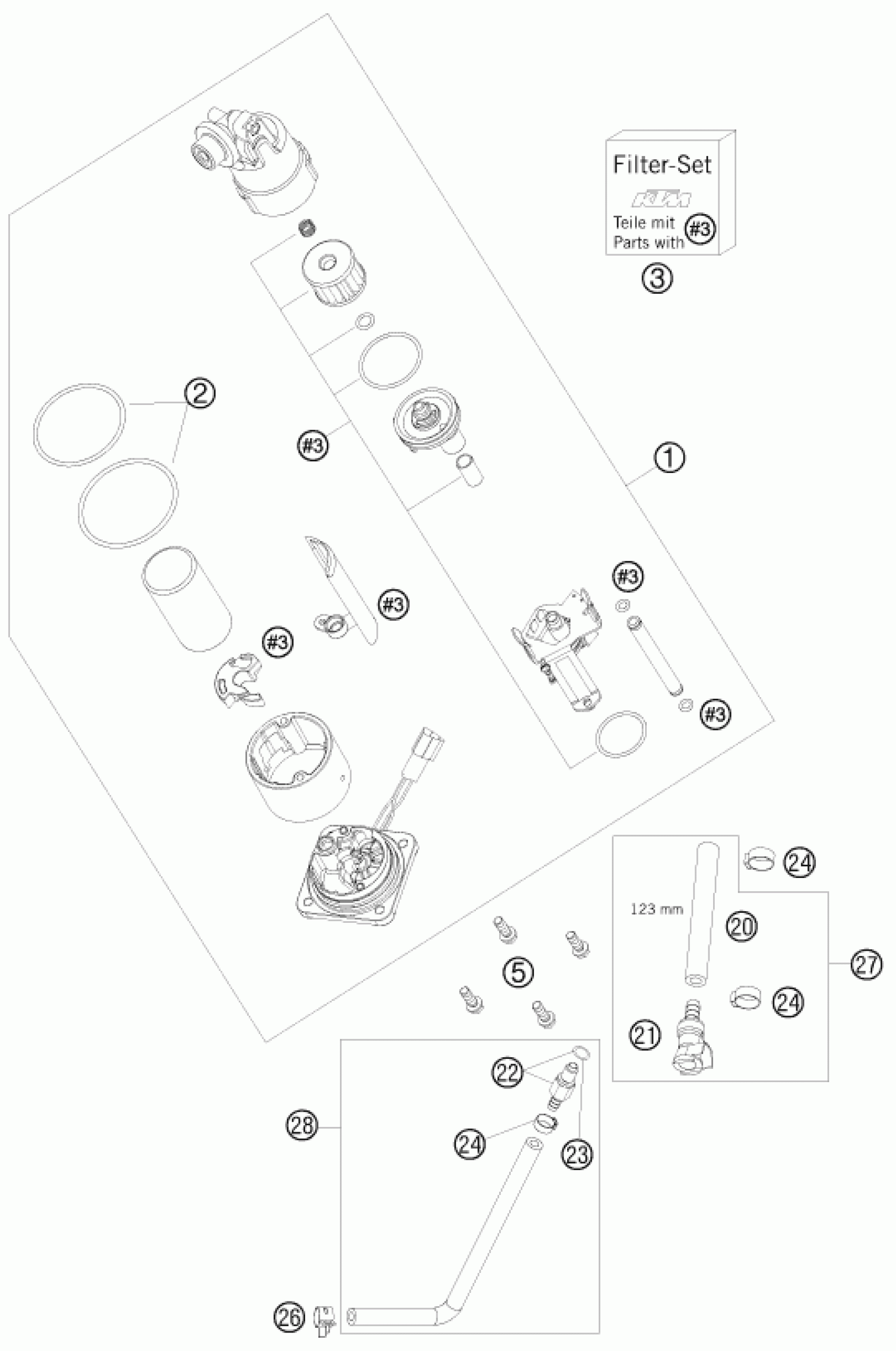

KTM 990 SUPER DUKE WHITE 2009 FUEL PUMP Diagram

#

Description

Price

3

FILTER-SET FUEL PUMP 05

61007090000

Unavailable

5

HH collar screw M6x16 TX30

0025060166

Unavailable

20

HOSE 7,5X13,5 PER METER

60007016001

Unavailable

21

Clutch CPC PLCD17005, black

5850701050030

Unavailable

22

Plug CPC black 05

5850701030030

Unavailable

23

O-ring VITON f. plug CPC 0

58507012000

Unavailable

24

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

Unavailable

26

CLAMP STD DN14

00049140121

Unavailable

27

FUEL HOSE CPL. 08

60107016151

Unavailable

28

FUEL HOSE 1 CPL.

61007116050

Unavailable

1

PUMP WITHOUT RESERVE INDICATOR

61007088200

Unavailable

2

O-RING SET FOR FUEL PUMP 05

61007089000

Unavailable
