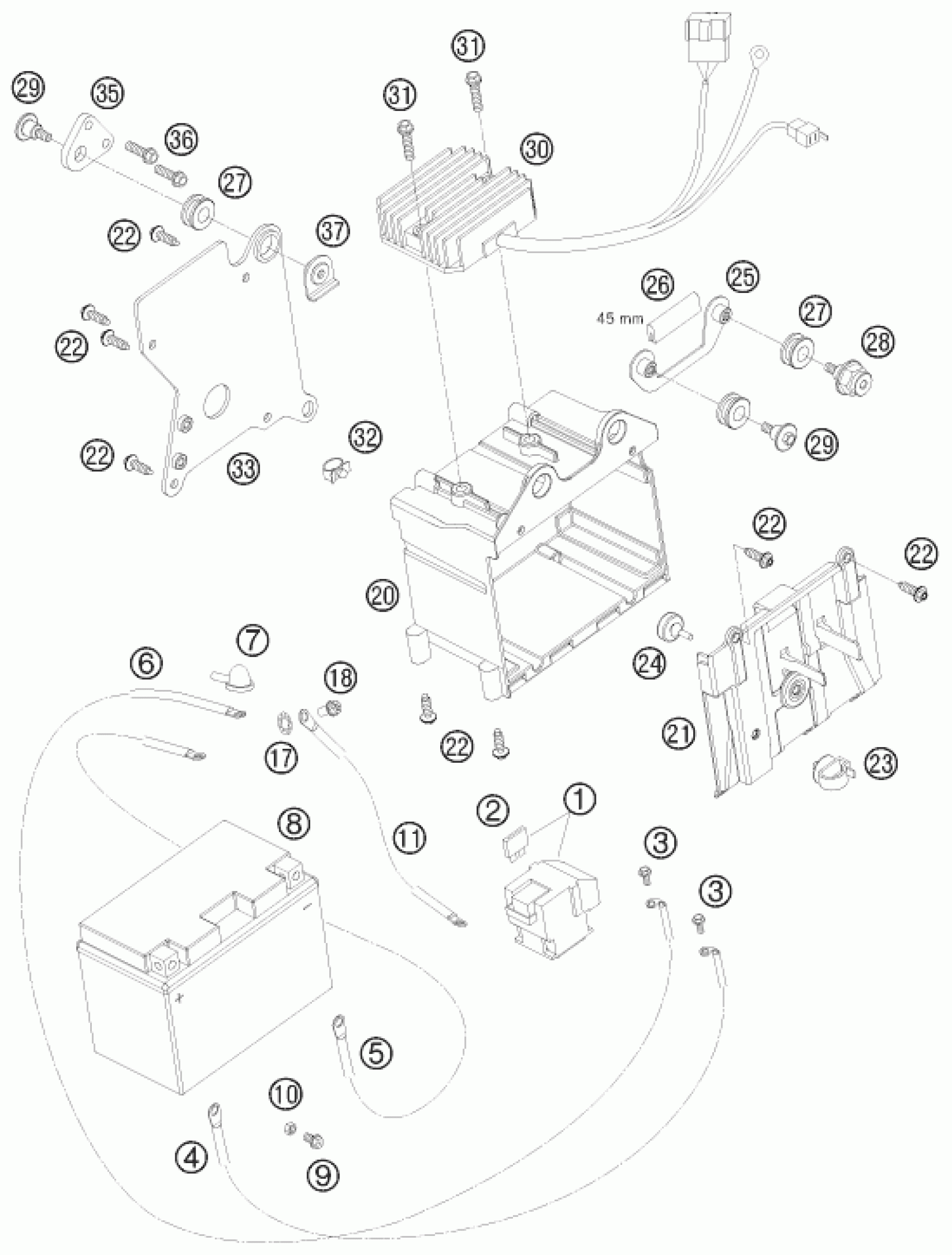

KTM 990 SUPER DUKE WHITE 2009 BATTERY Diagram

#

Description

Price

7

Rubber grommet, starter port 0

60040009000

$3.08

8

BATTERY 12V/11AH 03

60011053000

$366.89

9

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

10

Hex. nut DIN 934 M6

0934060003

$1.49

11

GROUND CABLE 07

61111097000

$5.39

20

BATTERY BOX 05

61011054000

$26.83

28

SPECIAL SCREW M6 WS19 05

61011055050

$13.64

29

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

21

BATTERY BOX COVER 05

61011054006

$9.67

22

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

23

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

24

Distance rupper airbox 03

60006001021

$2.05

25

ANTI-ROT. ELEMENT DUAL CPL. 05

61011055033

$18.38

26

EDGE PROTECTOR PER METER

58312085100

Unavailable

27

RUBBER SLEEVE 03

60003098000

$4.11

30

VOLTAGE REGULATOR

60011034100

$160.34

6

STARTERCABLE L=820 MM

61011059000

$11.87

32

WIRING HOLDER 16MM

57013072100

$1.49

33

BATTERY BOX SUPPORT R/S CPL.

61011057033

$54.86

35

BATTERY SUPPORT 05

61011056020

$14.28

36

HH collar screw M6x20 TX30

0025060206

$3.08

37

ANTI-ROTATION ELEMENT CPL. 05

61011056033

$14.28

1

STARTER RELAY 03

60011058000

$76.38

3

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

31

HH collar screw M6x30 TX30

0025060306

$3.08

2

Plug-in fuse, big 30A

58011109130

Unavailable

4

BATTERY CABLE L=230MM 05

61011059050

$8.36

5

GROUND CABLE L=450MM 05

61011097000

$9.44

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

HH collar screw M6x12 TX30

0025060126

$3.08
