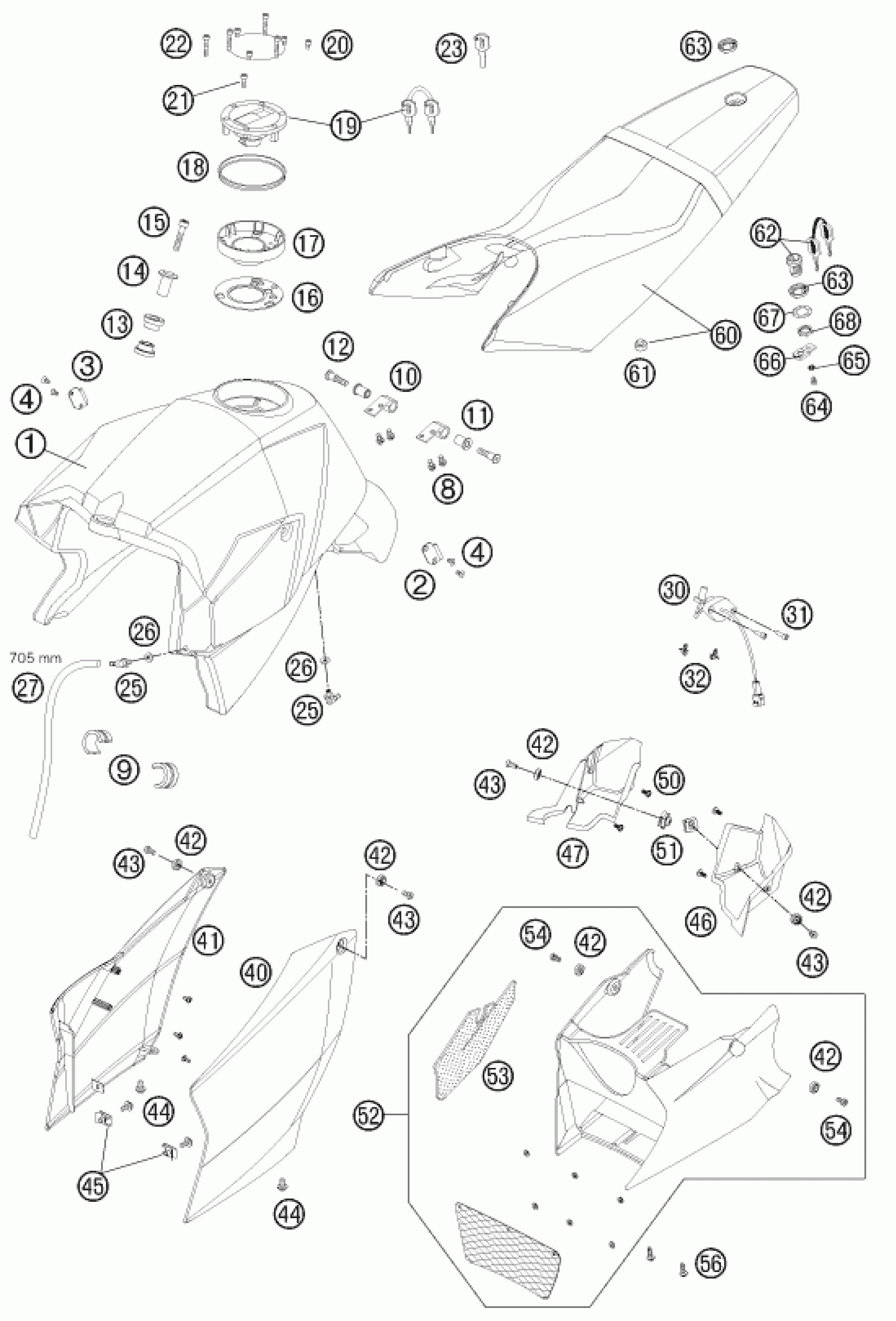

KTM 990 SUPER DUKE R 2012 TANK, SEAT Diagram

#

Description

Price

1

FUEL TANK SD-R 07

6110701300033A

Unavailable

2

BRACKET SEAT L/S 05

61007041000

$17.01

3

BRACKET SEAT R/S 05

61007042000

$17.01

4

Flat head screw DIN7991 M5X10

0991050102

$2.05

42

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

9

SPACER FUEL TANK 05

61007014000

$6.63

10

BRACKET FUEL TANK 05

61007025000

$15.41

11

RUBBER BEARING FUEL TANK 05

61007027000

$4.35

12

SPECIAL SCREW M10X36 AH 05

61007026000

$5.23

13

collar bushing, front tank hol

61007065000

$7.85

14

collar bushing, bearing, outsi

61007060000

$9.90

8

HH collar screw M6x12 TX30

0025060126

$3.08

15

AH collar screw DIN0912 M8x40

0912080403

$2.05

16

SEAL. FLANGE F.TANK INSERT 03

60007008051

$6.54

17

TANK INSERT 05

60007008150

$19.53

18

SEAL. RING F. TANK INSERT 03

60007008052

$4.11

19

TANK PLUG CPL. 05

61007008000

$121.92

20

SHCS DIN 912 M5x8

0912050083

$1.49

21

AH SCREW DIN0912-M 5X12

0912050123

$2.05

22

AH SCREW DIN0912-M 5X30

0912050303

$1.49

23

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

25

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

26

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

27

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

30

GAS LEVEL SENSOR 07

58207080200

$78.34

31

AH collar screw DIN 912 M5x16

0912050163

$1.49

32

CABLE TIE WITH PLUG M6

61011094000

$4.11

61

PLUG FOR SEAT

58407040060

$3.08

62

SEAT LOCK 05

61007050000

$23.00

40

SPOILER L/S WHITE

6110805000020B

Unavailable

41

SPOILER R/S WHITE

6110805100020B

Unavailable

63

SPACER RING SEAT LOCK 05

61007052000

$2.55

43

AH SCREW DIN6912 M6X12

0012060123

$2.05

44

HH collar screw M6x13 TX30

0024060136

$3.08

45

clip nut M6

54603048100

$4.11

46

INNER COVER SPOILER LEFT 07

61108050050

$13.06

47

INNER COVER SPOILER RIGHT 07

61108051050

$15.61

48

Washer DIN9021-A 6.4

0021060003

$2.05

50

EJOT PT screw K50x12

0081050121

$2.05

51

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

52

FRONT-END SPOILER CPL. WHITE

6100802014420B

Unavailable

53

THERMAL PROTECTION FOIL 07

61008020150

$20.04

54

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

56

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

64

SCREW M4 AF32 05

61007050020

$1.49

65

WASHER AF150 05

61007050010

$1.49

66

CLOSING PANEL TR248 05

61007050040

$3.48

67

WASHER TR12.01 05

61007050050

$3.48

68

NUT M19 X1 AF36 05

61007050030

$3.08

60

SEAT BLACK LOGO ORANGE 07

6100704000047

$151.63
