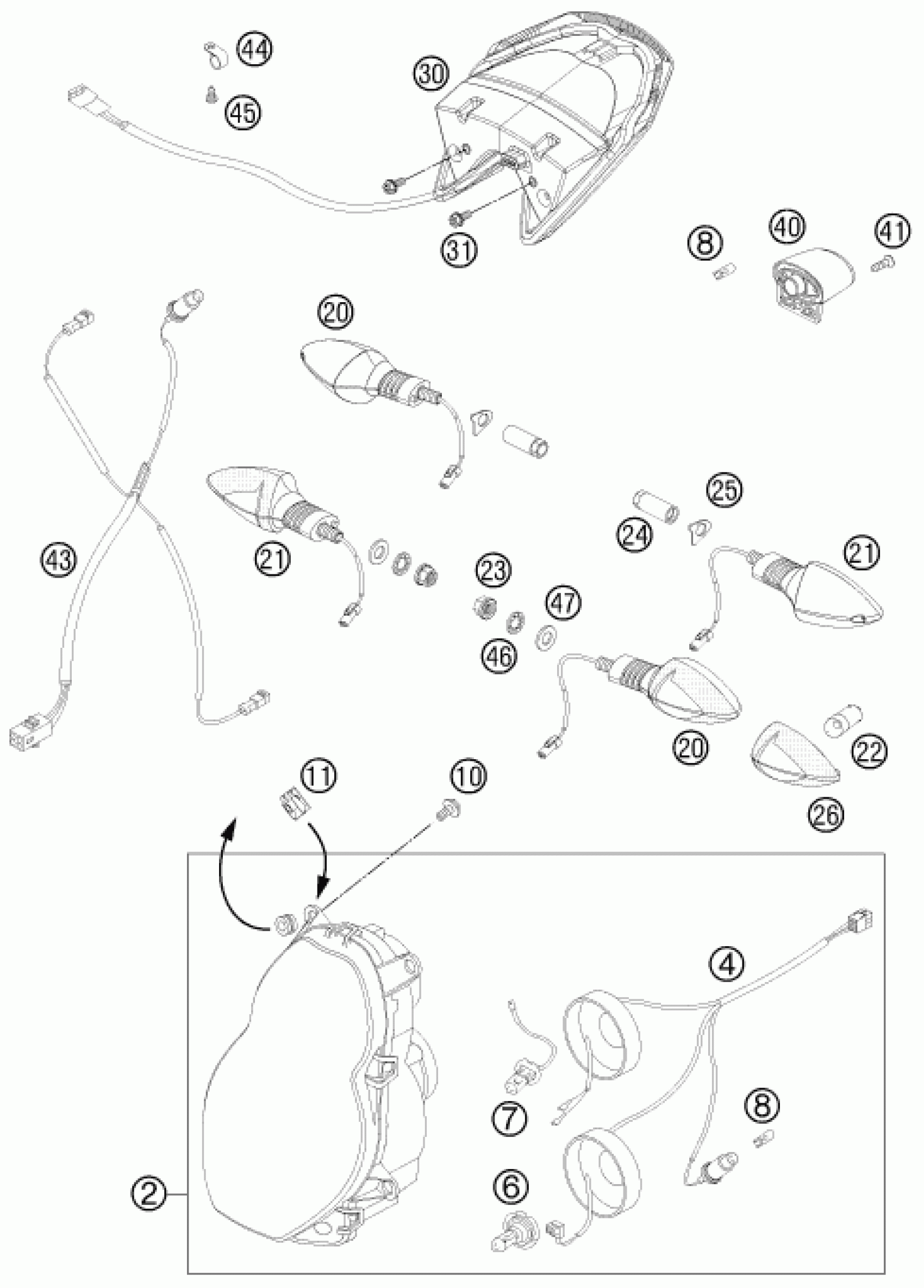

KTM 990 SUPER DUKE R 2011 LIGHTING SYSTEM Diagram

#

Description

Price

2

HEAD LIGHT RIGHT TR. EU 03

60014001000

Unavailable

4

HEAD LIGHT WIRING HARN. EU/GB

60014001050

Unavailable

6

BULB H7 12V 55W

60014003100

Unavailable

7

BULB H3 12V 55W

60014003000

Unavailable

8

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

10

HH collar screw M6x13 TX30

0024060136

Unavailable

11

RANGE CHANGE METAL NUT M6 INOX

54603048300

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

23

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

24

FLASHER NUT M10X1,25 WS=12

61014030000

Unavailable

25

FLASHER WASHER 05

61014031000

Unavailable

26

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

30

REAR LIGHT LED 07

75014040000

Unavailable

31

HH collar screw M5x12 TX30

0025050126

Unavailable

40

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

41

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

43

WIRING HARNESS REAR 07

61111076000

Unavailable

44

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

Unavailable

45

EJOT PT screw K50x12

0081050121

Unavailable

46

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

47

washer DIN 125 A 10.5

0125100003

Unavailable
