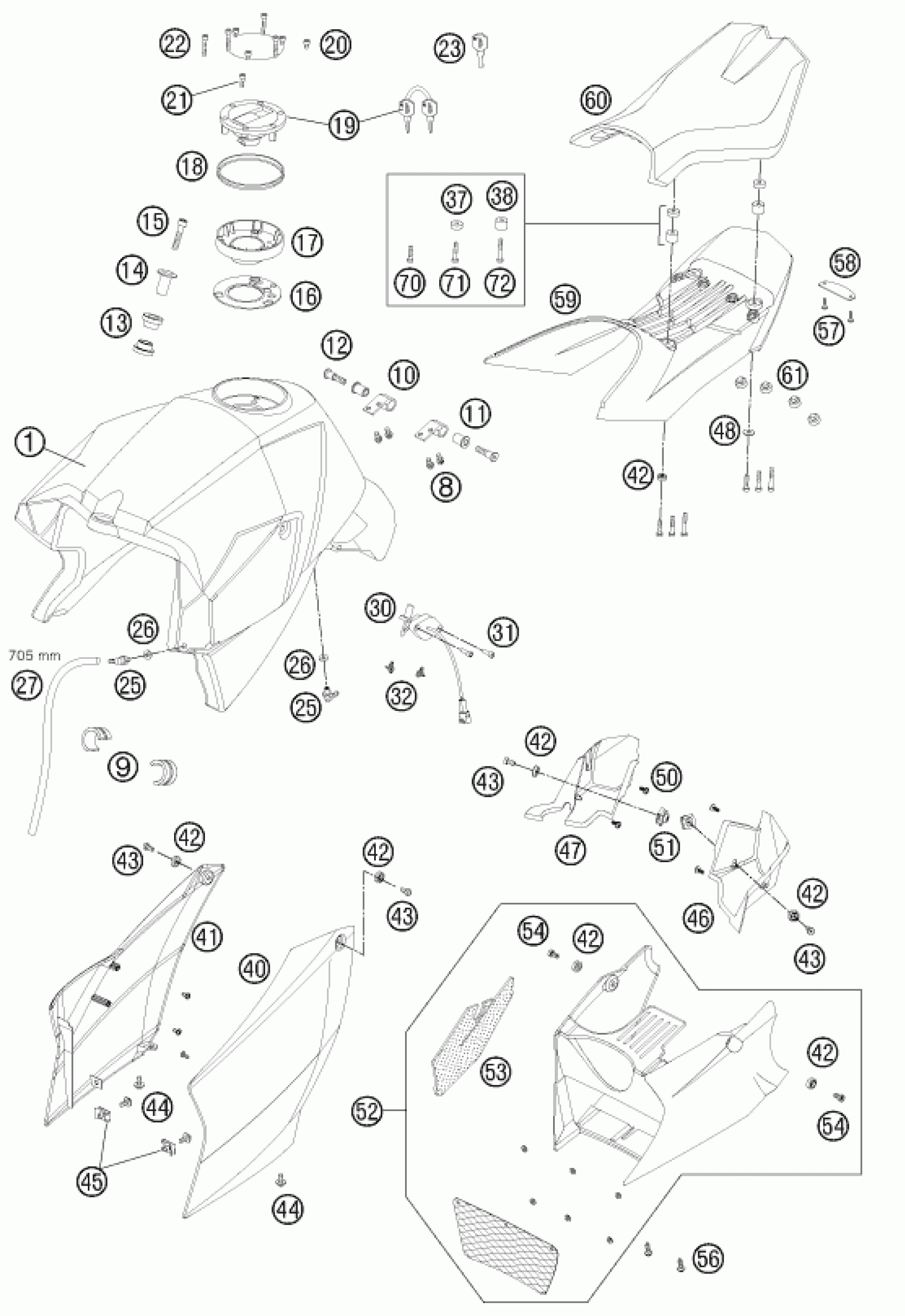

KTM 990 SUPER DUKE R 2011 TANK, SEAT Diagram

#

Description

Price

17

TANK INSERT 05

60007008150

Unavailable

18

SEAL. RING F. TANK INSERT 03

60007008052

Unavailable

19

TANK PLUG CPL. 05

61007008000

Unavailable

20

SHCS DIN 912 M5x8

0912050083

Unavailable

1

FUEL TANK SD-R 07

6110701300033A

Unavailable

8

HH collar screw M6x12 TX30

0025060126

Unavailable

9

SPACER FUEL TANK 05

61007014000

Unavailable

10

BRACKET FUEL TANK 05

61007025000

Unavailable

11

RUBBER BEARING FUEL TANK 05

61007027000

Unavailable

12

SPECIAL SCREW M10X36 AH 05

61007026000

Unavailable

13

collar bushing, front tank hol

61007065000

Unavailable

14

collar bushing, bearing, outsi

61007060000

Unavailable

15

AH collar screw DIN0912 M8x40

0912080403

Unavailable

16

SEAL. FLANGE F.TANK INSERT 03

60007008051

Unavailable

21

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

22

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

23

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

25

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

Unavailable

26

GASKET FOR CONNECTING PIECE 03

60007024050

Unavailable

27

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

30

GAS LEVEL SENSOR 07

58207080200

Unavailable

31

AH collar screw DIN 912 M5x16

0912050163

Unavailable

32

CABLE TIE WITH PLUG M6

61011094000

Unavailable

37

SPACER BUSHING SEAT 7MM 07

61107148007

Unavailable

38

SPACER BUSHING SEAT 15MM 07

61107148015

Unavailable

40

SPOILER L/S WHITE

6110805000020B

Unavailable

41

SPOILER R/S WHITE

6110805100020B

Unavailable

42

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

43

AH SCREW DIN6912 M6X12

0012060123

Unavailable

44

HH collar screw M6x13 TX30

0024060136

Unavailable

45

clip nut M6

54603048100

Unavailable

46

INNER COVER SPOILER LEFT 07

61108050050

Unavailable

47

INNER COVER SPOILER RIGHT 07

61108051050

Unavailable

48

Washer DIN9021-A 6.4

0021060003

Unavailable

50

EJOT PT screw K50x12

0081050121

Unavailable

51

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

53

THERMAL PROTECTION FOIL 07

61008020150

Unavailable

52

FRONT-END SPOILER CPL. WHITE

6100802014420B

Unavailable

54

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

56

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

57

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

58

LATCH SEAT SUPPORT 07

61107147060

Unavailable

59

SEAT SUPPORT 07

61107147000

Unavailable

60

SEAT 07

61107140000

Unavailable

61

PLUG FOR SEAT

58407040060

Unavailable

70

AH SCREW DIN6912-M 6X16

0984060163

Unavailable

71

AH SCREW DIN6912-M 6X20 8.8

0984060203

Unavailable

72

AH SCREW DIN6912 M6X30 8.8

0012060303

Unavailable
