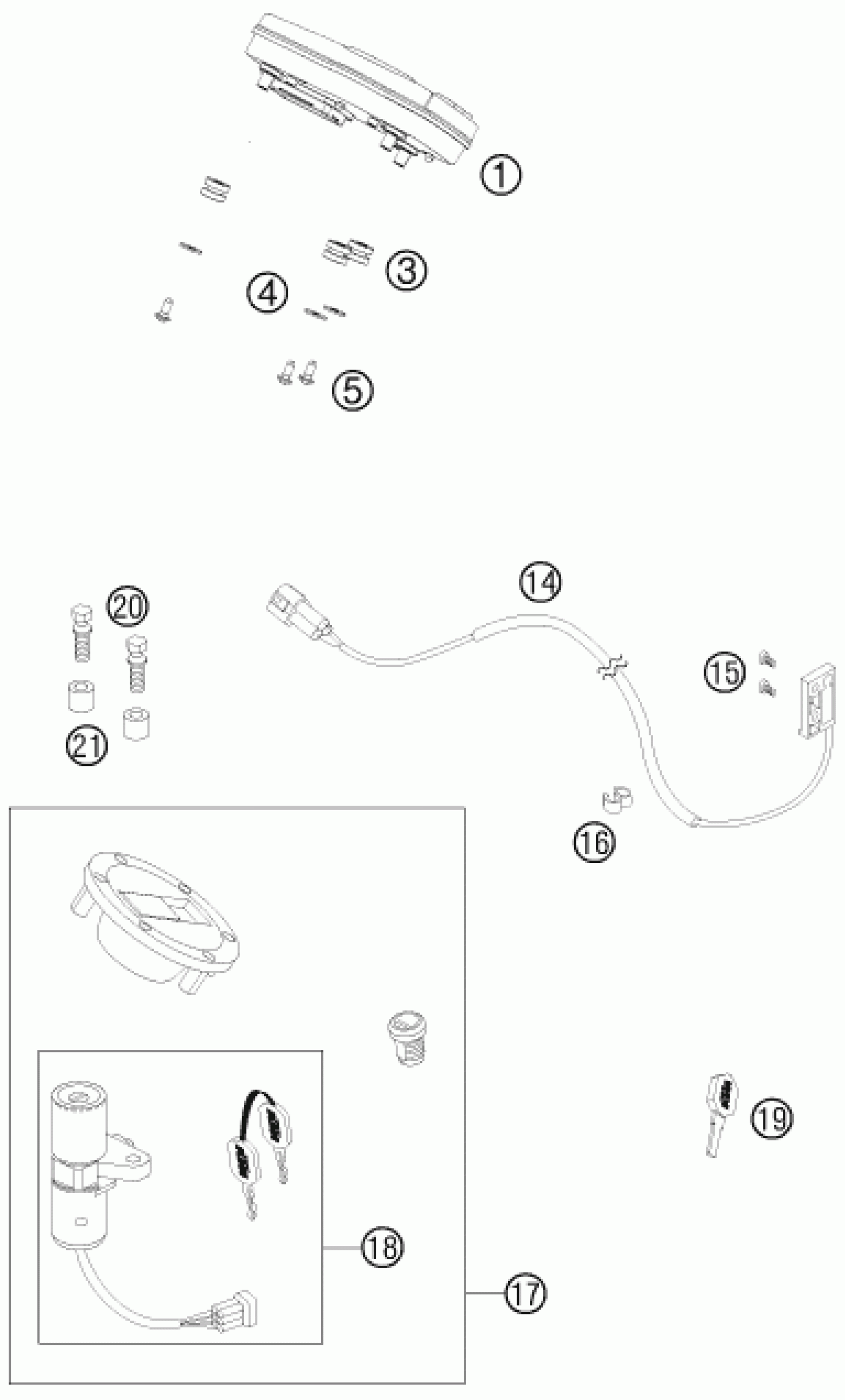

KTM 990 SUPER DUKE R 2011 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

SPEEDOMETER 10

61114269000

Unavailable

3

rubber grommet 16x10.8x3

58214069051

Unavailable

4

washer DIN 9021 A - 5.3

0021050003

Unavailable

5

SCREW FOR PLASTIC K45X12 T20

0081045121

Unavailable

14

SPEEDOMETER SENSOR 10

61014068100

Unavailable

15

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

16

CLIP 5/7 MM 06

60111094000

Unavailable

17

LOCK SYSTEM 990 SD USA

61011166044

Unavailable

18

IGNITION LOCK LC8 ADV. 03

60011066000

Unavailable

19

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

20

TAMPER-PROOF SCREW 07

61111064000

Unavailable

21

SPACER BUSHING 8,4X16X14MM 07

61101035000

Unavailable
