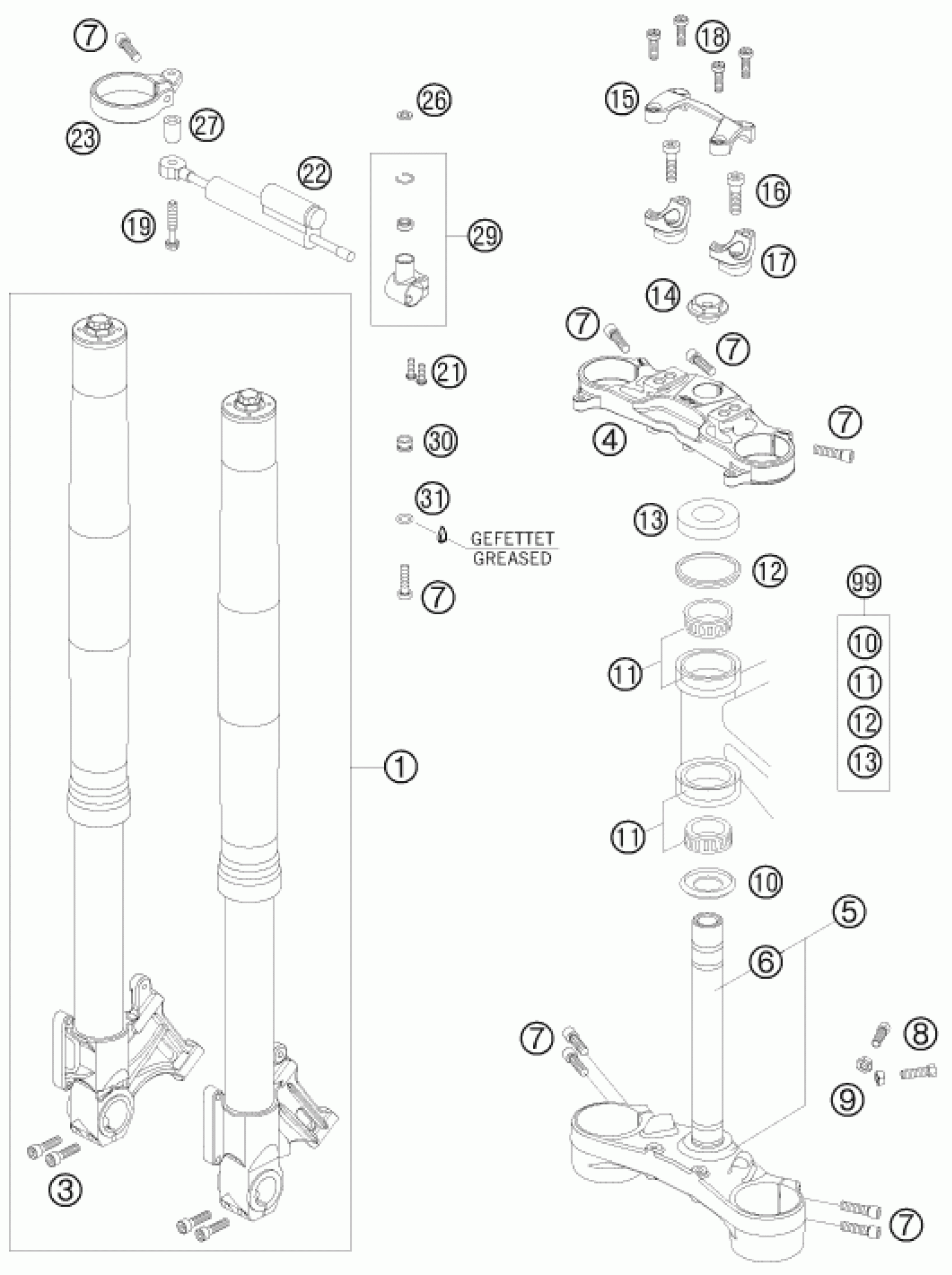

KTM 990 SUPER DUKE R 2010 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FRONT FORK 990 SD-R 2010

14187J3101

Unavailable

3

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

27

BUSHING 8,3X14X17X22,5 07

61112006060

Unavailable

29

STEERING DAMPNER CLAMP

61112006133

Unavailable

30

SPACER BUSHING 8,3X12X8 07

61112006070

Unavailable

4

TOP TRIPLE CLAMP 990SD 29MM 07

6110113402930

Unavailable

5

BOTTOM TRIPLE CLAMP 07

6110103202933S

Unavailable

6

FORK TUBE LC8 ADV 03

60001033000

Unavailable

7

AH SCREW DIN6912-M 8X30

0012080303

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

9

Hexagon nut DIN934 M8

0934080003

Unavailable

10

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

11

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

12

STEARING HEAD GASKET TOP

54601184000

Unavailable

13

STEERING HEAD COVER 05

61001086000

Unavailable

14

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

Unavailable

15

HANDLEBAR CLAMP BLACK 07

6110103800030

Unavailable

16

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

17

HANDLEBAR SUPPORT D=28 H=32 BL

5940103903230

Unavailable

18

CYL.HEAD SCREW DIN6912-M 8X25

0012080253

Unavailable

19

HH collar screw M8x45 TX40

0025080456

Unavailable

21

BHCS ISO 7380 M6X18

0738060181

Unavailable

22

STEERING DAMPER WITHOUT CLAMP

16181D0103

Unavailable

23

FORK CLAMP FOR DAMPNER

61112006100

Unavailable

26

WASHER 8,3X14X2 07

61112006080

Unavailable

31

O-RING 9X2 VITON

0770090021

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
