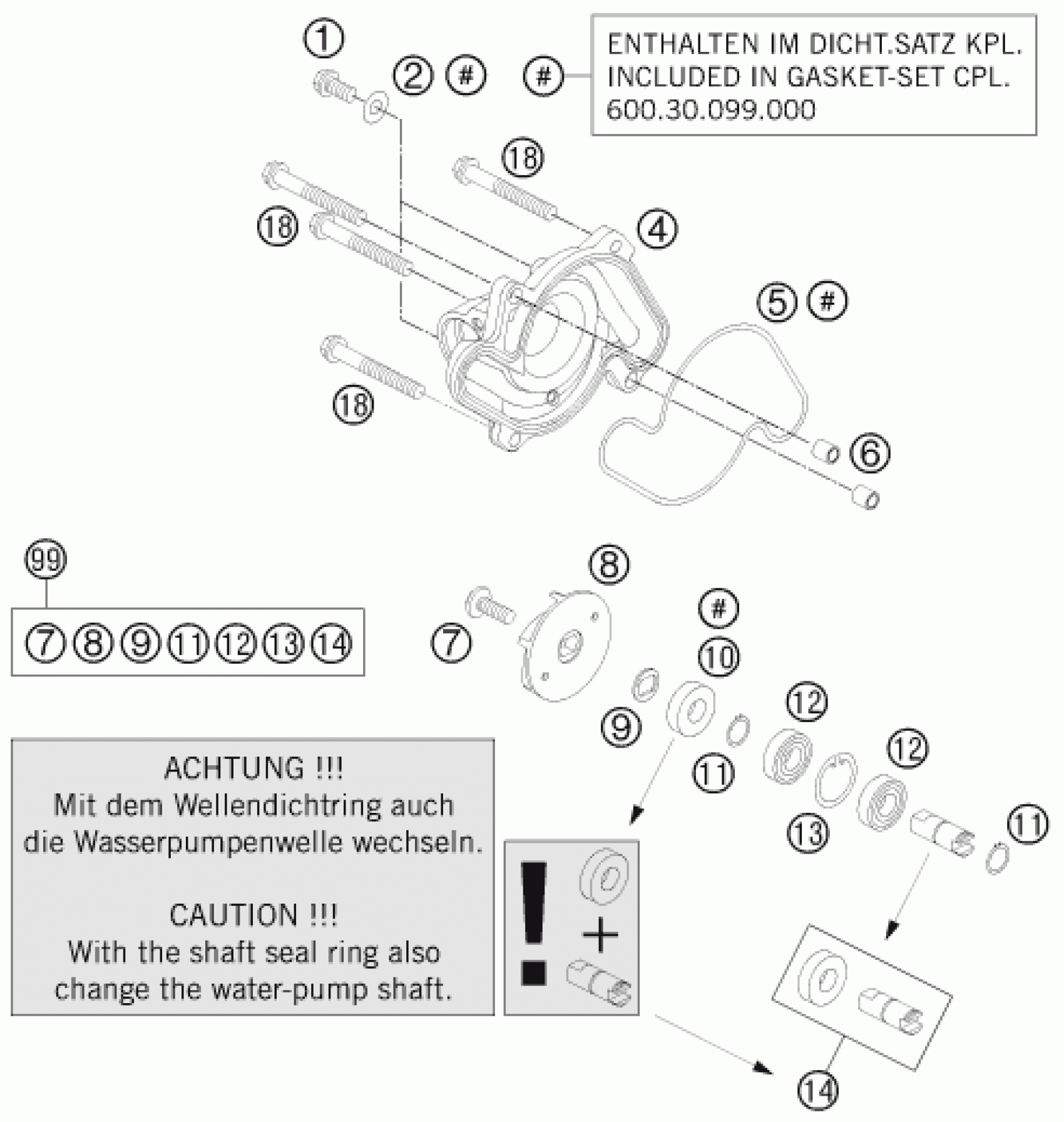

KTM 990 SUPER DUKE R 2009 WATER PUMP Diagram

#

Description

Price

1

HH collar screw M6x10 TX30

0025060106

$3.08

2

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

4

MOLDED RING WATER PUMP COV. 09

6113505200023

Unavailable

5

WATER-PUMP GASKET 03

60035053000

$6.72

6

dowel sleeve 6x8x11.5

59030023000

$1.49

7

HH collar screw M6x15 TX30

0024060156

$3.08

8

WATER PUMP ROTOR 08

61235055000

$7.66

9

double-d washer 16x1 SST

60035055150

$1.49

10

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

11

retaining ring DIN 471 12x1

0471120010

$1.49

12

GROOVED BALL BEARING 6901V C3

0625069010

$20.37

13

CIRCLIP DIN472 D=24X1,2

0472240120

$1.49

14

WATER PUMP SHAFT W. SEAL RING

61135054044

$63.90

18

HH collar screw M6x60 TX30

0025060606

$3.08

99

WATER PUMP REP. KIT 09-12

61235055010

Unavailable
