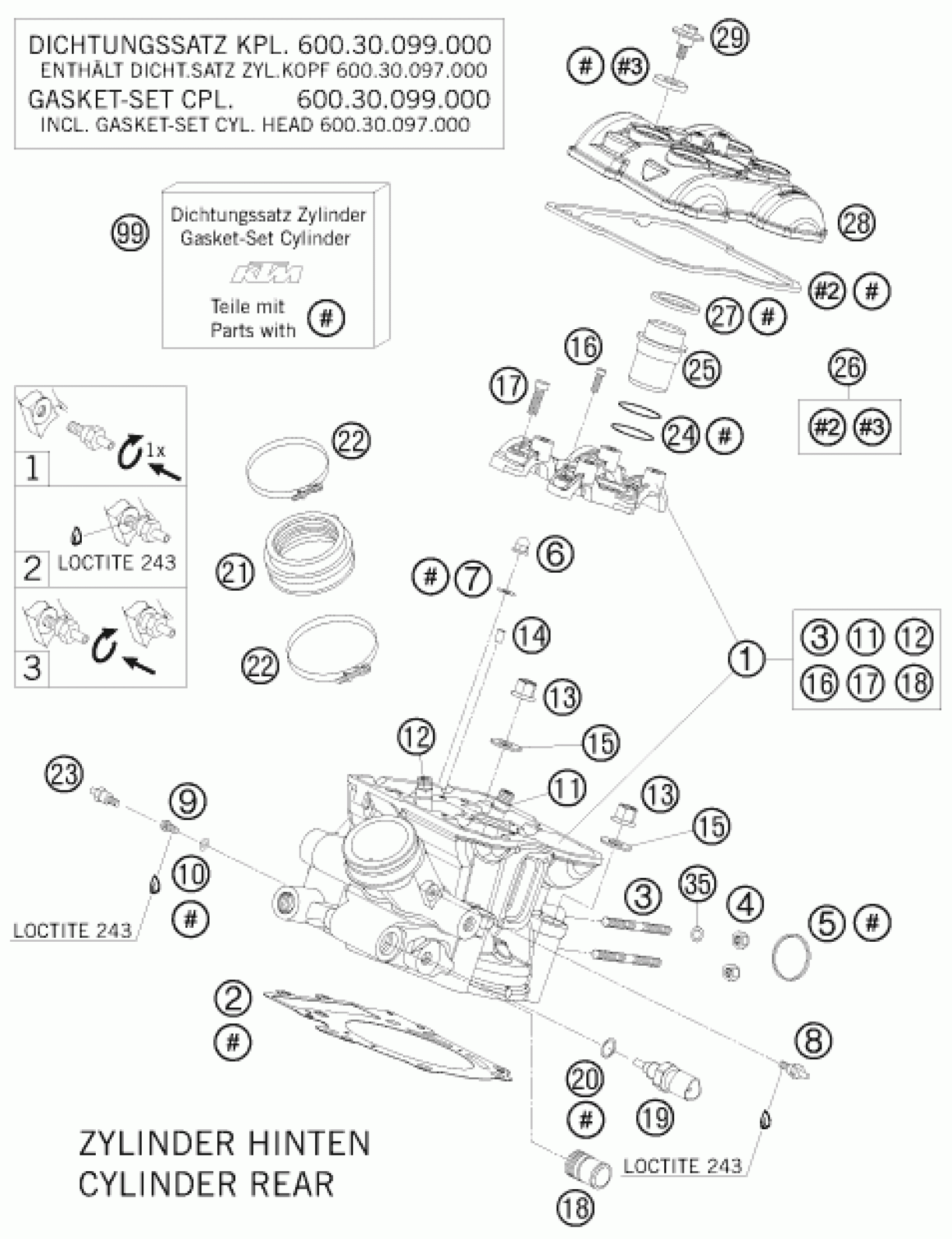

KTM 990 SUPER DUKE R 2009 CYLINDER HEAD REAR Diagram

#

Description

Price

1

CYLIDNER HEAD CPL. REAR 08

6113612014423

Unavailable

2

CYLINDER HEAD GASKET 0,5 101MM

60030036000

$53.57

3

STUD DIN0835-M 8X25 10.9

0835080256

$3.08

4

self-locking nut M8 Cu

51010086100

$3.08

5

Exhaust gasket 05

61005005000

$10.00

6

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

7

WASHER DIN0125-A 6,4

0125060003

$1.49

8

VACUUM CONECTION 2006

61036023100

$10.46

9

COLLAR SCREW M6X8 TX

0025060083

Unavailable

10

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

11

VALVE GUIDE OUTLET

61136026001

Unavailable

12

VALVE GUIDE OUTTAKE

61136025001

Unavailable

13

hex collar nut M10 WS13

60036078200

$3.08

14

needle roller DIN 5402 5x9.8

0402050980

$1.49

15

SHIM 10,2X19X1,5MM 05

60036078050

$3.08

16

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.49

17

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.49

18

WATER CONNECTION

61135019000

Unavailable

19

TEMPERATURE SENSOR WATER 07

75035047000

$24.40

20

o-ring 10.00x2.00 silicone

0770100020

$2.05

21

RUBBERSLEEVE INTAKE FLANGE

61136044000

Unavailable

22

hose clamp Gemi 66

61236048000

$9.53

23

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

27

spark plug shaft gasket

61136075050

$1.49

24

O-RING 29,87X1,78 VITON

0770298178

$2.05

25

INSERT SPARK-PLUG SHAFT

61136075100

Unavailable

26

VALVE COVER GASKETSETFR+RR

61136099000

Unavailable

28

VALVE COVER REAR 09

6113615200023

Unavailable

29

collar screw M 6 WS=10 03

60036052020

$3.08

35

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

99

GASKET SET CYL. HEAD KPL. 03

60030097000

$283.20
