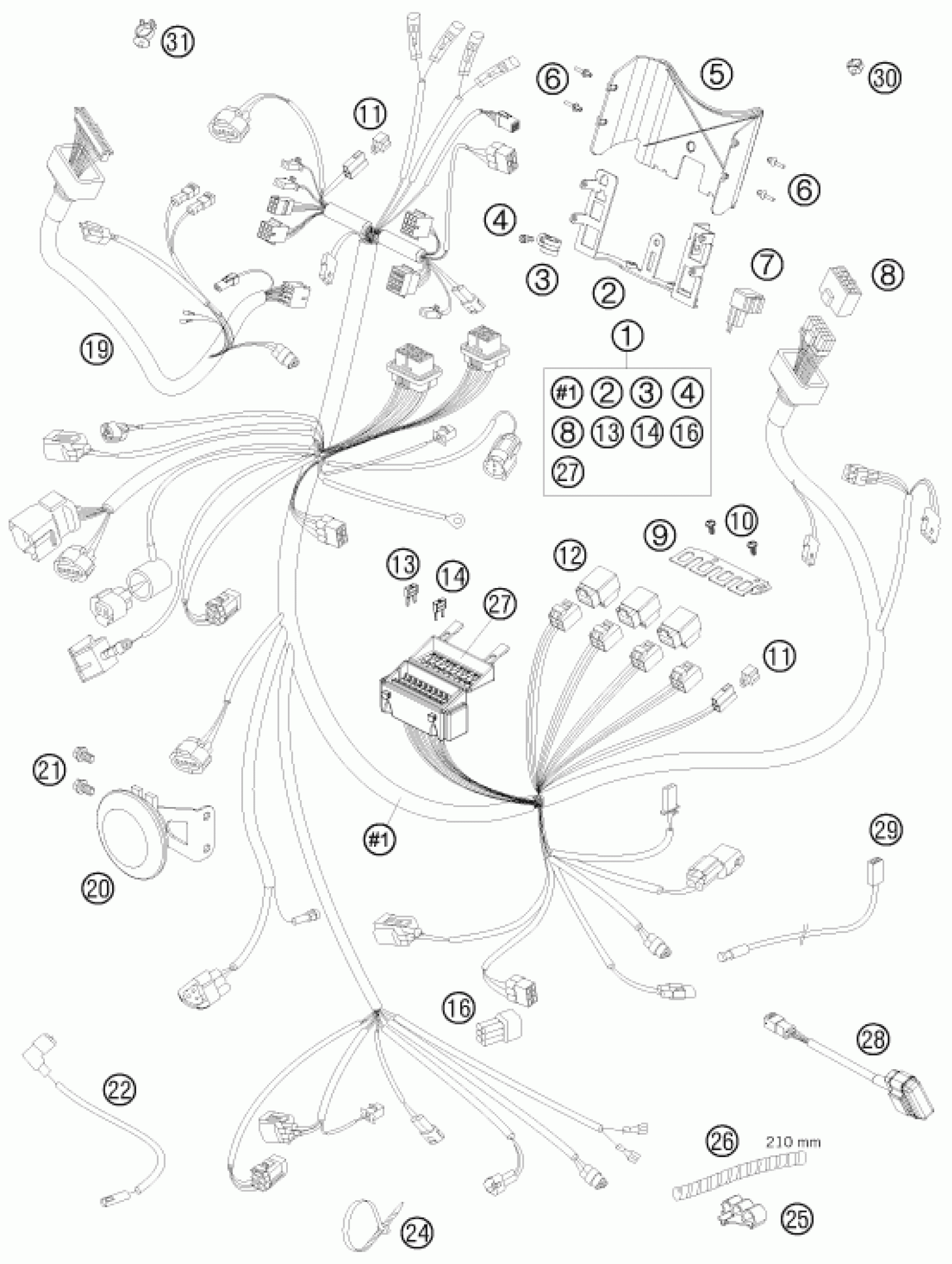

KTM 990 SUPER DUKE R 2008 WIRING HARNESS Diagram

#

Description

Price

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

24

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

24

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

25

WIRING HOLDER 05

61011093000

$3.48

26

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

27

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

28

STARTER INTERLOCK

61111020000

$97.89

29

TEMPERATURE SENSOR 07

61111018000

$31.59

30

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

31

CABLE SUPPORT 07

61111041000

Unavailable

8

DUMMY PLUG ALARM SYSTEM 05

61011075020

$14.67

9

BRACKET RELAY 07

61111057050

$10.08

10

SCREW FOR PLASTIC 50X12

0016050121

$2.05

11

DIODE S3H-15 97

58411096100

$9.81

12

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

13

FUSE 10A 07

75011088010

Unavailable

14

FUSE 15A 07

75011088015

Unavailable

16

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

19

WIRING HARNESS FRONT 07

61111079000

$65.44

20

DC HORN CPL. 05

61011060000

$31.88

21

HH collar screw M6x10 TX30

0025060106

$3.08

1

MAIN WIRING HARNESS SD-R 08

61111175000

Unavailable

2

BRACKET FOR PLUGS CPL. 05

61011083000

$36.07

3

CLAMP RSGU 15/12

49007439000

$5.23

4

AH SCREW DIN0912-M 5X10

0912050103

$1.49

5

BRACKET FOR PLUGS COVER 05

61011083020

$5.92

6

PLASTIC CAP FOR M6 03

60003088000

$1.49

7

FLASHER UNIT 97

44611207200

$49.83
