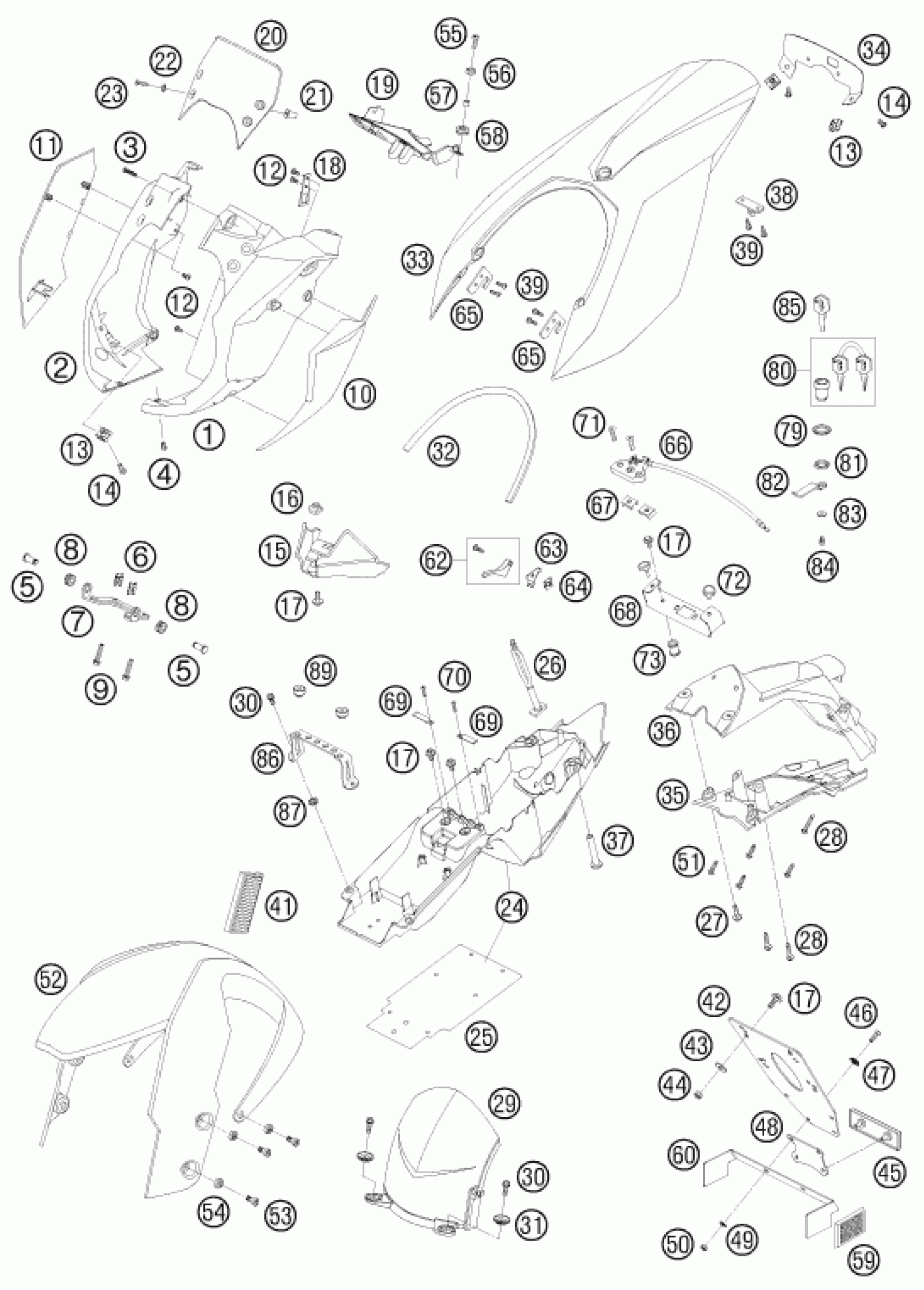

KTM 990 SUPER DUKE R 2008 MASK, FENDERS Diagram

SPLASH PROTECT. FRAME HEAD 05

61003094000

$4.35

SCREW FOR PLASTIC 03

0016050253

$1.49

HEAD LIGHT MASK LEFT 07

61108001000

$11.40

HEAD LIGHT MASK RIGHT 07

61108002000

$11.40

EXPANDING RIVET PA6 BLACK

61103088000

$2.05

BOLT F. LINK FORK 8X20X16,5

60013057000

$4.11

SECURING CLIP D=8MM 03

60013058000

$2.05

HINGE JOINT BOTTOM 99

58708002000

$22.09

SPEEDOMETER BRACKET 07

61108005000

$11.40

WIND SHIELD 07

61108065000

$51.32

blind plug nut M5 WN16A

60008008050

$3.73

SPECIAL WASHER D=12MM 03

60008046000

$4.11

FLAT HEAD SCREW DIN7991 5X20

0991050204

$2.05

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

HH collar screw M6x15 TX30

0024060156

$3.08

BRACKET STARTER 07

61111020050

$5.23

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

SPECIAL WASHER

61108045000

$4.11

AH SCREW DIN6912 M6X25

0984060252

$2.05

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

COLLAR BUSHING 6,2X7,5X12,5

61108006100

$3.08

rubber grommet 16x10.8x3

58214069051

$5.23

SIDE REFLECTOR RED REAR

16512180100

$7.10

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

LEVER + SCREW CPL. 05

58607051044

$14.30

SUPP. PLATE SEAT LOCK LEVER 07

61107154000

Unavailable

RANGE CHANGE METAL NUT M5

54603048200

$5.23

SUPPORT REAR END UP. PART 07

61108118080

Unavailable

SEAT LOCK LC8 ADV. 03

60007050000

$74.51

clip nut M6

54603048100

$4.11

SUPPORT PLATE REAR END LOCK 07

61108118090

Unavailable

SUPPORT PLATE CABLE HARNESS 07

61108119080

Unavailable

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

FLAT HEAD SCREW DIN7991-M 6X25

0991060253

$1.49

Distance rupper airbox 03

60006001021

$2.05

BUSHING REAR END LOWER PART 07

61108129000

Unavailable

WASHER TR12.01 05

61007050050

$3.48

SEAT LOCK 05

61007050000

$23.00

NUT M19 X1 AF36 05

61007050030

$3.08

LATCH SEAT SB-SCHL. 07

61107153100

Unavailable

WASHER AF150 05

61007050010

$1.49

SCREW M4 AF32 05

61007050020

$1.49

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

BRACKET SEAT SUPPORT 07

61107149000

Unavailable

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

PLUG FOR SEAT

58407040060

$3.08

REAR END LOW. PART CPL. 07

61108119044

Unavailable

THER.PROT.FOIL RR LOW.PART07

61108121000

Unavailable

RUBBER L=145MM

50303018000

$6.44

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

SUPPORT PLATE TAILLIGHT 07

61108118085

Unavailable

NUM. PLATE SUPPORT LO. PART 07

61108115000

Unavailable

NUM. PLATE SUPPORT UP. PART 07

61108122000

Unavailable

BOLT REAR END LOWER PART 07

61108130000

Unavailable

SEAT PEG CPL. 07

61107140060

Unavailable

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

REFLECTOR YELLOW '99

58412080100

$7.75

license plate mouning plate

60012081200

$8.41

Washer DIN9021-A 6.4

0021060003

$2.05

Self lock. nut DIN985-M6-A2

0985060003

$2.05

REFLECTOR RED

58412080000

$5.23

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

WASHER 6MM

40006006000

$1.49

BRACKET FOR REFLECTOR

58412080050

$6.07

WASHER DIN0125-A 5,3

0125050003

$1.49

rubber grommet D=8mm open

31008060000

$2.05

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

MASK SPOILER L/S BLACK MATT 07

6110800300033A

Unavailable

MASK SPOILER R/S BLACK MATT 07

6110800400033A

Unavailable

SCREW FOR PLASTIC 50X12

0016050121

$2.05

RANGE CHANGE METAL NUT M6 INOX

54603048300

$5.23

OVAL HEAD SCREW ISK. ISO7380

0738060121

$1.49

SPLASH PROTECT. 05

61008014000

$30.57

HH collar screw M6x16 TX30

0025060166

$3.08

BUCKET

72210079000

$3.00

EDGE PROTECTOR L=446MM 07

61108118070

Unavailable

REAR-END HIGH.P. MONOS.CPL 07

6110811803333A

Unavailable

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

FRONT FENDER BLACK 07

6110801000030

$195.97

Self locking nut DIN 985 M5

0985050003

$2.05
