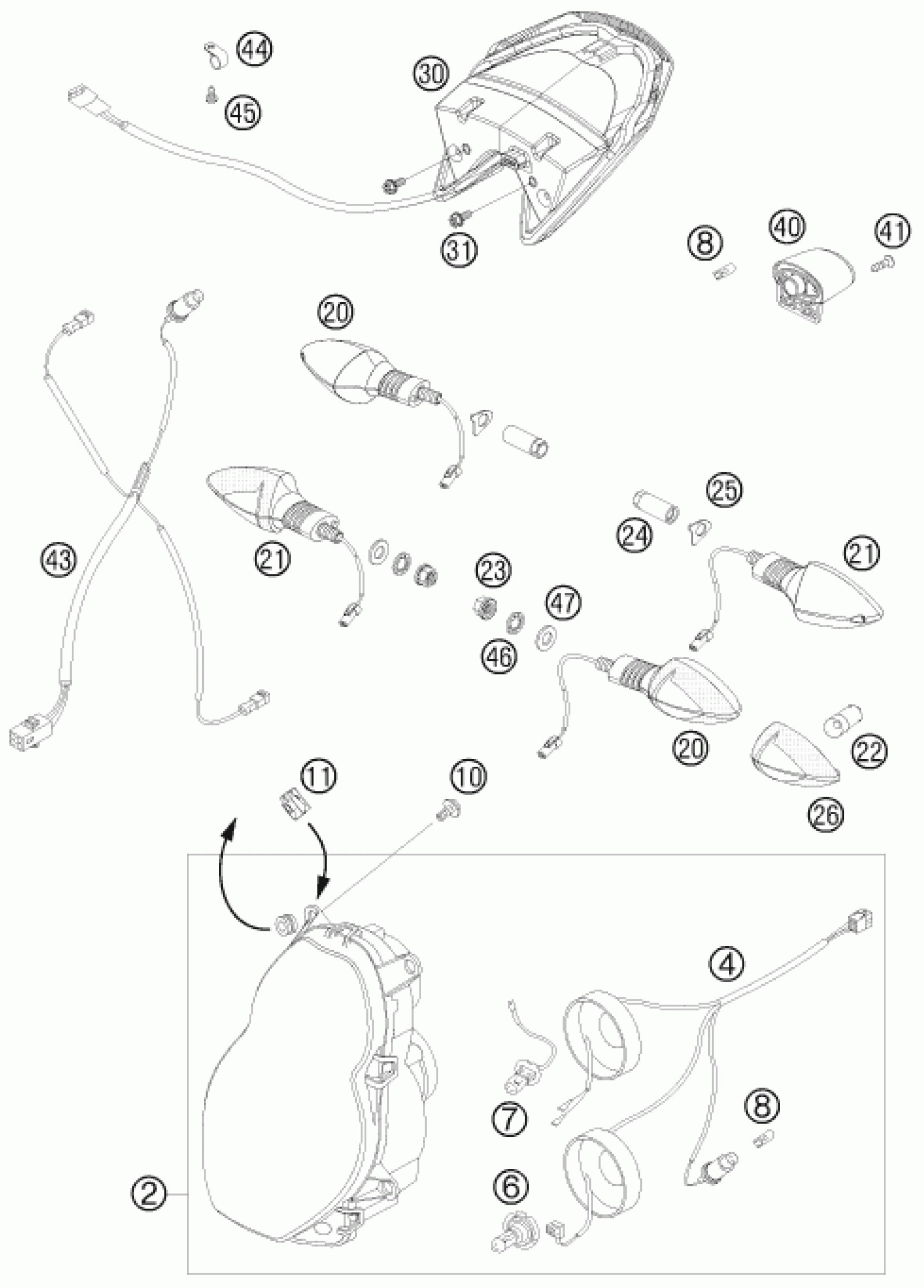

KTM 990 SUPER DUKE R 2008 LIGHTING SYSTEM Diagram

#

Description

Price

2

HEAD LIGHT LEFT TRAFFIC 03

60014501000

Unavailable

4

HEAD LIGHT WIRING HARN. EU/GB

60014001050

$46.18

6

BULB H7 12V 55W

60014003100

$30.38

7

BULB H3 12V 55W

60014003000

$10.84

8

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

10

HH collar screw M6x13 TX30

0024060136

$3.08

11

RANGE CHANGE METAL NUT M6 INOX

54603048300

$5.23

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

22

BULB 12V ORANGE (RY10W)

60114027000

$6.63

23

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

24

FLASHER NUT M10X1,25 WS=12

61014030000

$9.44

25

FLASHER WASHER 05

61014031000

$4.11

26

FLASHER LENS L/S R/S TRANSP.06

60114028000

$5.51

30

REAR LIGHT LED 07

75014040000

$146.13

31

HH collar screw M5x12 TX30

0025050126

$3.08

40

LICENSE PLATE ILLUMINATION 07

75014047000

$10.37

41

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

43

WIRING HARNESS REAR 07

61111076000

$28.42

44

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

45

SCREW FOR PLASTIC 50X12

0016050121

$2.05

46

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

47

washer DIN 125 A 10.5

0125100003

$2.05
