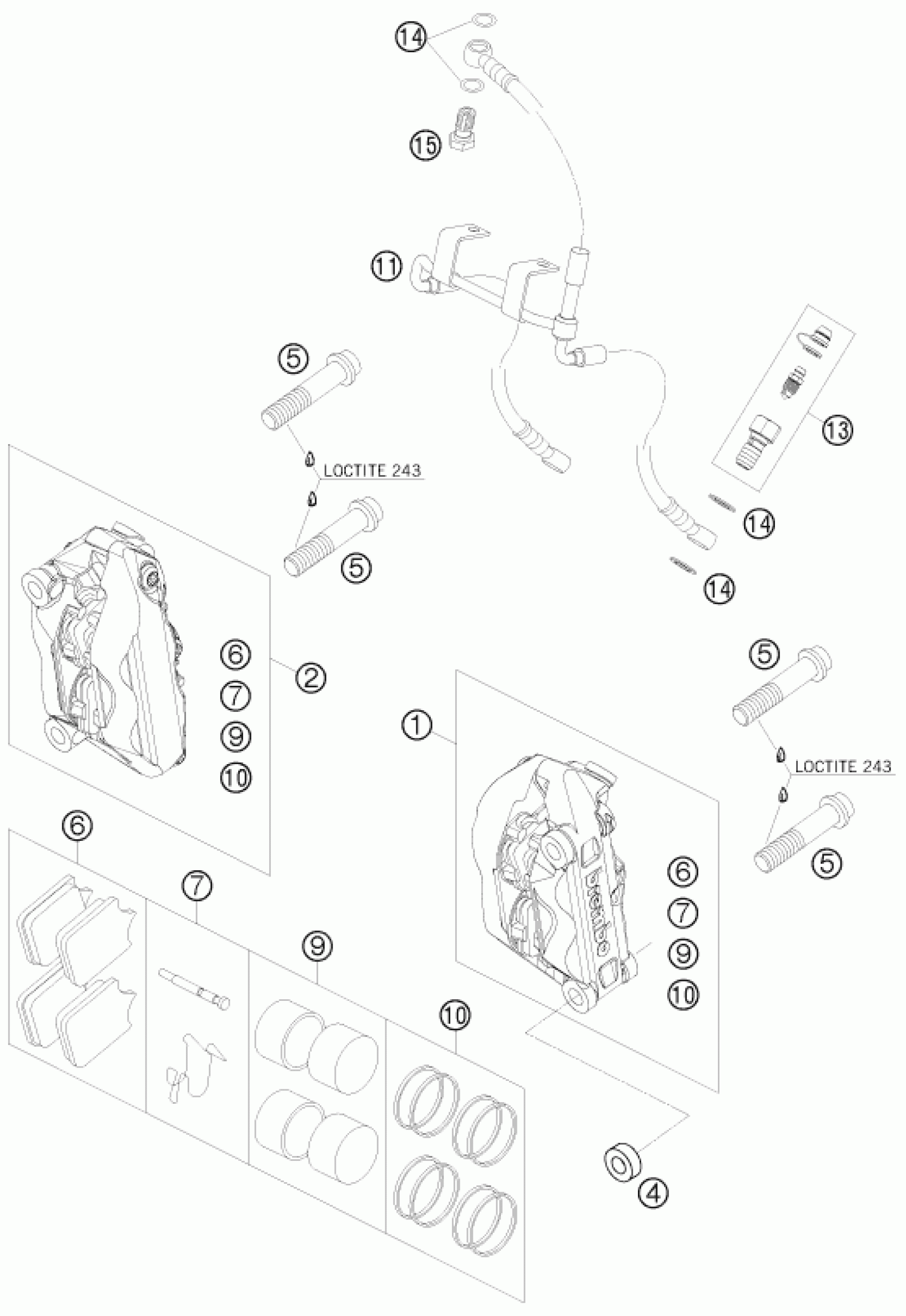

KTM 990 SUPER DUKE R 2008 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER RAD. L/S BLK07

6251311500030

$278.68

2

BRAKE CALIPER RAD. R/S BLACK07

6251311600030

Unavailable

4

SPACER BUSHING 10,1X20X7,5 07

6111302200033

Unavailable

5

AH collar screw M10x1.25x65 s-

0035100659

$5.23

6

BRAKE PAD FR. HAWK 7342-49

61013030100

$73.67

6

BRAKE PAD FR. TOSHIBA TT2172HH

61013030000

Unavailable

7

PINS + SPRINGS F. BRAKECALIPER

61013018000

$30.38

9

BRAKE PISTONS 4X

61013019000

$79.00

10

REP.KIT SEALING RINGS 4X

61013019100

$33.65

11

FRONT BRAKING HOSE CPL.

61113012000

$154.07

13

BLEEDER SCREW CPL. 05

62513020000

$27.48

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

banjo bolt M10x1x19 black

54813020100

$9.90
