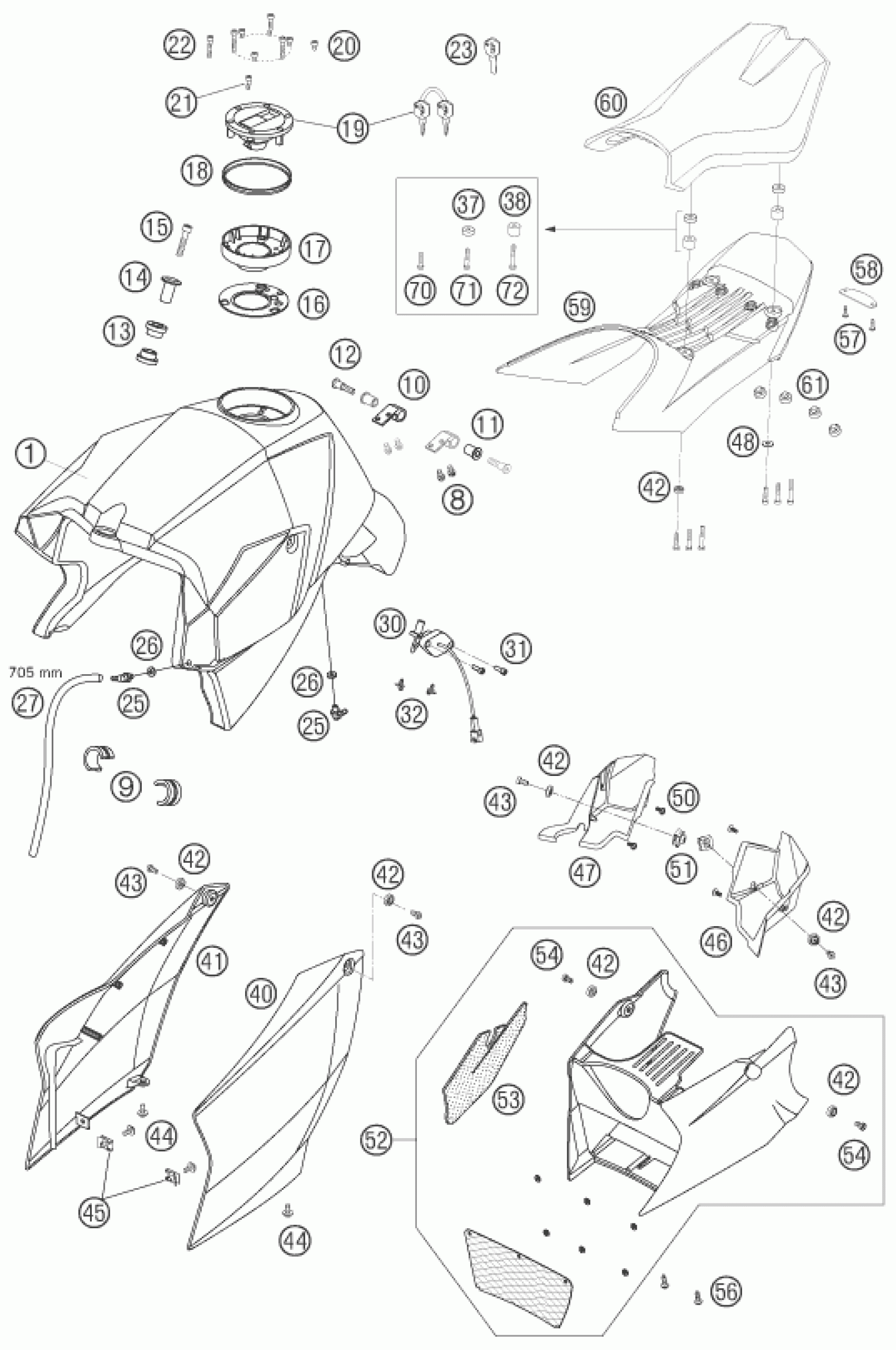

KTM 990 SUPER DUKE R 2007 TANK, SEAT Diagram

#

Description

Price

1

FUEL TANK SD-R 07

6110701300033A

Unavailable

9

SPACER FUEL TANK 05

61007014000

$6.63

10

BRACKET FUEL TANK 05

61007025000

$15.41

11

RUBBER BEARING FUEL TANK 05

61007027000

$4.35

12

SPECIAL SCREW M10X36 AH 05

61007026000

$5.23

13

collar bushing, front tank hol

61007065000

$7.85

14

collar bushing, bearing, outsi

61007060000

$9.90

15

AH collar screw DIN0912 M8x40

0912080403

$2.05

16

SEAL. FLANGE F.TANK INSERT 03

60007008051

$6.54

17

TANK INSERT 05

60007008150

$19.53

18

SEAL. RING F. TANK INSERT 03

60007008052

$4.11

19

TANK PLUG CPL. 05

61007008000

$121.92

20

SHCS DIN 912 M5x8

0912050083

$1.49

21

AH SCREW DIN0912-M 5X12

0912050123

$2.05

22

AH SCREW DIN0912-M 5X30

0912050303

$1.49

25

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

26

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

27

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

30

GAS LEVEL SENSOR 07

58207080200

$78.34

31

AH collar screw DIN 912 M5x16

0912050163

$1.49

32

CABLE TIE WITH PLUG M6

61011094000

$4.11

42

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

43

AH SCREW DIN6912 M6X12

0012060123

$2.05

44

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

40

SPOILER L/S BLACK MATT 07

6110805000033A

Unavailable

41

SPOILER R/S BLACK MATT 07

6110805100033A

Unavailable

45

clip nut M6

54603048100

$4.11

46

INNER COVER SPOILER LEFT 07

61108050050

$13.06

47

INNER COVER SPOILER RIGHT 07

61108051050

$15.61

50

SCREW FOR PLASTIC 50X12

0016050121

$2.05

51

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

52

FRONT-END SPOILER CPL. BL. 05

6100802014430A

Unavailable

53

THERMAL PROTECTION FOIL 07

61008020150

$20.04

54

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

56

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

60

SEAT 07

61107140000

Unavailable

61

DISTANCE RUBBER SEAT 05

61007040010

$3.08

59

SEAT SUPPORT 07

61107147000

Unavailable

58

LATCH SEAT SUPPORT 07

61107147060

Unavailable

57

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

37

SPACER BUSHING SEAT 7MM 07

61107148007

Unavailable

38

SPACER BUSHING SEAT 15MM 07

61107148015

Unavailable

8

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

70

AH SCREW DIN6912-M 6X16

0984060163

$2.05

71

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

72

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

48

Washer DIN9021-A 6.4

0021060003

$2.05

23

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable
