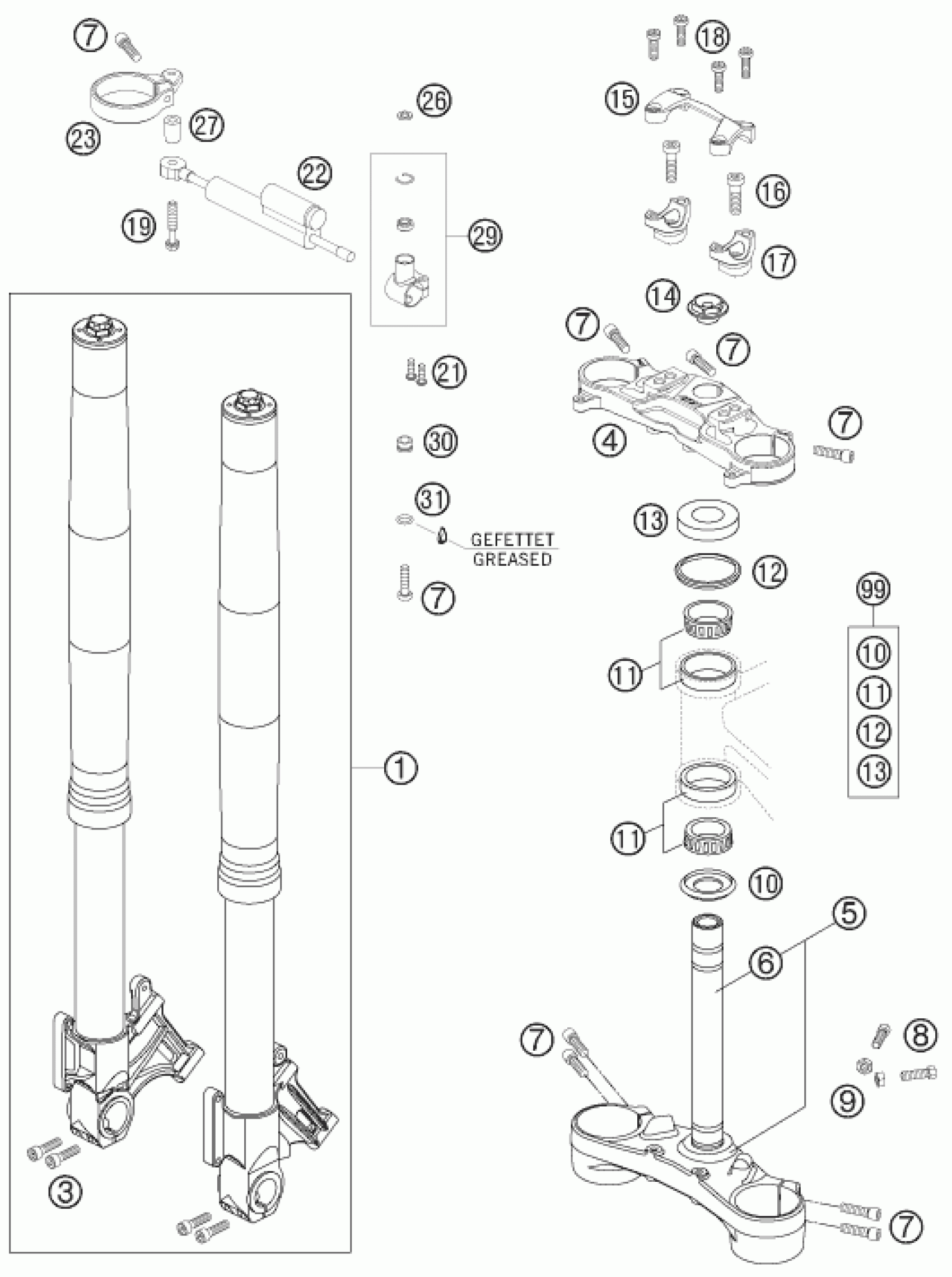

KTM 990 SUPER DUKE R 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

19

HH COLLAR SCREW M 8X45 WS=10

0015080453

$2.05

21

BHCS ISO 7380 M6X18

0738060181

$2.05

26

WASHER 8,3X14X2 07

61112006080

$4.11

27

BUSHING 8,3X14X17X22,5 07

61112006060

Unavailable

29

CLAMP STEERING DAMPER CPL. 07

61112006033

Unavailable

30

SPACER BUSHING 8,3X12X8 07

61112006070

Unavailable

31

O-RING 9X2 VITON

0770090021

$1.49

1

FORK 4860 ROMA 990 SD-R 07

14187C31

Unavailable

3

AH SCREW DIN0912-M 8X30

0912080303

$2.05

4

TOP TRIPLE CLAMP 990SD 29MM 07

6110113402930

Unavailable

5

BOTTOM TRIPLE CLAMP 07

6110103202933S

Unavailable

6

FORK TUBE LC8 ADV 03

60001033000

$65.16

7

AH SCREW DIN6912-M 8X30

0012080303

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

10

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

11

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

12

STEARING HEAD GASKET TOP

54601184000

$7.10

13

STEERING HEAD COVER 05

61001086000

$13.92

14

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

$14.58

15

HANDLEBAR CLAMP BLACK 07

6110103800030

Unavailable

16

AH SCREW DIN6912-M10X35 10.9

0912100356

$4.11

17

HANDLEBAR SUPPORT D=28 H=32 BL

5940103903230

$34.87

18

CYL.HEAD SCREW DIN6912-M 8X25

0012080253

Unavailable

22

STEERING DAMPER

61012005000

Unavailable

23

BRACKET STEERING DAMPER 07

61112006000

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
