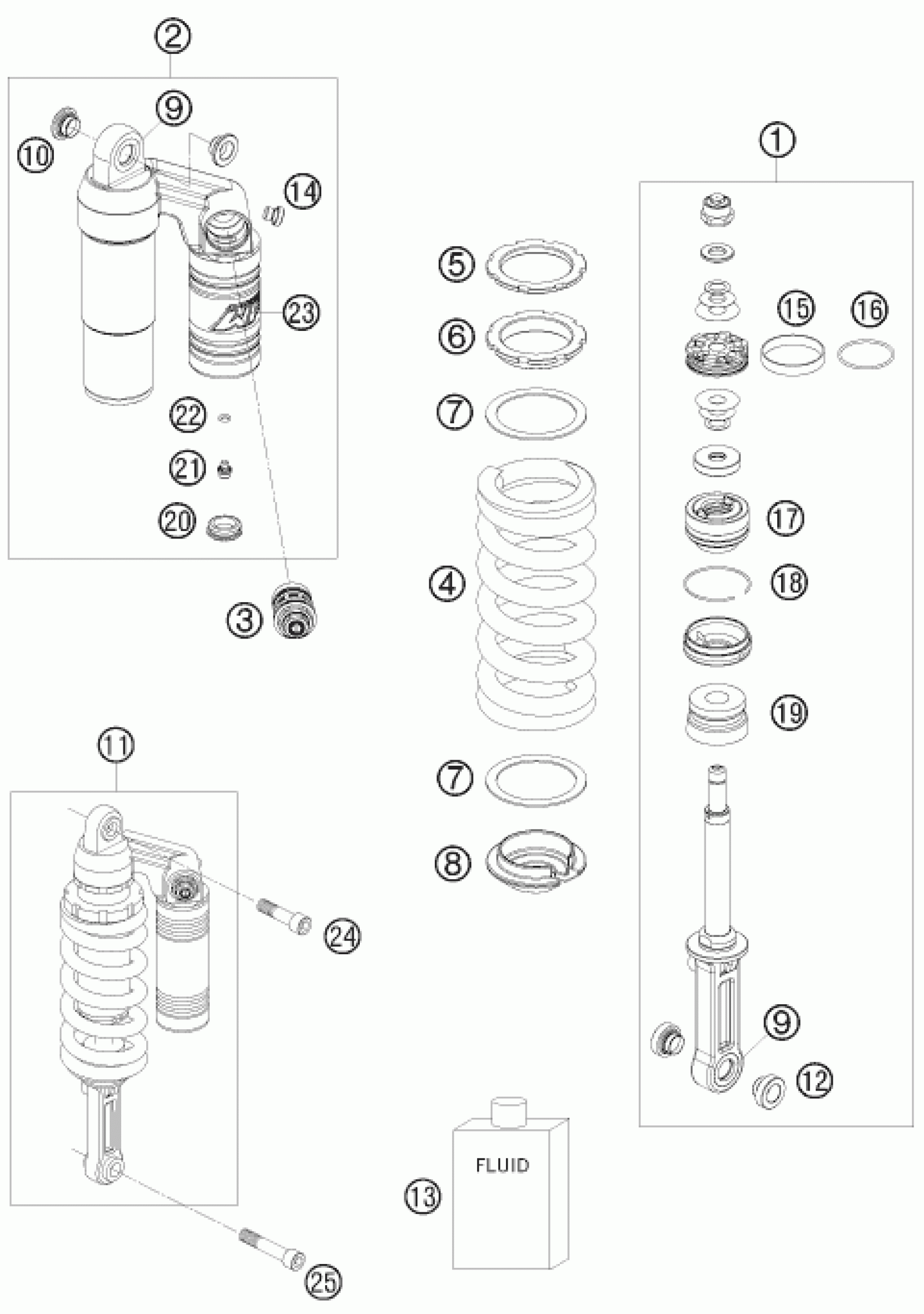

KTM 990 SUPER DUKE ORANGE 2010 SHOCK ABSORBER Diagram

#

Description

Price

1

MONOSHOCK LOWER PART

46180794S1

Unavailable

2

MONOSHOCK CASE TOP

46180854SA

Unavailable

3

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

$107.97

4

SPRING (59) 180-185 D=14,0 07

91010079S

Unavailable

4

SPRING (59) 160-185 D=13,5 07

91010077S

Unavailable

4

SPRING (59) 170-185 D 14 05

91010078S

$156.42

5

Lock nut shock M54x1,5

46180766

$26.83

8

Spring retainer 28x73x15

46180396

$61.42

9

BEARING KIT KGW 1525 990DUKE

R15009

$35.71

10

Bearing bush 14x15/18/24,5x10,

50180366

$13.94

12

ADAPTOR BUSH KGW 14X32 07

46180362

$12.45

13

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

14

HS cylinder-head screw R1/8 l8

50180095

$2.42

15

PISTON RING

46810361

$4.01

6

Adjustment nut shock M54x1,5

46180765

$16.46

17

Sealholder 46x28 cpl.

46180669S

$70.54

7

Washer 58,6x73,6x1,5

50180410

$4.11

18

Round-wire snap ring 49x1,5

46810010

$3.08

19

Rubber pad 17,2x45,2x30 black

46180365

$56.84

20

Rubber cap do not open 22x5,5

46811208

$3.08

21

HS lock screw M5x6

36120151

$1.86

22

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

23

STICKER WP KTM

52000044

$3.62

24

SCREW M14X1,5 L=55MM 03

60004016000

$3.08

25

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

11

MONOSHOCK 990 SUPERDUKE 09

15187E01

Unavailable

16

O-ring 37x,82x1,78 Viton70 gre

46810035

$2.05
