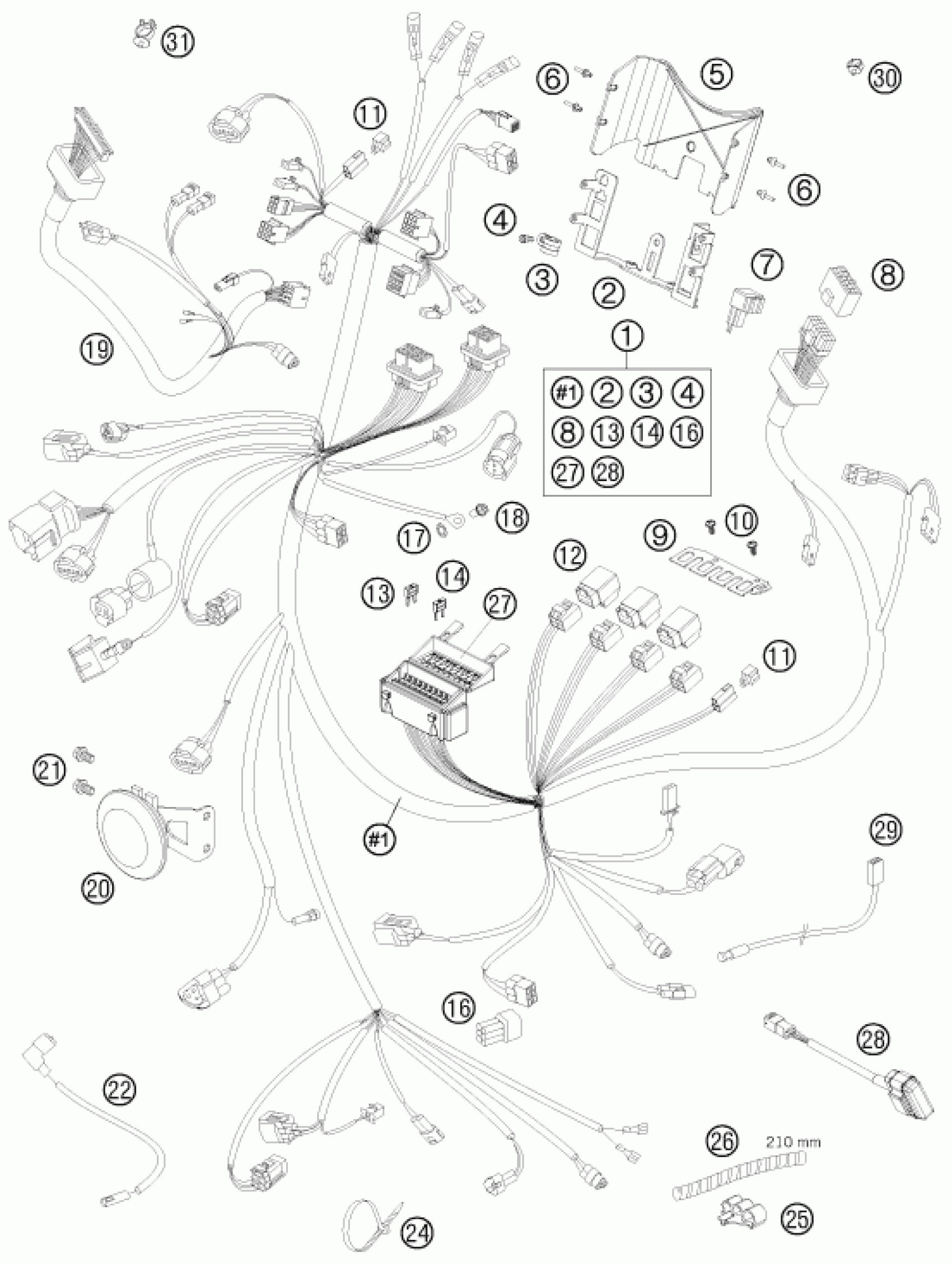

KTM 990 SUPER DUKE BLACK 2011 WIRING HARNESS Diagram

#

Description

Price

1

WIRING HARNESS FRONT 990 SD 07

61111075133

Unavailable

2

BRACKET FOR PLUGS CPL. 05

61011083000

Unavailable

3

CLAMP RSGU 15/12

49007439000

Unavailable

4

AH SCREW DIN0912-M 5X10

0912050103

Unavailable

5

BRACKET FOR PLUGS COVER 05

61011083020

Unavailable

6

PLASTIC CAP FOR M6 03

60003088000

Unavailable

7

FLASHER UNIT 97

44611207200

Unavailable

8

DUMMY PLUG ALARM SYSTEM 05

61011075020

Unavailable

9

BRACKET RELAY 07

61111057050

Unavailable

10

EJOT PT screw K50x12

0081050121

Unavailable

11

DIODE S3H-15 97

58411096100

Unavailable

12

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

13

FUSE 10A 07

75011088010

Unavailable

14

FUSE 15A 07

75011088015

Unavailable

16

SPARE CONNECTOR BH 6-PINS

000700000BH

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

18

HH collar screw M6x12 TX30

0025060126

Unavailable

19

WIRING HARNESS FRONT 07

61111079000

Unavailable

20

DC HORN CPL. 05

61011060000

Unavailable

21

HH collar screw M6x10 TX30

0025060106

Unavailable

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

Unavailable

24

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

24

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

25

WIRING HOLDER 05

61011093000

Unavailable

26

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

27

RUBBER CASING FOR FUSE BOX

75011087050

Unavailable

28

STARTER INTERLOCK

61111020000

Unavailable

29

TEMPERATURE SENSOR 07

61111018000

Unavailable

30

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

31

CABLE SUPPORT 07

61111041000

Unavailable
