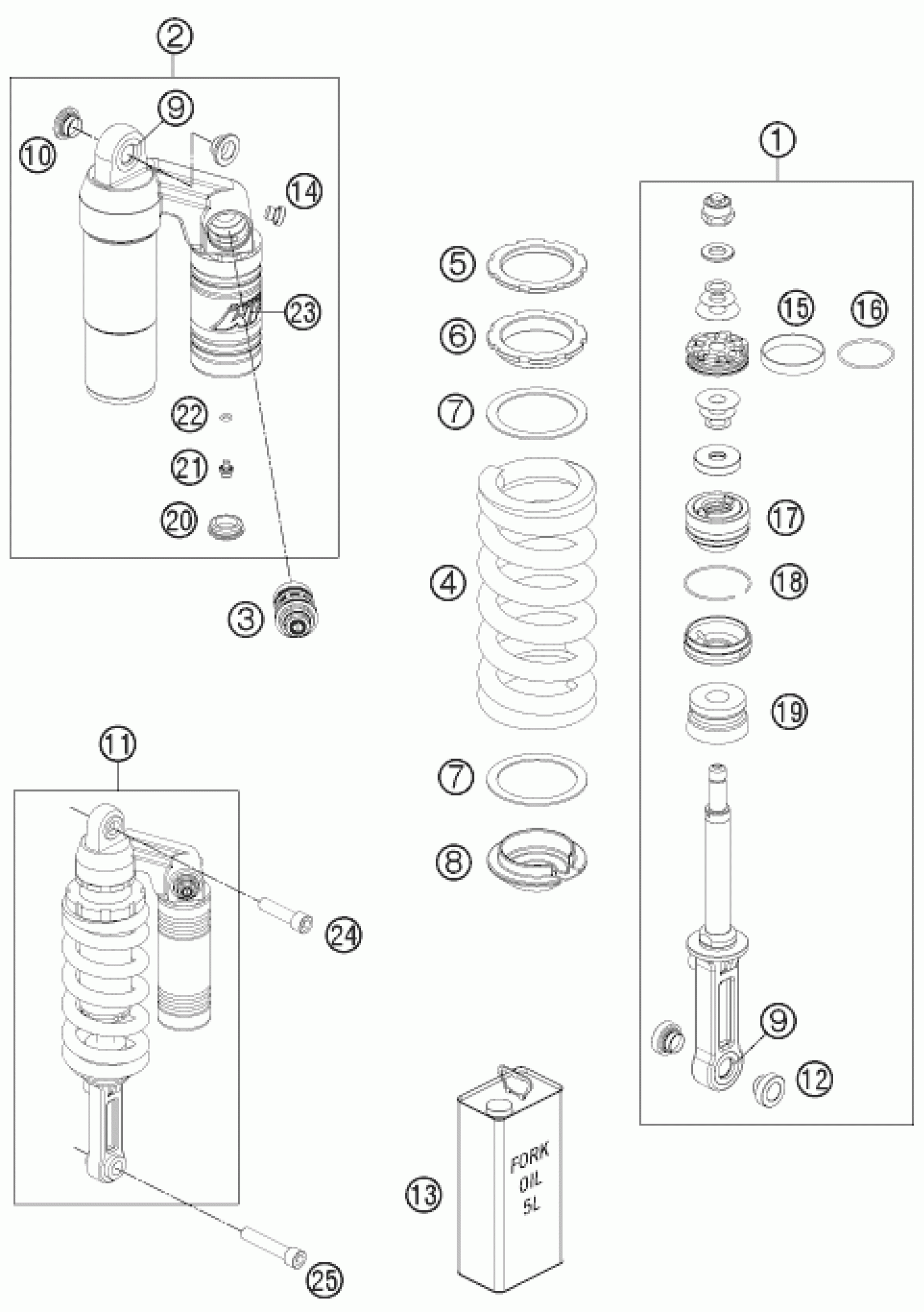

KTM 990 SUPER DUKE BLACK 2011 SHOCK ABSORBER Diagram

#

Description

Price

1

MONOSHOCK LOWER PART

46180794S1

Unavailable

2

MONOSHOCK CASE TOP

46180854SA

Unavailable

3

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

Unavailable

4

SPRING (59) 180-185 D=14,0 07

91010079S

Unavailable

4

SPRING (59) 160-185 D=13,5 07

91010077S

Unavailable

4

SPRING (59) 170-185 D 14 05

91010078S

Unavailable

5

Lock nut shock M54x1,5

46180766

Unavailable

6

Adjustment nut shock M54x1,5

46180765

Unavailable

7

Washer 58,6x73,6x1,5

50180410

Unavailable

8

Spring retainer 28x73x15

46180396

Unavailable

9

BEARING KIT KGW 1525 990DUKE

R15009

Unavailable

10

Bearing bush 14x15/18/24,5x10,

50180366

Unavailable

11

MONOSHOCK 990 SUPERDUKE 09

15187E01

Unavailable

12

ADAPTOR BUSH KGW 14X32 07

46180362

Unavailable

13

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

14

HS cylinder-head screw R1/8 l8

50180095

Unavailable

15

PISTON RING

46810361

Unavailable

16

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

17

Sealholder 46x28 cpl.

46180669S

Unavailable

18

Round-wire snap ring 49x1,5

46810010

Unavailable

19

Rubber pad 17,2x45,2x30 black

46180365

Unavailable

20

Rubber cap do not open 22x5,5

46811208

Unavailable

21

HS lock screw M5x6

36120151

Unavailable

22

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

23

Sticker WP clear 35x55

52000086

Unavailable

24

SCREW M14X1,5 L=55MM 03

60004016000

Unavailable

25

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable
