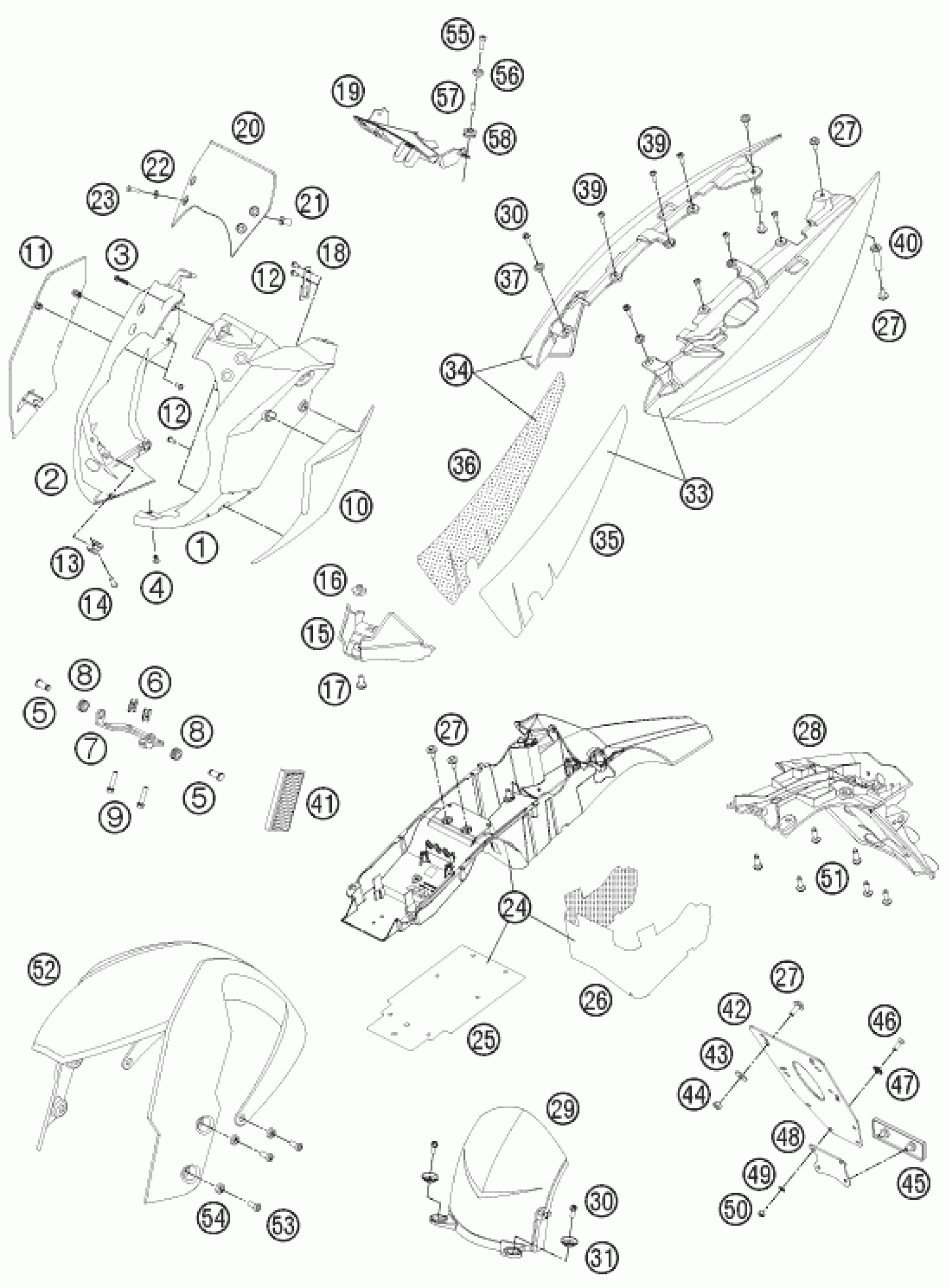

KTM 990 SUPER DUKE BLACK 2011 MASK, FENDERS Diagram

#

Description

Price

1

HEAD LIGHT MASK LEFT 07

61108001000

Unavailable

2

HEAD LIGHT MASK RIGHT 07

61108002000

Unavailable

3

SCREW FOR PLASTIC 03

0016050253

Unavailable

4

EXPANDING RIVET PA6 BLACK

61103088000

Unavailable

5

BOLT F. LINK FORK 8X20X16,5

60013057000

Unavailable

6

SECURING CLIP D=8MM 03

60013058000

Unavailable

7

HINGE JOINT BOTTOM 99

58708002000

Unavailable

8

rubber grommet D=8mm open

31008060000

Unavailable

9

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

10

MASK SPOILER L/S BLACK BR.

6110800300030A

Unavailable

11

MASK SPOILER R/S BLACK BR.

6110800400030A

Unavailable

12

EJOT PT screw K50x12

0081050121

Unavailable

13

RANGE CHANGE METAL NUT M6 INOX

54603048300

Unavailable

14

OVAL HEAD SCREW ISK. ISO7380

0738060121

Unavailable

15

SPLASH PROTECT. FRAME HEAD 05

61003094000

Unavailable

16

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

17

HH collar screw M6x15 TX30

0024060156

Unavailable

18

BRACKET STARTER 07

61111020050

Unavailable

19

SPEEDOMETER BRACKET 07

61108005000

Unavailable

20

WIND SHIELD 07

61108065000

Unavailable

21

blind plug nut M5 WN16A

60008008050

Unavailable

22

SPECIAL WASHER D=12MM 03

60008046000

Unavailable

23

COUNTERSUNK SCREW ISA25 M5X20

0019050201

Unavailable

24

REAR BASE CPL. 07

61108019044

Unavailable

25

THER. PROTECT. FOIL FRONT 07

61008021200

Unavailable

26

THERM.PROTECT. FOIL REAR 07

61008021300

Unavailable

27

HH collar screw M6x15 TX30

0024060156

Unavailable

28

NUMB.PLATE CARRIER 05

61008015000

Unavailable

29

SPLASH PROTECT. 05

61008014000

Unavailable

30

HH collar screw M6x16 TX30

0025060166

Unavailable

31

BUCKET

72210079000

Unavailable

33

REAR END TOP PART L/S BLACK 05

6100804100030A

Unavailable

34

REAR END TOP PART R/S BLACK 05

6100804200030A

Unavailable

35

THERMAL PROT. FOIL L/S 07

61008041150

Unavailable

36

THERMAL PROT.FOIL R/S 07

61008042150

Unavailable

37

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

39

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

40

SPECIAL NUT FOR REAR END 05

61008019050

Unavailable

41

REFLECTOR YELLOW '99

58412080100

Unavailable

42

license plate mouning plate

60012081200

Unavailable

43

Washer DIN9021-A 6.4

0021060003

Unavailable

44

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

45

REFLECTOR RED

58412080000

Unavailable

46

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

47

WASHER 6MM

40006006000

Unavailable

48

BRACKET FOR REFLECTOR

58412080050

Unavailable

49

WASHER DIN0125-A 5,3

0125050003

Unavailable

50

Self locking nut DIN 985 M5

0985050003

Unavailable

51

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

52

FRONT FENDER BLACK 07

6110801000030

Unavailable

53

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

54

SPECIAL WASHER

61108045000

Unavailable

55

AH SCREW DIN6912 M6X25

0984060252

Unavailable

56

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

57

COLLAR BUSHING 6,2X7,5X12,5

61108006100

Unavailable

58

rubber grommet 16x10.8x3

58214069051

Unavailable
