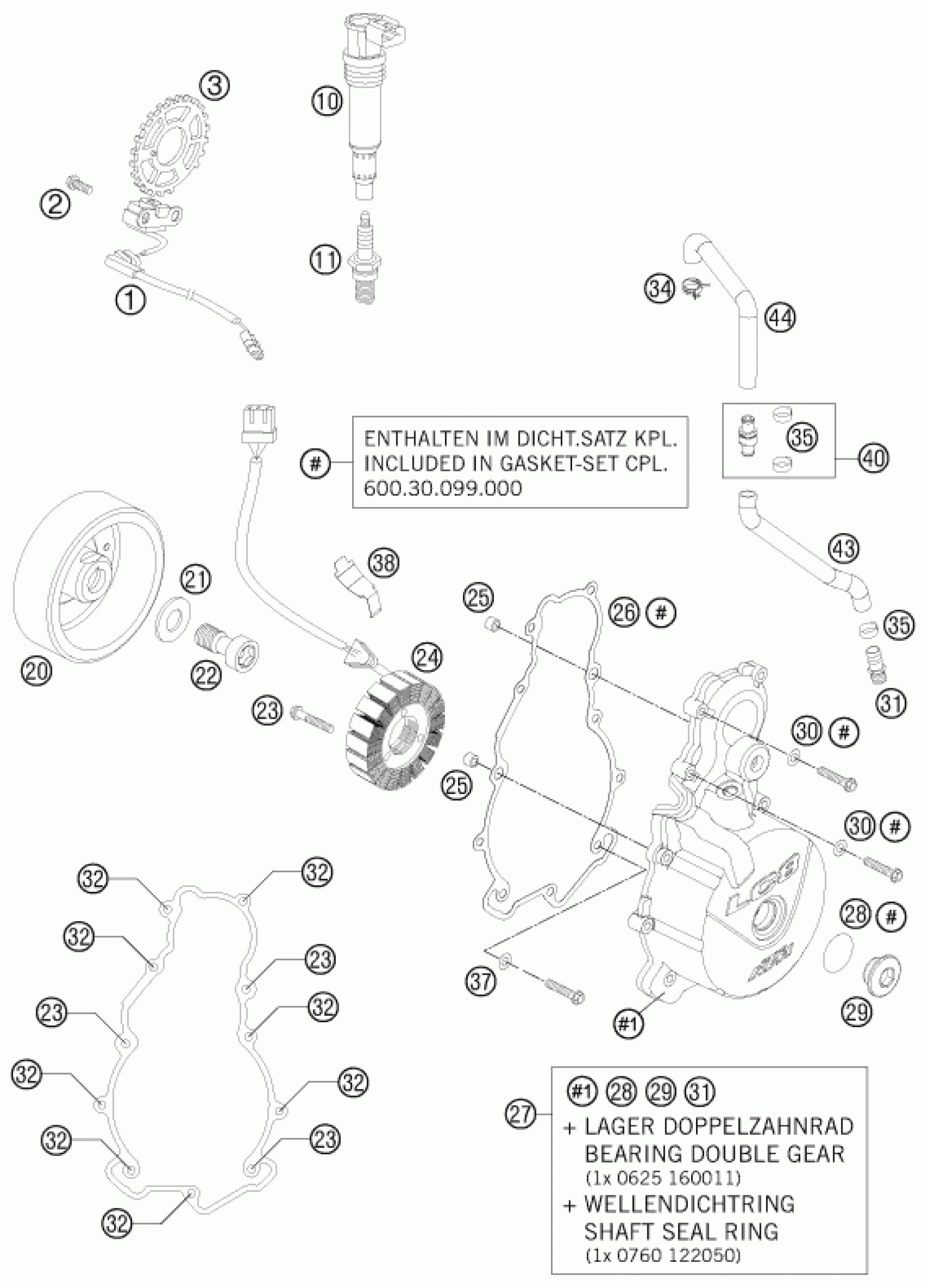

KTM 990 SUPER DUKE BLACK 2011 IGNITION SYSTEM Diagram

#

Description

Price

1

PULSE GENERATOR LC8 04

60039034100

$68.62

2

HH collar screw M6x16 TX30

0025060166

$3.08

3

COIL SPROKET 22Z O. CYL. PIN

61039020000

$3.23

10

STICK COIL 03

60039006000

$94.80

11

SPARK PLUG KR8DI

61139093000

$22.71

20

IGNITION ROTOR 04

60039005100

$818.68

21

WASHER 17X32X4 03

60039040010

$5.23

22

AH EXPAND. SCREW M16X1,5 05

60039003100

$7.75

23

HH collar screw M6x35 TX30

0025060356

$3.08

24

STATOR 03

60039004000

$245.67

25

DOWEL 9,8 X 7 X 10

49030090000

$2.05

26

IGNIT.COVER GASK.MATRI.CS0,5MM

60030040100

$31.78

27

IGNITION COVER CPL. 06

6003000214423

$200.74

28

o-ring 24.00x2.50 Viton

07700240251

$3.08

29

SCREW PLUG M24X1,5 PA 6.6

6003009400023

$3.08

30

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

31

VENTILATION CONNECTOR M16X1,5

60030022000

$8.31

32

HH collar screw M6x30 TX30

0025060306

$3.08

34

CLAMP STD DN22

00049220121

$2.05

35

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

37

WASHER DIN0125-A 6,4

0125060003

$1.49

38

generator line bracket

60039040020

$3.08

40

BACK-PRESSURE VALVE CPL.

60030090344

Unavailable

43

ENGINE BREATHER HOSE BOTTOM

60030087101

$42.35

44

ENGINE BREATHER HOSE TOP

60030087102

$18.33
