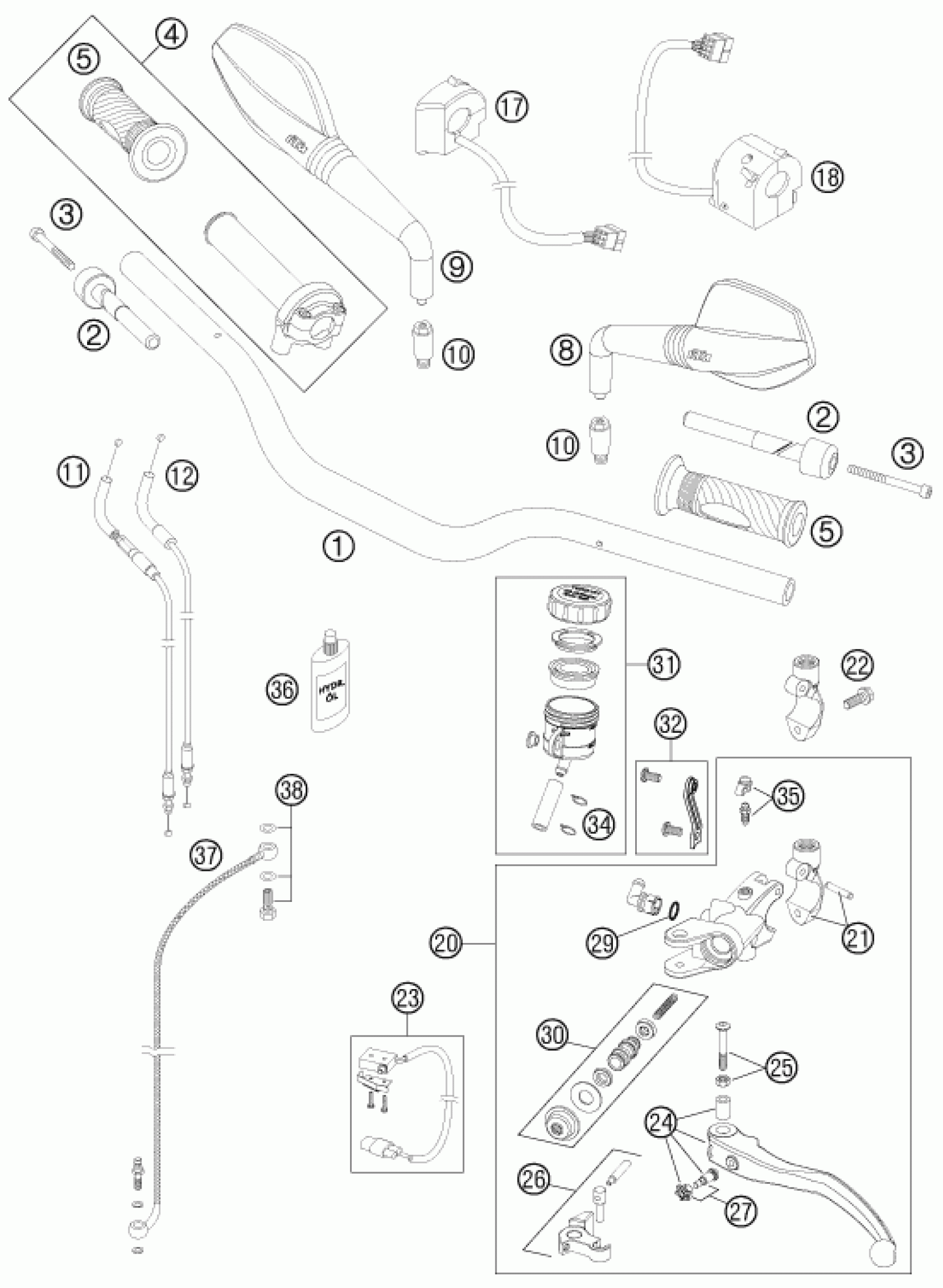

KTM 990 SUPER DUKE BLACK 2011 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR 06

61002001100

$201.02

2

handlebar weight

61002004000

$35.52

3

SHCS DIN 912 M6x65

0912060653

$2.05

4

THROTTLE GRIP 05

61002010000

$65.72

5

GRIPP SET

61002021000

$28.79

8

REVIEW MIRROR L/S 07

61112040000

$48.61

9

REVIEW MIRROR R/S 07

61112041000

$48.61

10

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

11

THROTTLE CABLE OPEN

61002091100

Unavailable

12

THROTTLE CABLE CLOSE

61002092100

Unavailable

17

START-STOP SWITCH AD 03

58411074300

$48.36

18

LIGHT SWITCH 05

61011070000

$107.89

20

MASTER CYLINDER CPL. 2010

61002030100

$434.77

21

CLAMP MIRROR WITH PIN

61002044000

$41.88

22

HH collar screw M6x16 TX30

0025060166

$3.08

23

CLUTCH SWITCH 05

61011049000

$76.76

24

CLUTCH LEVER CPL.

61002031100

$83.58

25

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

26

ROCKER CPL. 05

61002056000

$43.94

27

ADJUSTING SCREW CPL.

61002043000

$19.72

29

O-RING ANGLE PIECE

61002051000

$2.05

30

REP.SET PISTON D=13 05

61002032000

$79.93

31

RESERVOIR CPL. 05

61002055000

$67.31

32

BRACKET AND SCREWS F. RESERV.

61002055050

$35.15

34

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

35

BLEEDER SCREW WITH CAP

61002054000

$23.55

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

37

CLUTCH PIPE 05

61032063000

$88.35

38

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05
