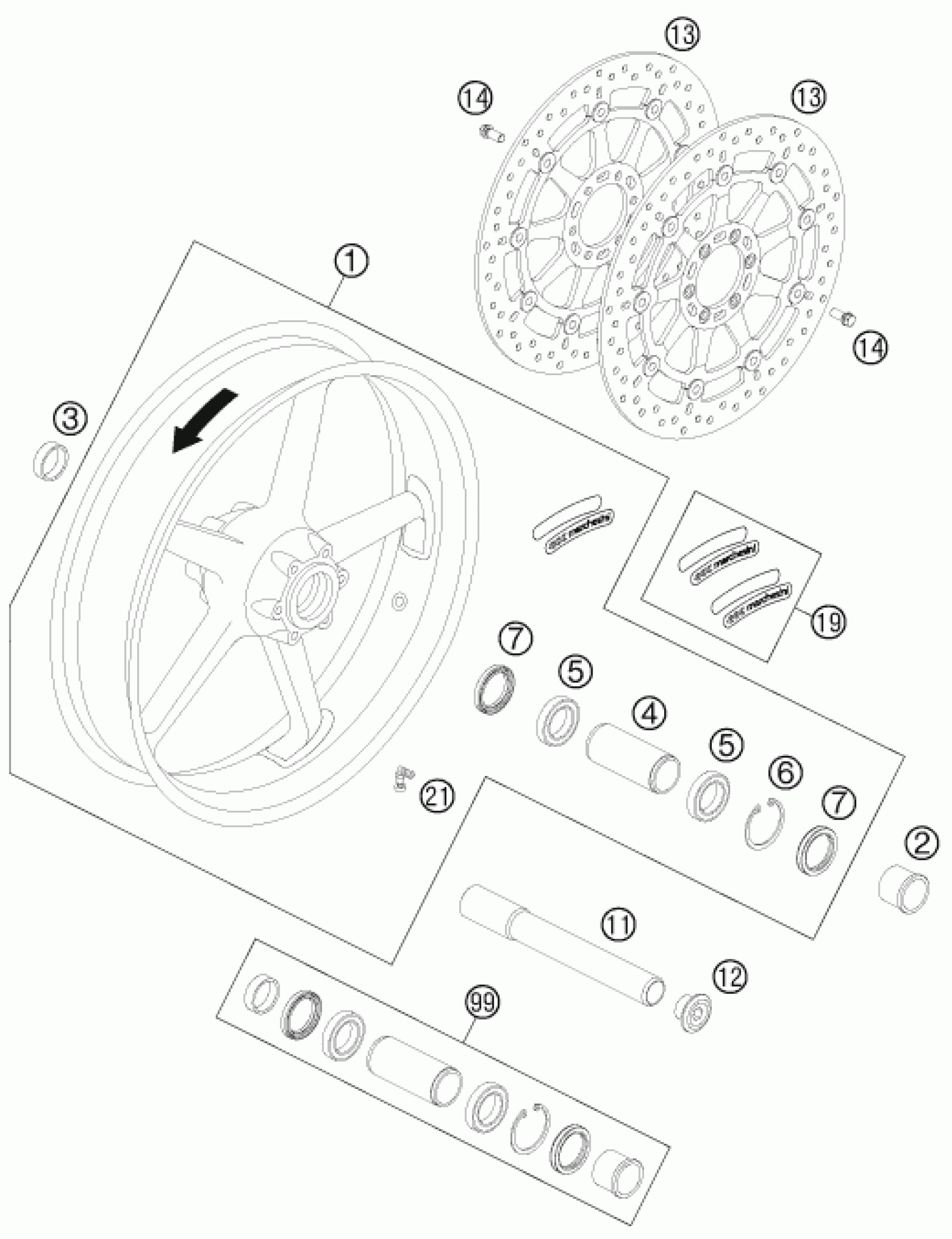

KTM 990 SUPER DUKE BLACK 2011 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL. BLACK 10

6100900114430

$1,132.46

2

SPACER BUSH. FR. WHEEL L/S 05

61009012000

$18.50

3

Spacer bush. fr. whee R/S 03

60009013000

$14.86

4

Bearing spacing tube, front

61009011000

$22.81

5

Grooved ball bearing 6906

0625069068

$34.68

6

LOCK RING DIN0472-48X1,75

0472048175

$2.05

99

FRONT WHEEL REP. KIT

61009015000

Unavailable

7

Radial shaft seal 35X47X7 TC

0760354771

$8.69

11

WHEEL SPINDEL FRONT 05

61009081000

$81.15

12

AH screw M25X1.5 WS=12 05

61009082000

$18.41

13

BRAKE DISK FRONT 320MM 05

61009060000

$378.16

14

SPECIAL SCREW M8X18 05

61009062018

$4.11

21

VALVE ANGLED 90° 05

61009076000

$16.45

19

STICKER MARCH. 2L/S+2R/S WHITE

00050000120

$13.74
