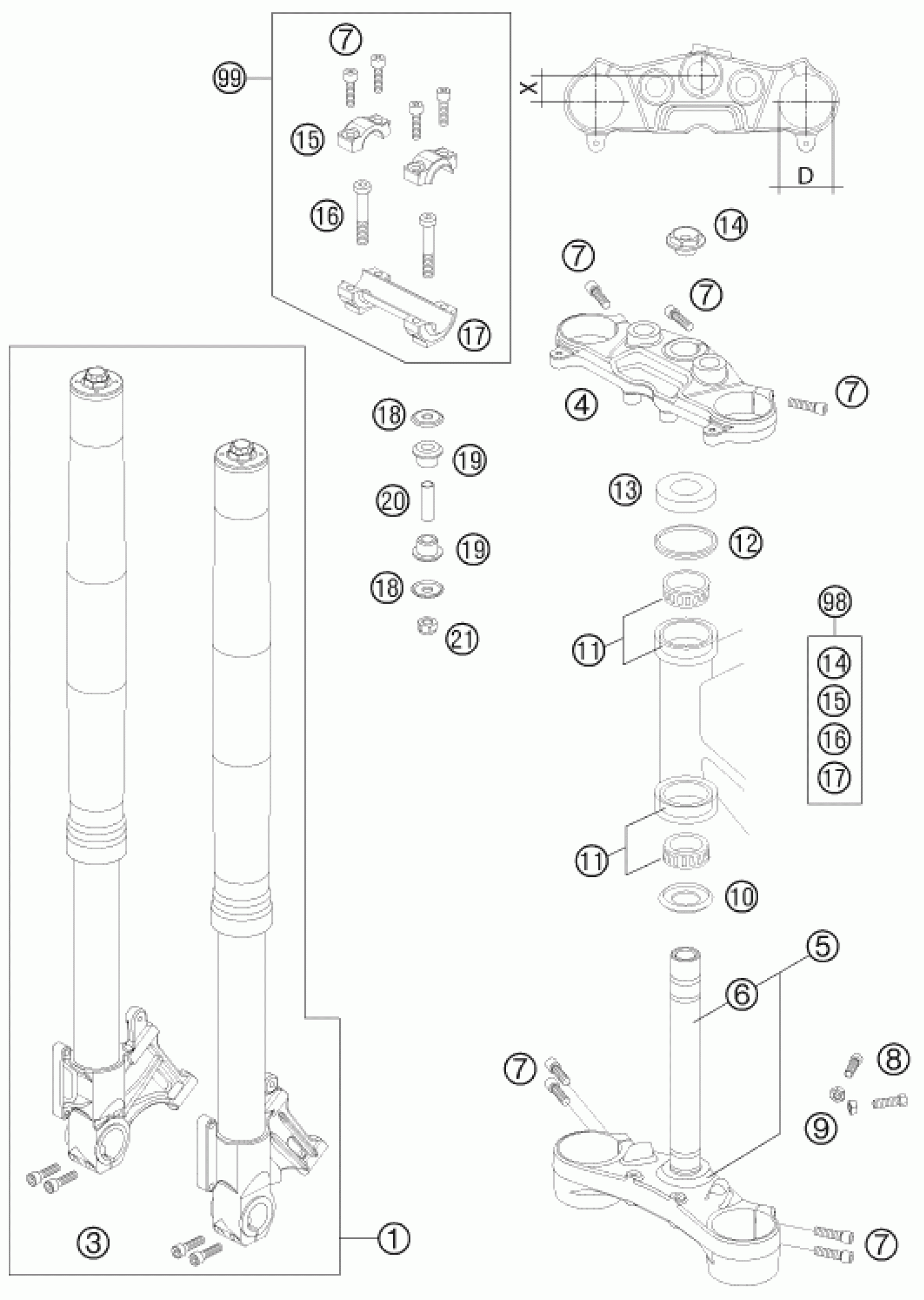

KTM 990 SUPER DUKE BLACK 2011 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK WP 990 SUPERDUKE 2011

14187K1301

Unavailable

3

AH SCREW DIN0912-M 8X30

0912080303

$2.05

4

TOP TRIPLE CLAMP 07

6110103402901S

$174.09

5

BOT.TRIPLE CLAMP CPL. 07

6110103202901S

$211.85

6

FORK TUBE LC8 ADV 03

60001033000

$65.16

7

AH SCREW DIN6912-M 8X30

0012080303

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

10

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

11

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

12

STEARING HEAD GASKET TOP

54601184000

$7.10

13

STEERING HEAD COVER 05

61001086000

$13.92

14

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

$14.58

15

HANDLEBAR CLAMP 28MM 07

5900103830001S

$27.76

16

AH SCREW DIN6912-M10X60

0012100603

$2.05

17

HANDLEBAR SUPPORT 28MM 07

5900103920001S

$147.25

18

washer 10.5x32x2

56401042000

$4.11

19

rubber bushing

56401040000

$5.23

20

spacer tube 10.2x12x38

61001041000

$4.11

21

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
