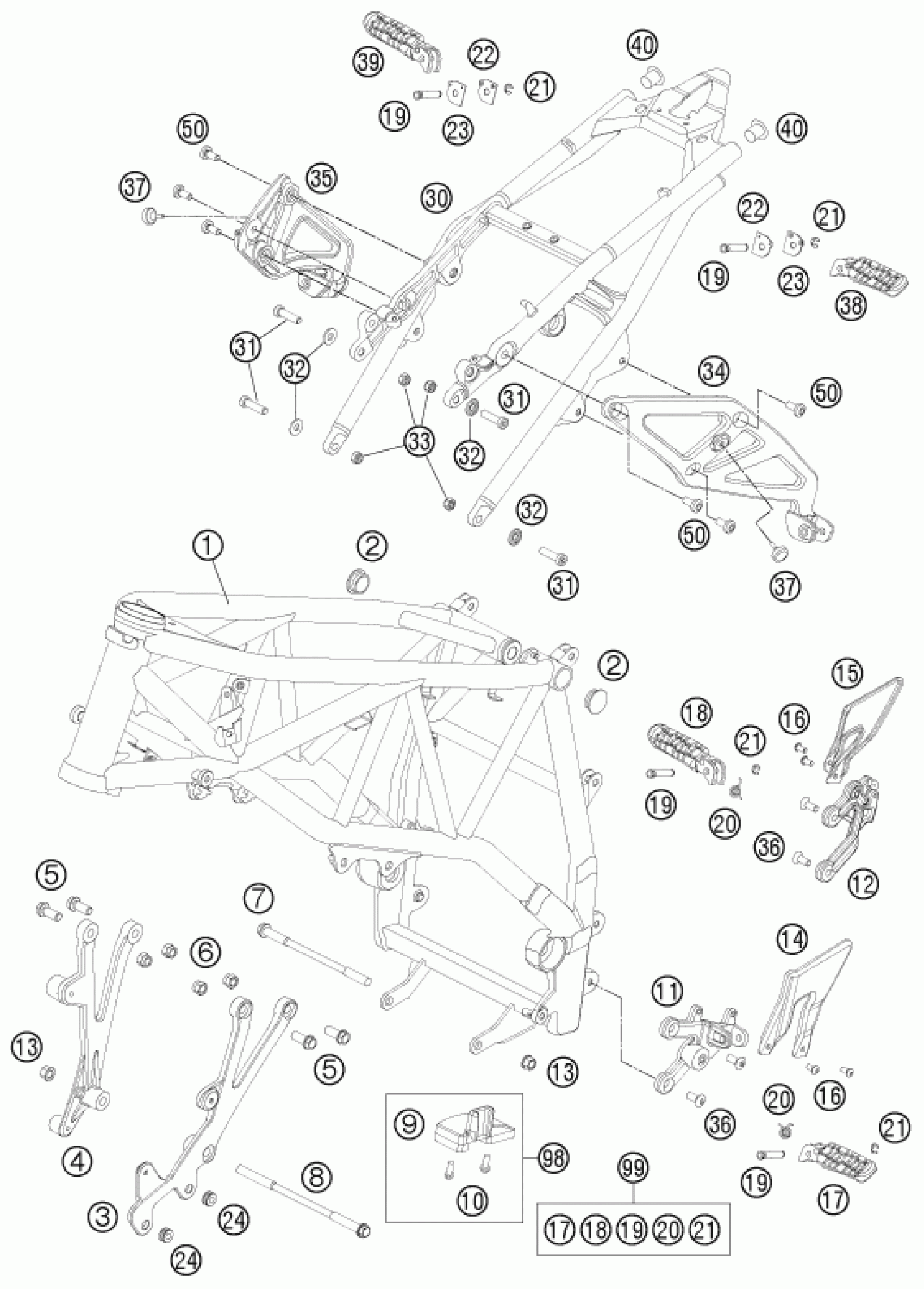

KTM 990 SUPER DUKE BLACK 2011 FRAME Diagram

#

Description

Price

1

FRAME ''FG08'' BLACK 990 SD

6110300120033

$1,282.01

2

PLUG SFL28 05

61003088000

$2.05

3

ENGINE SUPPORT L/S 07

6100300500033S

Unavailable

5

HH COLLAR SCREW M10X24 WS=13

0015100243

$2.05

6

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

7

ENGINE BRAC. SCREW M10X172 03

60003013000

$14.58

4

ENGINE SUPPORT R/S 07

6100300600033S

Unavailable

8

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

9

CHAIN SLIDING BLOCK 05

60004076100

$8.78

10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

11

FOOT REST BRACKET FR. LE. 07

6100303800033S

Unavailable

12

FOOT REST BRACKET FRONT R/S 05

6100303900033S

Unavailable

13

COLLAR NUT M10 WS=13

54630044000

$1.49

14

HEEL PROTECTOR L/S 07

61134032000

$6.54

15

HEEL PROTECTOR R/S 07

61113032000

$5.88

16

Oval head screw ISK ISO7380 M6

0738060101

$1.49

17

FOOTREST FRONT L/S CPL. 05

61003050000

$50.20

18

FOOTREST FRONT R/S CPL. 05

61003051000

$49.27

19

footrest bolt, rear

60003044100

$8.03

20

SPRING FOOTREST FRONT 05

61003042000

$5.23

21

retaining washer DIN 6799 - 6

0799060003

$1.49

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

24

RUBBER SLEEVE 03

60003098000

$4.11

30

CANTILEVER PLATIN 07

6110300210092

$668.97

31

AH SCREW DIN6912-M 8X30

0012080303

$2.05

32

STEPPED WASHER 8,5X20X3,5 05

61003002058

$5.51

33

STOP NUT DIN6926 M8 SS

0926080003

$1.49

34

FOOTREST BRACKET REAR L/S 07

6100304800001S

$125.05

35

FOOTREST BRACKET REAR R/S 07

6100304900001S

$128.71

36

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

37

Distance rupper airbox 03

60006001021

$2.05

38

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

39

Footrest cmpl. r/s rear 03

60003051000

$61.89

40

PLUG SFL 22X1,8-3,5

61003089000

$2.05

50

SPECIAL SCREW M8X18 06

61003052000

$2.05

99

FOOTPEG KIT 990 SD/SDR

61003040010

Unavailable

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable
