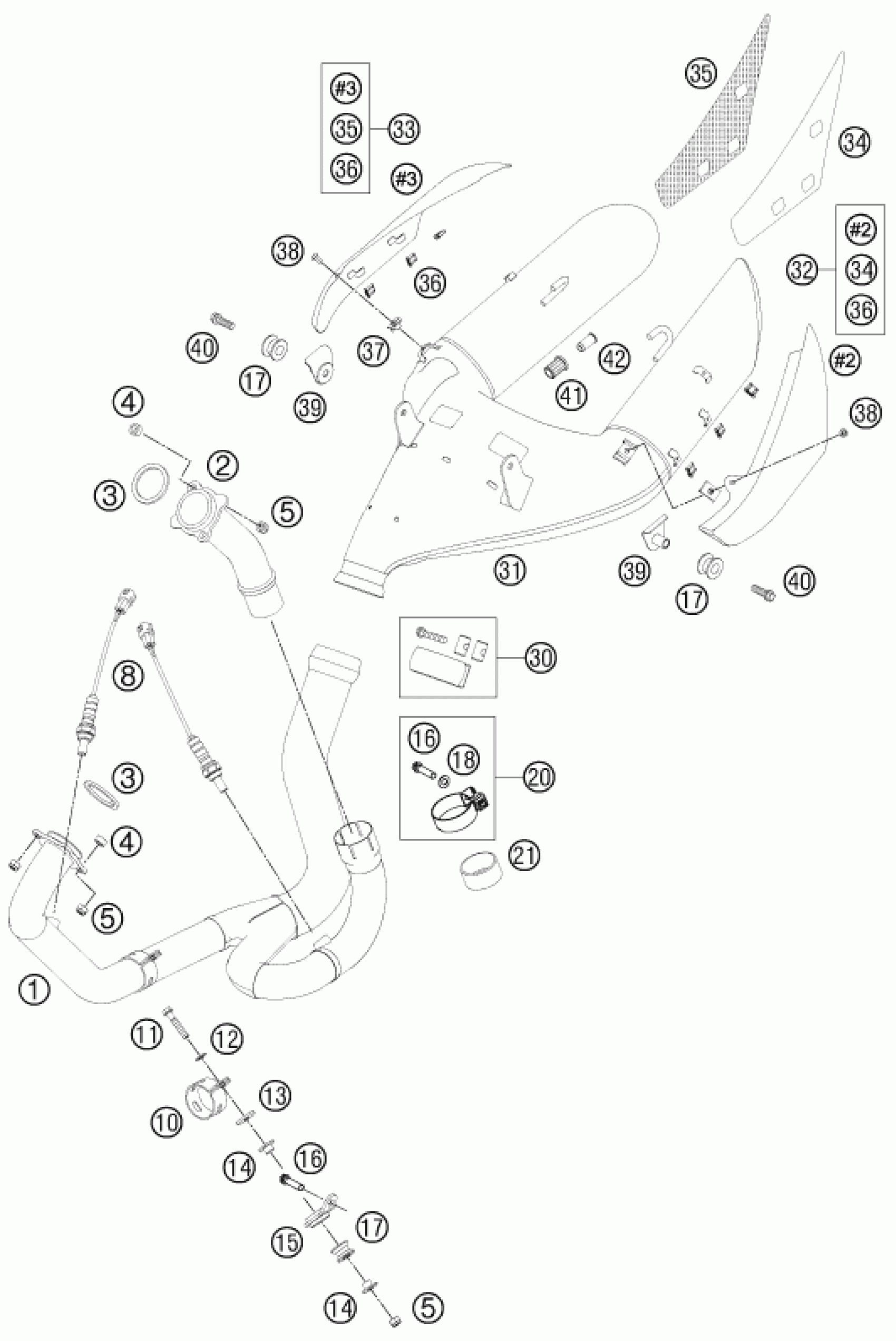

KTM 990 SUPER DUKE BLACK 2011 EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST PIPE FRONT 07

61105007000

Unavailable

2

EXHAUST PIPE REAR 07

61105008000

Unavailable

3

Exhaust gasket 05

61005005000

Unavailable

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

5

self-locking nut M8 Cu

51010086100

Unavailable

8

LAMBDA SENSOR 05

61041090000

Unavailable

10

CLAMP EXHAUST PIPE 05

61005007049

Unavailable

11

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

12

WASHER DIN9021-A 8,4

0021080003

Unavailable

13

INSOLATE WASHER 8,5X28X3

51005067000

Unavailable

14

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

15

EXHAUST PIPE BRACKET FRONT 07

62505015150

Unavailable

16

HH collar screw M8x35 TX40

0025080356

Unavailable

17

damp. component silicone grey

54305068100

Unavailable

18

washer DIN 125 A -8.4

0125080003

Unavailable

20

EXHAUST CLAMP 52,2MM 07

61105051000

Unavailable

21

Graphite ring 45X50X25

58405005001

Unavailable

30

EXHAUST CLAMP CPL. 05

61005052000

Unavailable

31

SILENCER 07

61105083000

Unavailable

32

THERMAL SHIELD SILENCER LE. 07

61005090120

Unavailable

33

THERMAL SHIELD SILENCER RE. 07

61005090130

Unavailable

34

THER.PROT.FOIL SILENCER L/S

61005090122

Unavailable

35

THER.PROT. FOIL SILENCER R/S

61005090132

Unavailable

36

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable

37

clip nut M6

54603048100

Unavailable

38

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

39

ANTI-ROTATION ELEMENT CPL. 05

61005083011

Unavailable

40

HH collar screw M8x25

0025080256

Unavailable

41

RUBBER SILENCER SUPPORT 05

61005013000

Unavailable

42

Sleeve silencer support

61005014000

Unavailable
