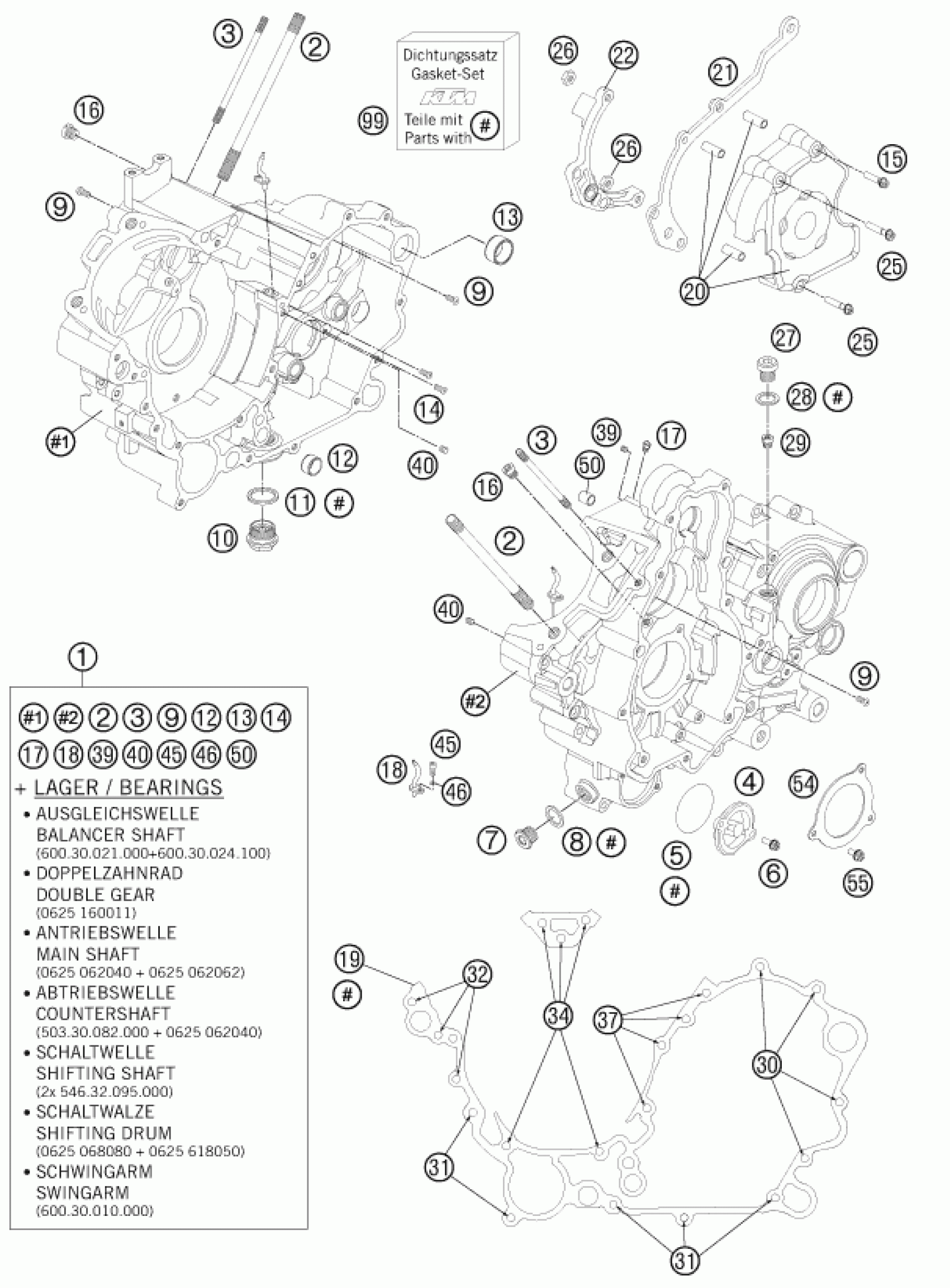

KTM 990 SUPER DUKE BLACK 2011 ENGINE CASE Diagram

#

Description

Price

1

ENGINE CASE CPL. 05

6003000014423

Unavailable

2

STUD M10X161 06

60030043100

Unavailable

3

STUD M 6X101 10.9 03

60030043010

Unavailable

4

oil filter cover

75038041200

Unavailable

5

O-RING 39,34X2,62

07700390261

Unavailable

6

HH collar screw M5x16 TX30

0025050166

Unavailable

7

PLUG SCREW M14X1,5 ALU AH

60038033050

Unavailable

8

CU-SEAL RING 14X20X1,5 LC8 02

0603142016

Unavailable

9

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

55

HH collar screw M5x12 TX30

0025050126

Unavailable

99

GASKET SET CPL. 03

60030099000

Unavailable

10

DRAIN PLUG W. MAGNET

58038019050

Unavailable

11

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

12

DOWEL 17 X 14 X 9,5

58330023000

Unavailable

13

DOWEL 20,1X24X12 03

60030023000

Unavailable

14

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

15

HH collar screw M6x30 TX30

0025060306

Unavailable

16

JET 60 DELLORTO M6X0,75

59030054000

Unavailable

17

oil jet 70 M5

60030063070

Unavailable

18

OIL INJECT.TUBE CURVED ''70''

60030064000

Unavailable

19

ENGINE CASE GASKET 0,5MM 05

60030039100

Unavailable

20

CHAIN SPROCKET COVER CPL. 03

60030060044

Unavailable

21

CHAIN FAIL. PROTECTION LC8 03

60030047000

Unavailable

22

ADAPTER F. HYDR. CLUTCH 03

60032063000

Unavailable

25

HH collar screw M6x35 TX30

0025060356

Unavailable

26

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

29

REDUCING JET ''30'' M6X0,75

60038029200

Unavailable

30

HH collar screw M6x40 TX30

0025060406

Unavailable

31

HH collar screw M6x60 TX30

0025060606

Unavailable

32

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

34

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

37

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

39

THREAD PIN DIN916 M5X4-45H

0916050042

Unavailable

40

THREAD PIN DIN0551-M 6X 5

0551060050

Unavailable

45

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

46

O-RING 3,5X2,00 NBR

0770035020

Unavailable

50

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

54

BRACKET FOR BEARING INSERT 05

60030084000

Unavailable
