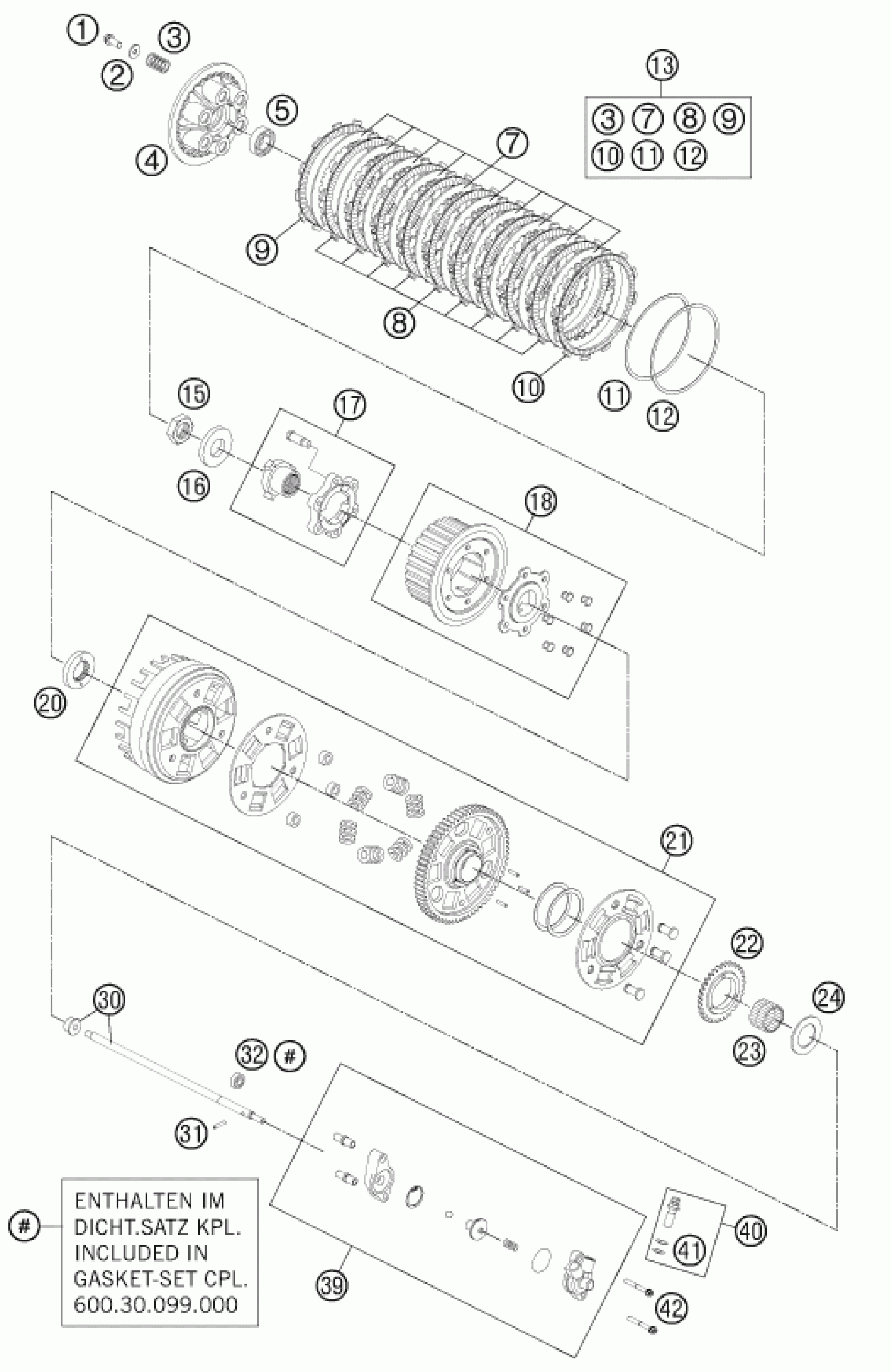

KTM 990 SUPER DUKE BLACK 2011 CLUTCH Diagram

#

Description

Price

16

WASHER DIN0126 22X37X3 MM

0126220373

Unavailable

31

Needle roll.DIN5402 NRB 3X17.8

0402031780

Unavailable

17

CLUTCH BOOSTER UNIT CPL. 03

60032080000

Unavailable

18

INNER CLUTCH HUB CPL. 03

60032002000

Unavailable

20

SECTION WASHER 03

60032021000

Unavailable

21

OUT.CLUTCH HUB CPL. 67-T 2004

60032001144

Unavailable

22

oil pump gear 32 teeth

60038001132

Unavailable

42

HH collar screw M6x50 TX30

0025060506

Unavailable

32

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

Unavailable

39

SLAVE CYLINDER CPL. LC8 08

60032061244

Unavailable

40

Hollow screw cmpl. M 10x1 98

50332062000

Unavailable

41

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

23

Needle bushing HK 30X35X26

0618303526

Unavailable

24

STOP DISK 30,2/50/2

60032020000

Unavailable

30

PUSH ROD CPL.

60032054400

Unavailable

1

HH collar screw M6x16 TX30

0025060166

Unavailable

2

Washer DIN9021-A 6.4

0021060003

Unavailable

3

CLUTCH SPRING LC8 2003

60032005000

Unavailable

4

PRESSURE CAP LC8 2003

60032003000

Unavailable

5

BALL BEARING 6003 JR2 C4

0625060032

Unavailable

7

STEEL DISC 2MM 03

60032010000

Unavailable

8

LINING DISK 2,8MM 03

60032011000

Unavailable

9

LINING DISK OUTSIDE 2,8MM 03

60032111000

Unavailable

10

LINING DISK TURN OUT 2,8MM 03

60032012000

Unavailable

11

BELLEVILLE SPRING 2003

60032034000

Unavailable

12

THRUST WASHER 2003

60032035000

Unavailable

13

CLUTCH KIT LC8 03-13

60032011010

Unavailable

15

HEXAGON NUT DIN0936-M22X1,5 R.

0936220155

Unavailable
