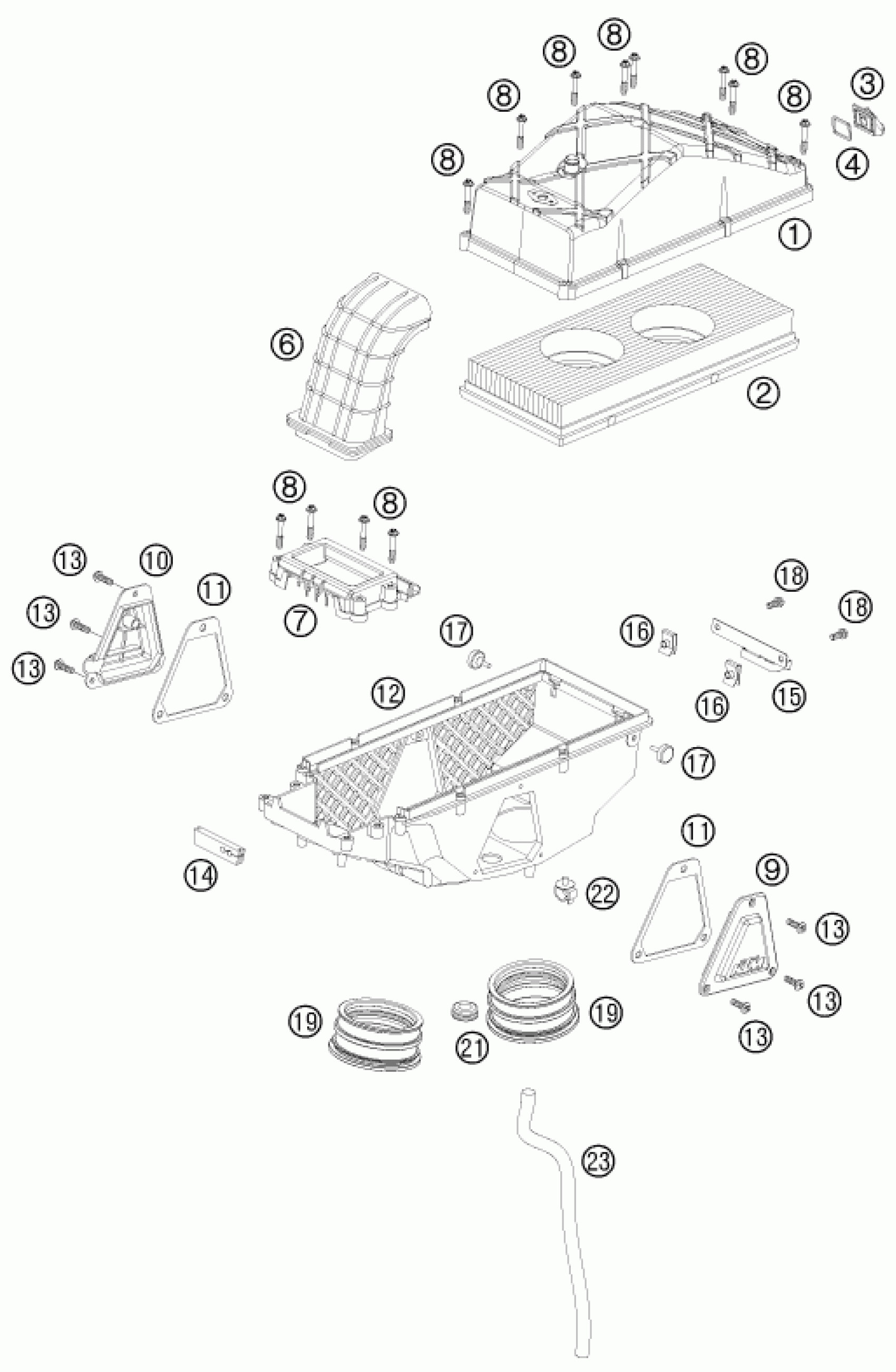

KTM 990 SUPER DUKE BLACK 2011 AIR FILTER Diagram

#

Description

Price

1

AIRBOX COVER 990 DUKE 04

61006002000

Unavailable

2

AIR FILTER EFI 05

61006015000

Unavailable

3

CONNECTOR FOR SAS LC8 03

60006007000

Unavailable

4

GASKET SAS CONNECTOR 03

60006007050

Unavailable

6

INTAKE SNORKEL 03

60006040000

Unavailable

7

AIRBOX FRONT PART LC8 03

60006004000

Unavailable

8

SPECIAL SCREW K60X35/15 03

60006006000

Unavailable

9

AIRBOX COVER L/S R/S 03

60006003002

Unavailable

10

AIRBOX COVER R/S EFI 05

61006003002

Unavailable

11

GASKET F. AIRBOX COVER L/S R/S

60006003050

Unavailable

12

FILTER BOX LOWER PART 990 05

61006001000

Unavailable

13

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

14

RUBBER SLEEVE F. THR. CABLE 05

61006001030

Unavailable

15

SAS-BRACKET PANEL 05

61006001020

Unavailable

16

clip nut M6

54603048100

Unavailable

17

Distance rupper airbox 03

60006001021

Unavailable

18

HH collar screw M6x16 TX30

0025060166

Unavailable

19

RUBBER SLEEVE AIRBOX 03

60036045000

Unavailable

21

RUBBER SLEEVE FUEL HOSE 03

60006001041

Unavailable

22

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

23

HOSE 10X14 PER METER

57005020001

Unavailable
