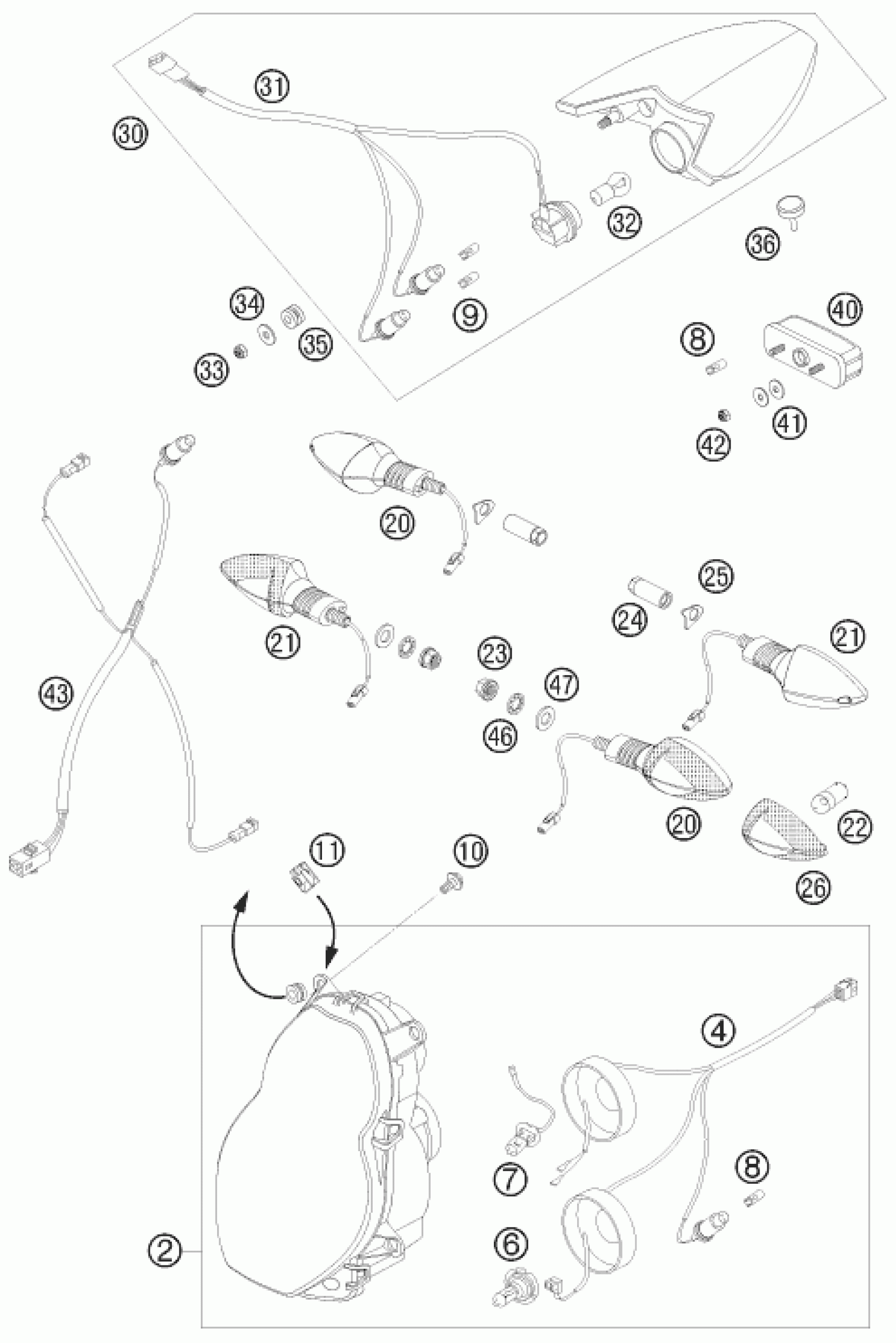

KTM 990 SUPER DUKE BLACK 2008 LIGHTING SYSTEM Diagram

#

Description

Price

2

HEAD LIGHT RIGHT TR. EU 03

60014001000

$241.41

4

HEAD LIGHT WIRING HARN. EU/GB

60014001050

$46.18

6

BULB H7 12V 55W

60014003100

$30.38

7

BULB H3 12V 55W

60014003000

$10.84

8

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

9

BULB RED WR5W 12V

49011435200

$5.65

10

HH collar screw M6x13 TX30

0024060136

$3.08

11

RANGE CHANGE METAL NUT M6 INOX

54603048300

$5.23

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

22

BULB 12V ORANGE (RY10W)

60114027000

$6.63

23

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

24

FLASHER NUT M10X1,25 WS=12

61014030000

$9.44

25

FLASHER WASHER 05

61014031000

$4.11

26

FLASHER LENS L/S R/S TRANSP.06

60114028000

$5.51

30

REAR LIGHT CPL. 07

61014040144

Unavailable

31

CABLE HARNESS REAR PART 07

58611176100

$25.00

32

BULB RED PR21W 12V

60014048100

$9.06

33

Self lock. nut DIN985-M6-A2

0985060003

$2.05

34

Washer DIN9021-A 6.4

0021060003

$2.05

35

rubber grommet 16x10.8x3

58214069051

$5.23

36

Distance rupper airbox 03

60006001021

$2.05

40

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

41

washer DIN 9021 A - 5.3

0021050003

$1.49

42

Self locking nut DIN 985 M5

0985050003

$2.05

43

WIRING HARNESS REAR 07

61111076000

$28.42

46

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

47

washer DIN 125 A 10.5

0125100003

$2.05
