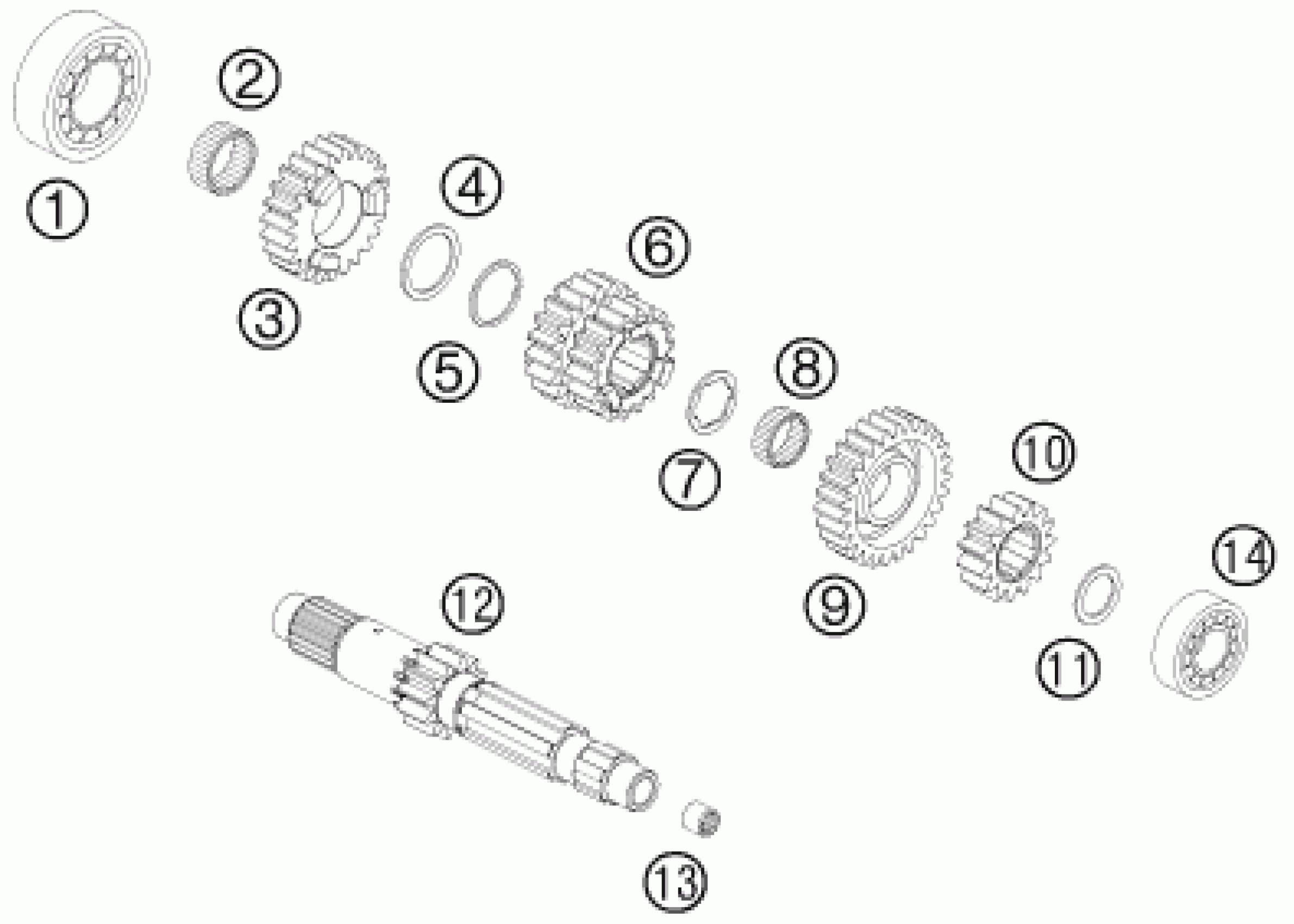

KTM 990 SUPER DUKE BLACK 2008 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

BALL BEARING 6206 C3 J1 NSK

0625062062

$19.63

2

NEEDLE BEAR. K 26-31-13

0405263113

$8.59

3

IDLER 5. GEAR 05

61033005000

$71.45

4

STOP DISK 28,3/35,75/1,5

60033042000

$3.08

5

LOCK RING DIN5417-WS28

0417280150

$1.49

6

SLIDING GEAR 3/4 GEAR 05

61033003000

Unavailable

7

STOP DISK 22,2/30,2/1,5

60033041000

$3.08

8

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

9

IDLER 6. GEAR 05

61033006000

Unavailable

10

2ND GEAR MAINSHAFT 610 2P16-1

61033002100

$27.53

11

STOP DISK 20,2X28X1,5

60033040015

$5.23

11

STOP DISK 20,2/28/1,6

60033040016

$4.11

11

STOP DISK 20,2/28/1,7

60033040017

$4.11

11

STOP DISK 20,2/28/1,8

60033040018

$4.11

11

STOP DISK 20,2/28/1,9

60033040019

$4.11

11

STOP DISK 20,2/28/2,0

60033040020

$4.11

11

STOP DISK 20,2/28/2,1

60033040021

$4.11

11

STOP DISK 20,2/28/2,2

60033040022

$4.11

12

MAIN SHAFT 05

61033001000

$115.28

13

NEEDLE BUSH HK0912 9/13/12 03

0618091312

$11.12

14

BALL BEARING 6204 DU J1 C3

0625062040

$28.98
