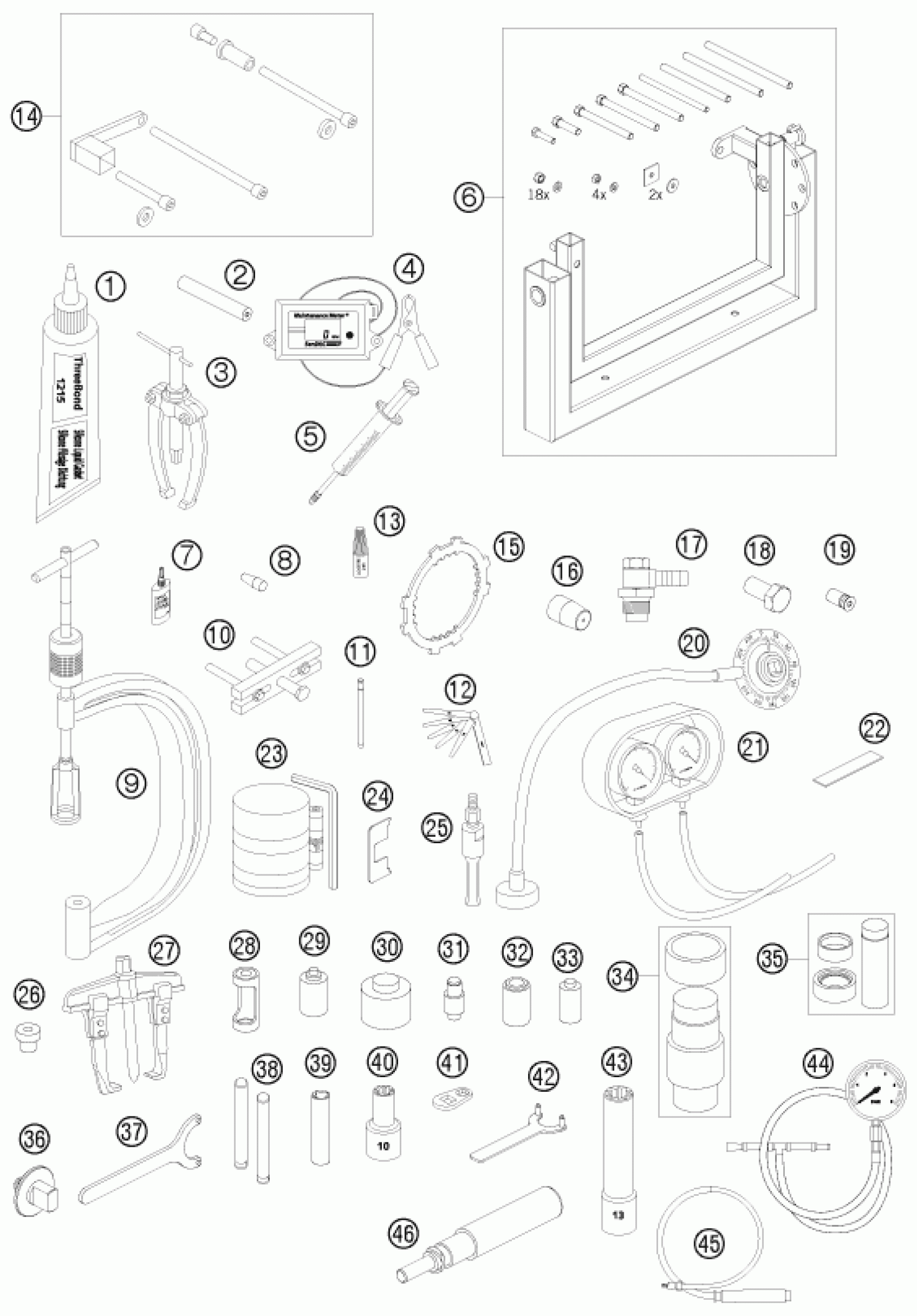

KTM 990 SUPER DUKE BLACK 2008 Special tools (engine) Diagram

#

Description

Price

1

SILICON GASKET THREE-BOND

309098

$28.88

2

ENGINE BLOCKING SCREW

0113080802

$14.13

3

BUSHING EXTRACTOR

15112017000

$179.32

4

REVMETER

45129075000

$56.09

5

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

6

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

7

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

8

MOUNT.SLEEVE F. SH.S.RING WAPU

58529005000

$53.52

9

VALVE SPRING LEVER

59029019000

$415.46

10

EXTRACTOR PRIM. GEAR CPL.

59029021044

$15.30

11

LIMIT PLUG GAUGE F.VALVE GUIDE

59029026006

$32.84

12

FEELER GAUGE SET10,12,15,20,25

59029041000

$16.99

13

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

14

ENGINE BRACKET FOR LC8 03

60029002000

Unavailable

15

BRACKET FOR CLUTCH

60029003000

$49.28

16

MOUNT.SLEEVE F. SH. SEAL RING

60029005000

$43.58

17

ADAPTOR F.OIL PRESSURE GAUGE

60029006000

$54.97

18

FLYWHEEL EXTRACTOR

60029009000

$17.07

19

PUSH SCREW F. FLYWH. EXTRACTOR

60029009010

$36.64

19

PUSH SCREW F. FLYWH. EXTRACTOR

60029009110

$40.89

20

DEGREE DISK 360DEG - 1/2 INCH

60029010000

$583.81

21

SYNCHRONIZER CPL. 2-CYLINDER

60029011000

$474.32

22

PLASTIGAUGE - MEASURING STRIP

60029012000

$28.00

23

PISTON RING COMPRESSOR CPL. 03

60029015000

$108.77

24

SETTING GAGE F. FLOAT LEVEL

60029016000

$25.24

25

INTERN.BEAR.PULLER 28 MM

60029018000

$187.31

26

PRESSURE PUNCH F. CRANKSHAFT

60029031000

$25.52

27

EXTRACTOR PRIM. GEAR

60029033000

$164.93

28

INSERT FOR VALVE SPRING LEVER

60029041000

$31.66

29

SEAL.RING PRESS PUNCH PUSH ROD

60029043010

$21.46

30

SEAL.RING PRESS PUNCH COUNT.SH

60029043020

$27.68

31

PRESS PUNCH SEAL.RING/BEARING

60029043030

$39.28

32

SEAL.RING PRESS PUNCH WAT.PUMP

60029043040

$22.11

33

SEAL.RING PRESS PUNCH BA.SHAFT

60029043050

$15.85

33

PRESS PUNCH WAPU-BEARING

60029043060

$30.23

34

PRESS TOOL FOR MAIN BEARING

60029044050

$174.47

35

PRESS TOOL F. SUPPORT BEARING

60029046028

$59.68

36

BOTTOM PART PRETENSIONING TOOL

60029050000

$97.72

37

HOOK WRENCH PRETENS.TOOL CPL.

60029051000

$97.35

38

SCISSOR GEAR PULLER

60029058000

$89.26

39

SPARK PLUG WRENCH 16MM 1/2INCH

60029073000

$93.58

40

SPECIAL SOCKET F.CYL.-HEAD NUT

60029075000

$148.43

41

WRENCH FOR CYLINDER-HEAD SCREW

60029081000

$85.86

42

HOLDER FOR WATER PUMP WHEEL

60029082000

$32.64

43

SPECIAL SOCKET F. CYLINDER NUT

60029083000

$47.58

44

EFI PRESSURE TESTER

61029094000

$350.28

45

IGNITIONWIRE ADAPTOR

62529093000

$124.44

46

PLUG IN FUSE PISTON PIN

75029035000

$56.14
