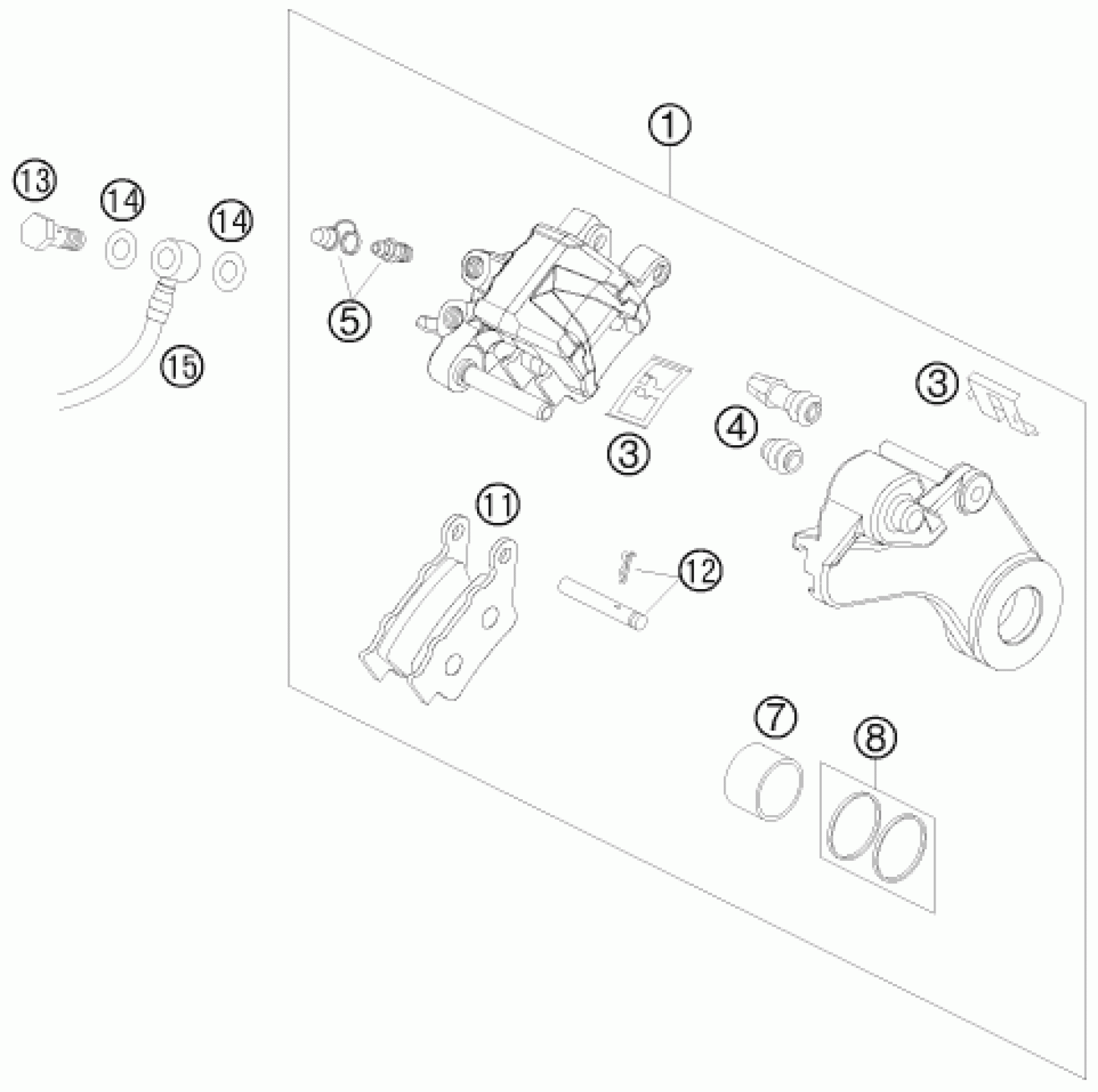

KTM 990 SUPER DUKE BLACK 2008 REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER REAR 05

61013080000

$254.12

3

RETAINING SPRING SET

54613311200

$15.61

4

CUP SET SHORT

54613218000

$23.55

5

BLEEDER SCREW WITH CAP

61013020200

$8.41

7

BRAKE PISTON 32MM

50313083000

$31.97

8

REPAIR KIT SEALING RINGS 32MM

50313081000

$15.98

11

BRAKE PAD REAR TOSHIBA TTH38GF

50313090000

$72.17

12

BOLT SET 05

61013082000

$18.88

13

HOLLOW SCREW M10X1X19

50213025000

$6.54

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

BRAKE PIPE REAR 05

61013072000

$66.48
