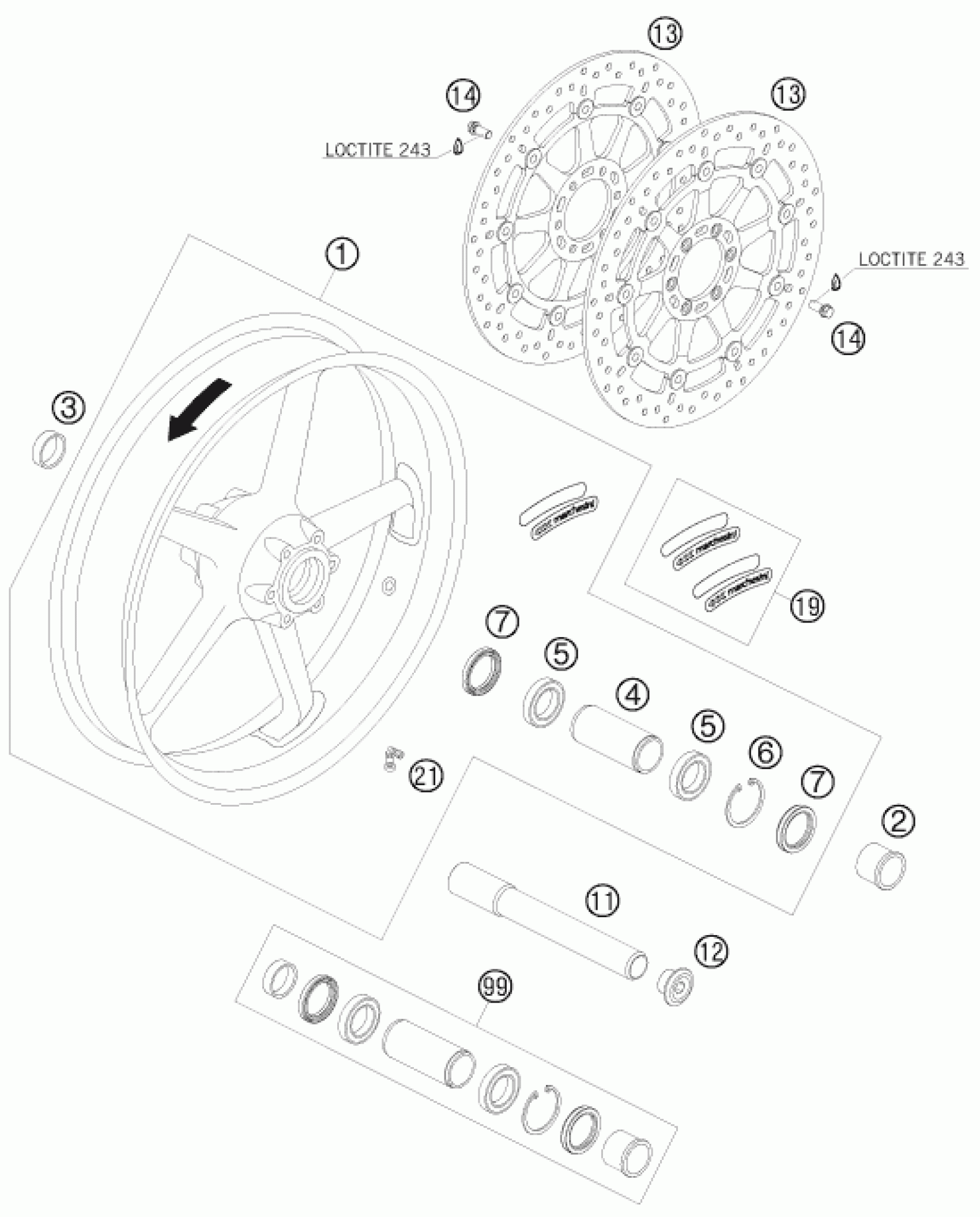

KTM 990 SUPER DUKE BLACK 2008 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL. BLACK 07

6100900104430

Unavailable

2

SPACER BUSH. FR. WHEEL L/S 05

61009012000

Unavailable

3

Spacer bush. fr. whee R/S 03

60009013000

Unavailable

4

Bearing spacing tube, front

61009011000

Unavailable

5

Grooved ball bearing 6906

0625069068

Unavailable

6

LOCK RING DIN0472-48X1,75

0472048175

Unavailable

7

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

11

WHEEL SPINDEL FRONT 05

61009081000

Unavailable

12

AH screw M25X1.5 WS=12 05

61009082000

Unavailable

13

BRAKE DISK FRONT 320MM 05

61009060000

Unavailable

19

STICKER MARCH. 2L/S+2R/S WHITE

00050000120

Unavailable

14

SPECIAL SCREW M8X18 05

61009062018

Unavailable

21

VALVE ANGLED 90° 05

61009076000

Unavailable

99

FRONT WHEEL REP. KIT

61009015000

Unavailable
