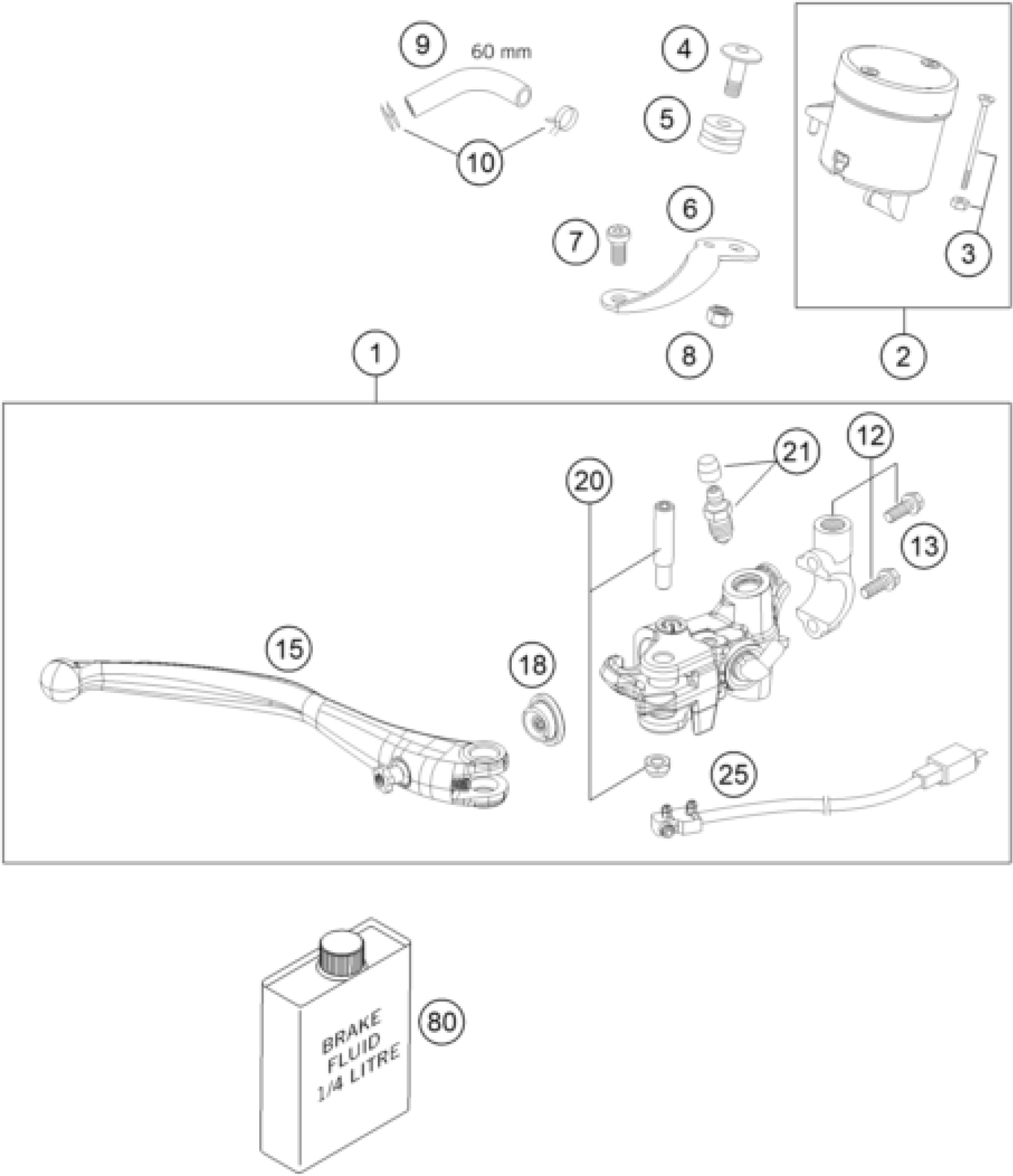

KTM 990 SUPER DUKE BLACK 2008 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HAND BRAKE CYLINDER 05

61013001000

$408.31

2

BRAKE FLUID RESERVOIR CPL.

61013009002

$41.51

3

SCREW + NUT FOR RESERVOIR

61013009003

$17.10

4

SCREW RET.PANEL-RESERVOIR

61013013050

$9.06

5

RUBBER BUSH 05

61013013000

$3.08

6

RET.PANEL FLUID RES. FRONT 05

61013009001

$9.34

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

8

NUT FOR RESERVOIR

61013009004

$3.08

9

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

10

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

12

CLAMP CPL. 05

61013005000

$28.51

13

HH collar screw M6x25 TX30

0025060256

$3.08

15

HAND BRAKE LEVER LOOSE

61013002000

Unavailable

18

RUBBER CUP 05

61013008000

$7.66

20

LEVER SCREW CPL. 05

61013006000

$12.43

21

BLEEDER SCREW WITH CAP

60013020000

$7.38

25

BRAKE LIGHT SWITCH FRONT 05

61011050000

$59.74

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52
