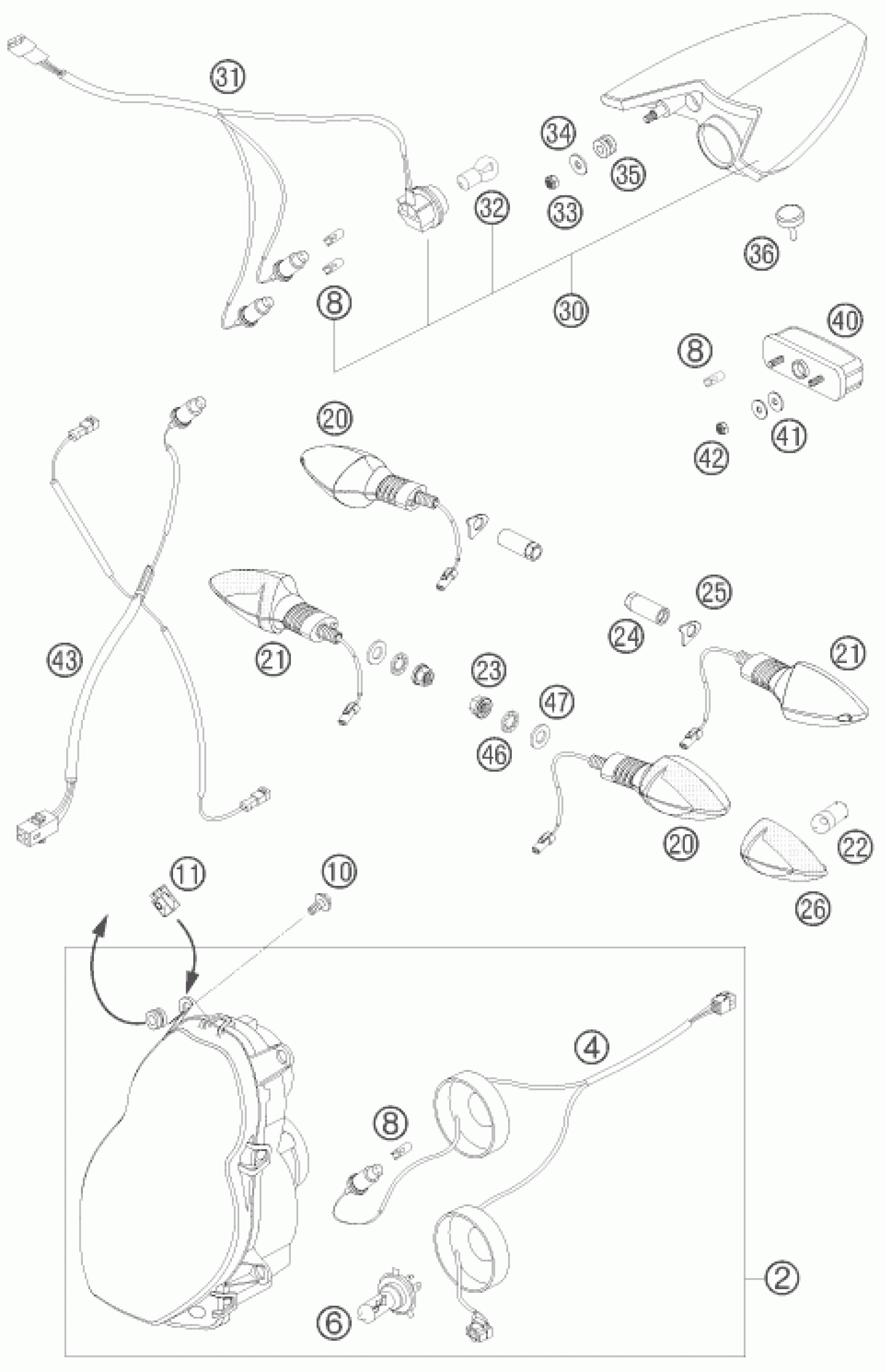

KTM 990 SUPER DUKE ANTHRAZIT 07 <2007> LIGHTING SYSTEM Diagram

#

Description

Price

2

HEAD LIGHT RIGHT TR. USA 03

60014801000

Unavailable

4

HEAD LIGHT WIRING HARN. USA

60014801050

Unavailable

6

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

8

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

10

HH COLLAR SCREW M 6X13 WS=8

0014060133

Unavailable

11

RANGE CHANGE METAL NUT M6 INOX

54603048300

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

23

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

24

FLASHER NUT M10X1,25 WS=12

61014030000

Unavailable

25

FLASHER WASHER 05

61014031000

Unavailable

26

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

30

REAR LIGHT DUKE 05

61014040000

Unavailable

31

CABLE HARNESS REAR PART 05

58611076100

Unavailable

32

BULB 12V 21W

60014048000

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

34

Washer DIN9021-A 6.4

0021060003

Unavailable

35

rubber grommet 16x10.8x3

58214069051

Unavailable

36

Distance rupper airbox 03

60006001021

Unavailable

40

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

41

washer DIN 9021 A - 5.3

0021050003

Unavailable

42

Self locking nut DIN 985 M5

0985050003

Unavailable

43

WIRING HARNESS REAR 07

61111076000

Unavailable

46

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

47

washer DIN 125 A 10.5

0125100003

Unavailable
